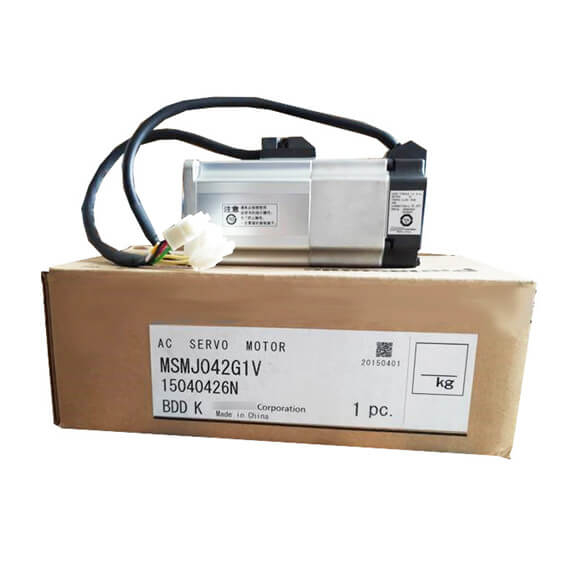

Panasonic Servo Motor MINAS A5 400W Break MSMJ042G1V/MSMD042G1V/G1D



Series#: Panasonic Servomotor



  • Panasonic Servo Motor MINAS A5 400W Break MSMJ042G1V/MSMD042G1V/G1D
  • We can Supply Panasonic electric automation parts,such as Panasonic PLC,Panasonic Servo Motor&Panasonic servo drive,Panasonic VFD,Panasonic Relay and Panasonic Sensor.
  • 100% Original and new,In stock by Panasonic Electric
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs



Availability:
Inquire

Product Description



Series#: Panasonic Servomotor


  • Panasonic Servo Motor MINAS A5 400W Break MSMJ042G1V/MSMD042G1V/G1D

  • We can Supply Panasonic electric automation parts,such as Panasonic PLC,Panasonic Servo Motor&Panasonic servo drive,Panasonic VFD,Panasonic Relay and Panasonic Sensor.


Download A Munual


 Panasonic Servo Motor MINAS A5 AC100 V
Panasonic Servo Motor MINAS A5IP65 MSMD041G1□ MSMD041S1□
Panasonic Servo Motor MINAS A5IP67 – –
 Applicable driver ＊2Model No.A5Ⅱ, A5 series MCD◇T3120
 A5ⅡE, A5E series MCD◇T3120E –
Frame symbol C-frame
Power supply capacity (kVA) 0.9
Rated output (W) 400
Rated torque (N•m) 1.3
Momentary Max. peak torque (N•m) 3.8
Rated current (A(rms)) 4.6
Max. current (A(o-p)) 19.5
Regenerative brake frequency (times/min) Note)1Without option No limit Note)2
DV0P4282 No limit Note)2
Rated rotational speed (r/min) 3000
Max. rotational speed (r/min) 5000
Moment of inertiaof rotor (×10−4 kg•m2)


Without brake

 0.26
 With brake 0.28
Recommended moment of inertia ratio of the load and the rotor Note)3 30 times or less
Rotary encoder specifications Note)5 20-bit Incremental 17-bit Absolute
Resolution per single turn 1048576 131072


Relevant documents
download Panasonic-minas-a5-servomotor-datasheet.pdf

Related Products

Panasonic Servo Motor MINAS A5 400W Break MHMJ042G1V/MHMD042G1V
Panasonic Servo Motor MINAS A5 400W Break MHMJ042G1V/MHMD042G1V

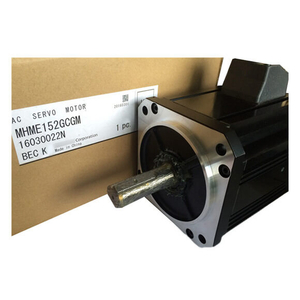

Panasonic Servo Motor MINAS A5 1.5KW MHME152GCGM/MHME152GCG
Panasonic Servo Motor MINAS A5 1.5KW MHME152GCGM/MHME152GCG

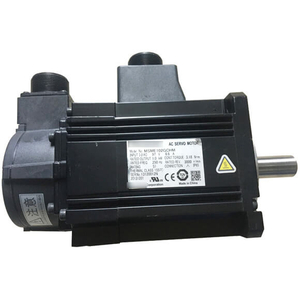

Panasonic Servo Motor MINAS A5 1KW MSME102GCHM/MSME102GCH/G1H/GCDM
Panasonic Servo Motor MINAS A5 1KW MSME102GCHM/MSME102GCH/G1H/GCDM

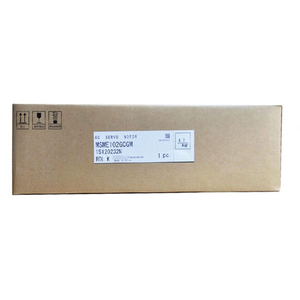

Panasonic Servo Motor MINAS A5 1.5KW MDME152GCG/MDME152GCGM
Panasonic Servo Motor MINAS A5 1.5KW MDME152GCG/MDME152GCGM
Panasonic Servo Motor MINAS A5 1KW MDME102GCH/MDME102GCHM
Panasonic Servo Motor MINAS A5 1KW MDME102GCH/MDME102GCHM

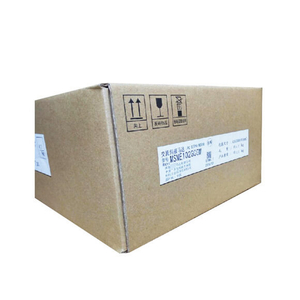

Panasonic Servo Motor MINAS A5 1KW MSME102GCG/MSME102GCGM
Panasonic Servo Motor MINAS A5 1KW MSME102GCG/MSME102GCGM

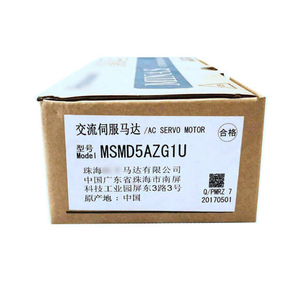

Panasonic Servo Motor MINAS A5 50W MSMD5AZG1U/G1C/MSMJ5AZG1U/G1C
Panasonic Servo Motor MINAS A5 50W MSMD5AZG1U/G1C/MSMJ5AZG1U/G1C

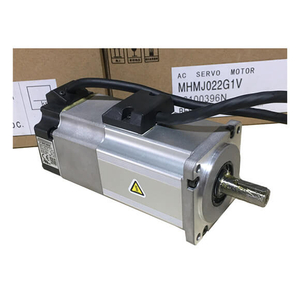

Panasonic Servo Motor MINAS A5 50W Break MHMD5AZG1V/MHMJ5AZG1V/G1D
Panasonic Servo Motor MINAS A5 50W Break MHMD5AZG1V/MHMJ5AZG1V/G1D

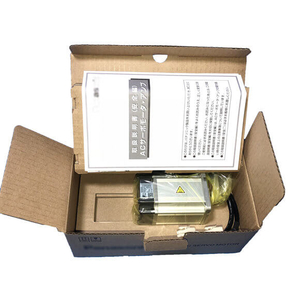

Panasonic Servo Motor MINAS A5 400W MSMJ042G1U/MSMD042G1U
