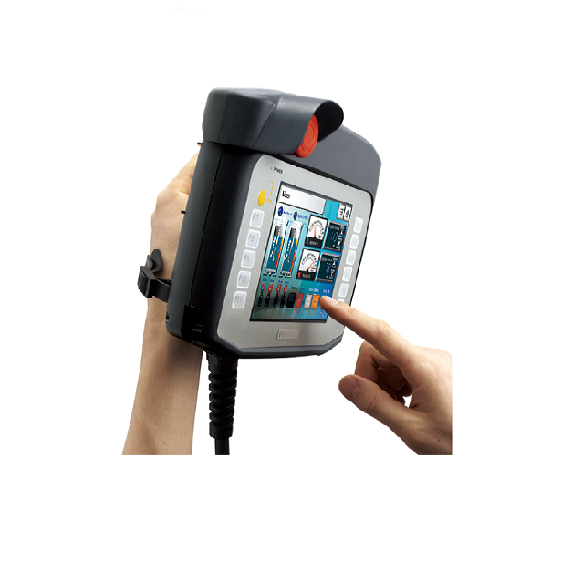

| Specifications | Proface Touch Screen HMI PFXGP4311HTAD*** |
|
| GP-4311HT |
|
| Display Type | TFT Color LCD |
|
| Display Size | 5.7″ |
|
| Resolution | 640 x 480 Pixels (VGA) |
|
| Dot Pitch | W0.18 x H0.18mm [W0.01 X H0.01in.] |
|
| Effective Display Area | 115.2 x 86.4mm (4.54 x 3.4in) |
|
| Display Colors | 65,536 Colors (No blink) / 16,384 Colors (Blink) |
|
| Backlight | White LED (Not user replaceable. When replacement is required, contact your local distributor.) |
|
| Brightness Control | 16 Levels (Adjusted with touch panel) |
|
| Contrast Control | Not Applicable |
|
| Language Fonts | Japanese: 6,962 (JIS Standards 1 & 2) (including 607 non-kanji characters), ANK: 158 (Korean, Traditional Chinese, Simplified Chinese, Thai and Cyrillic can be added from the font setting of the screen editor.) |
|
| Character Sizes | Standard Font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 Pixel Fonts, Stroke Font: 6 to 127 Pixel Fonts |
|
| 8 x 8 Dots | 80 Char. x 60 Rows |
|
| 8 x 16 Dots | 80 Char. x 30 Rows |
|
| 16 x 16 Dots | 40 Char. x 30 Rows |
|
| 32 x 32 Dots | 20 Char. x 15 Rows |
|
| Application Memory | When usin GP-Pro EX: |
|
| Application Memory | Media: FLASH EPROM |
|
| Application Memory | Screen Area *2: 32MB *3 |
|
| Application Memory | User Font Area: 8MB |
|
| Application Memory | Logic Program Area: 132KB (Equivalent to 15,000 steps) |
|
| Application Memory | Free Space: None |
|
| Touch Panel Type | Resistive Film (Analog) |
|
| Touch Panel Resolution | 1,024 x 1,024 |
|
| Touch Panel Service Life | 1 million times or more |
|
