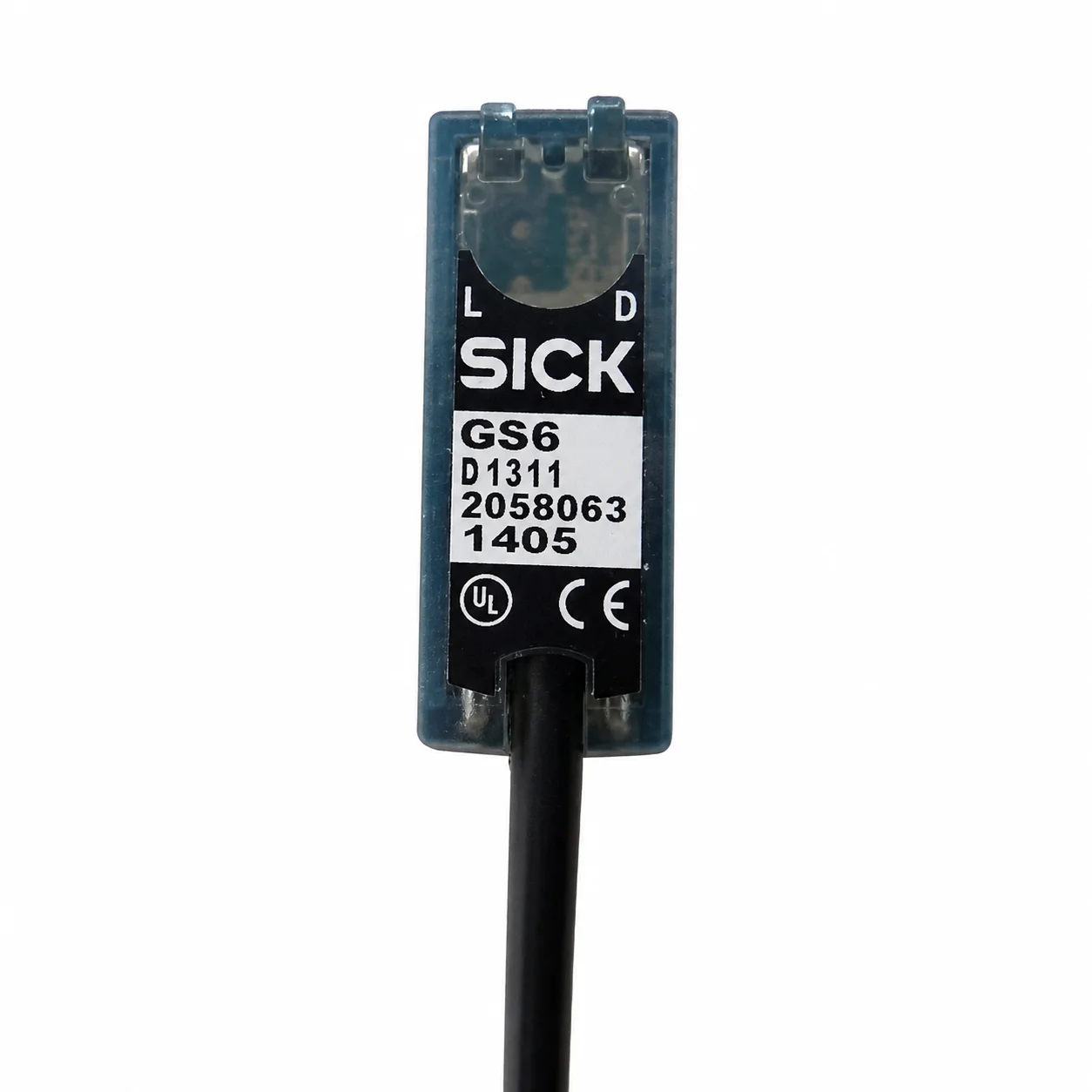

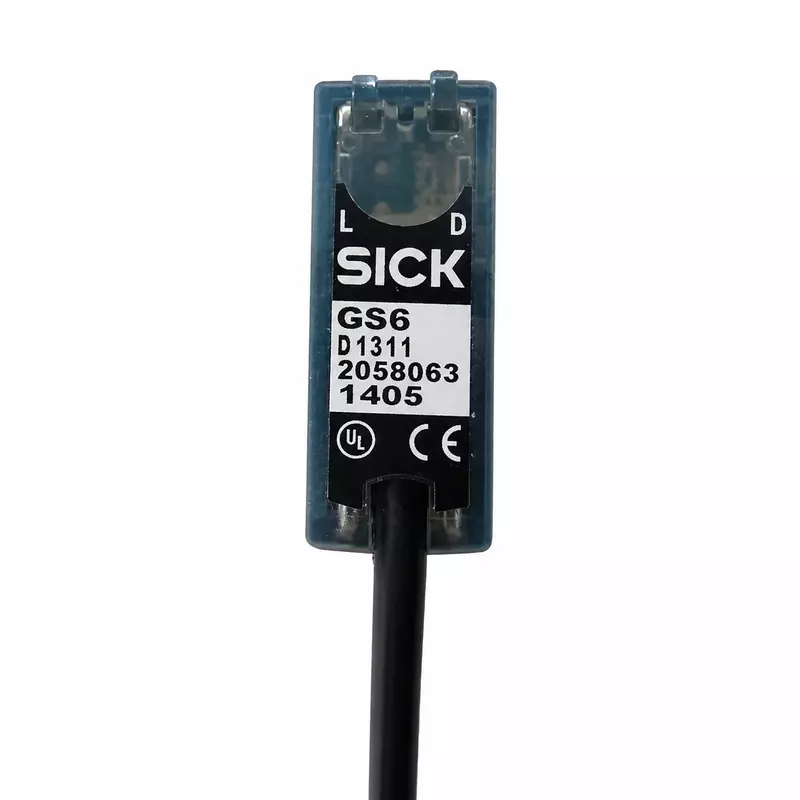

The SICK GS6-D1311 is the emitter (transmitter) unit of the G6 series through-beam photoelectric sensor system. Featuring PinPoint visible red LED technology (650 nm), it provides up to 15m maximum sensing range (10m recommended) when paired with a compatible receiver (GE6 series). The compact rectangular housing (16×39.5×12mm, ABS/PC) with IP67 protection and -25°C to +55°C operating range ensures reliable detection in demanding industrial environments. With ≤500 µs response time and 1000 Hz switching frequency, it handles high-speed applications. Typical uses include conveyor belt object detection, packaging line counting, material handling presence sensing, and automated assembly station part detection.
**Q: Can the GS6-D1311 be used alone?**
A: No, it is an emitter only. A complete through-beam system requires a compatible receiver (e.g., GE6-N1211 or GE6-P1111). The pair is often sold together as GSE6 series (e.g., GSE6-P1112).
**Q: What is the difference between GS6-D1311 and other G6 emitters?**
A: The GS6-D1311 is the standard emitter variant. Different suffixes indicate variations in cable length, connector type, or special features.
