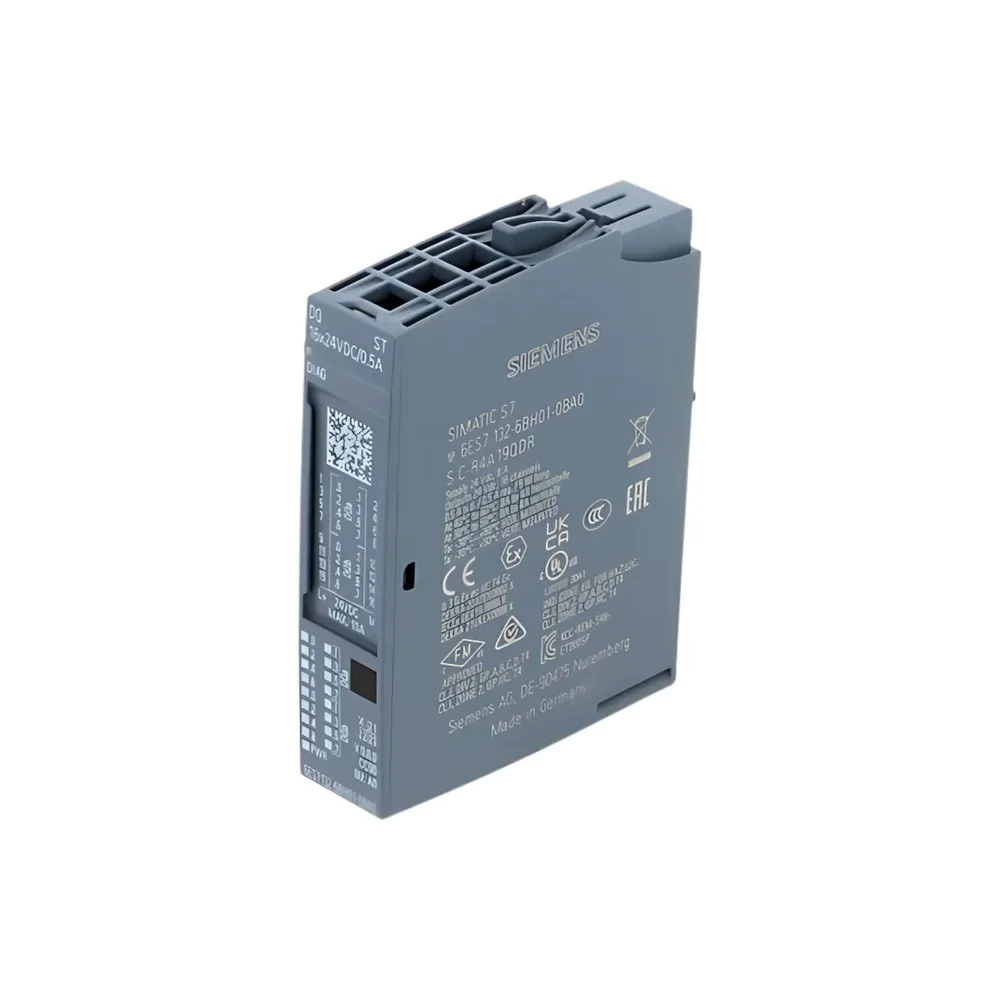

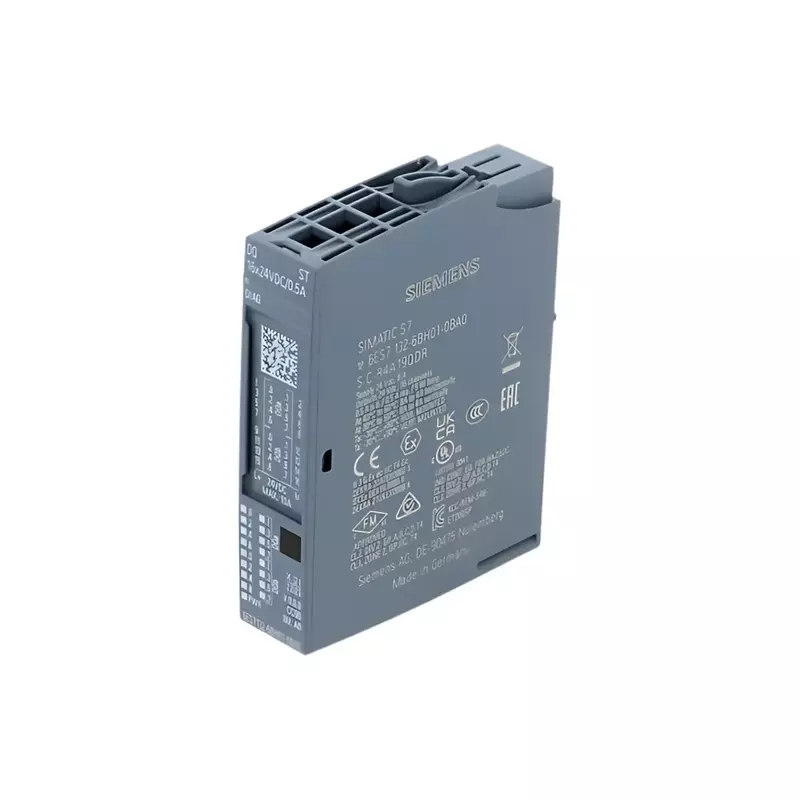

The Siemens SIMATIC ET 200SP DQ 16x24VDC/0.5A HF (6ES7132-6BH01-0BA0) is a high-density digital output module for the ET 200SP distributed I/O system. It provides 16 channels of 24V DC transistor output at 0.5A per channel in a compact form factor, with comprehensive diagnostics and hardware interrupt support. The module supports 1-wire connections and is compatible with Type A0 and A1 Base Units. With double the channel density of the 6BF01 version, it is ideal for applications requiring high-density digital output control in manufacturing automation, conveyor systems, material handling, and packaging machines.
FAQ
Q:Q: How many output channels does this module have?
A: 16 channels - double the density of the 6BF01 8-channel version. Q: What is the output current per channel?
A: 0.5A per channel at 24V DC. Q: What is the difference between 6BH01 and 6BF01?
A: The 6BH01 has 16 channels (high density), while the 6BF01 has 8 channels (compact). Q: What diagnostics are available?
A: Short circuit and wire break detection, plus hardware interrupts. Q: What BaseUnit is required?
A: Type A0 or A1 Base Unit.
