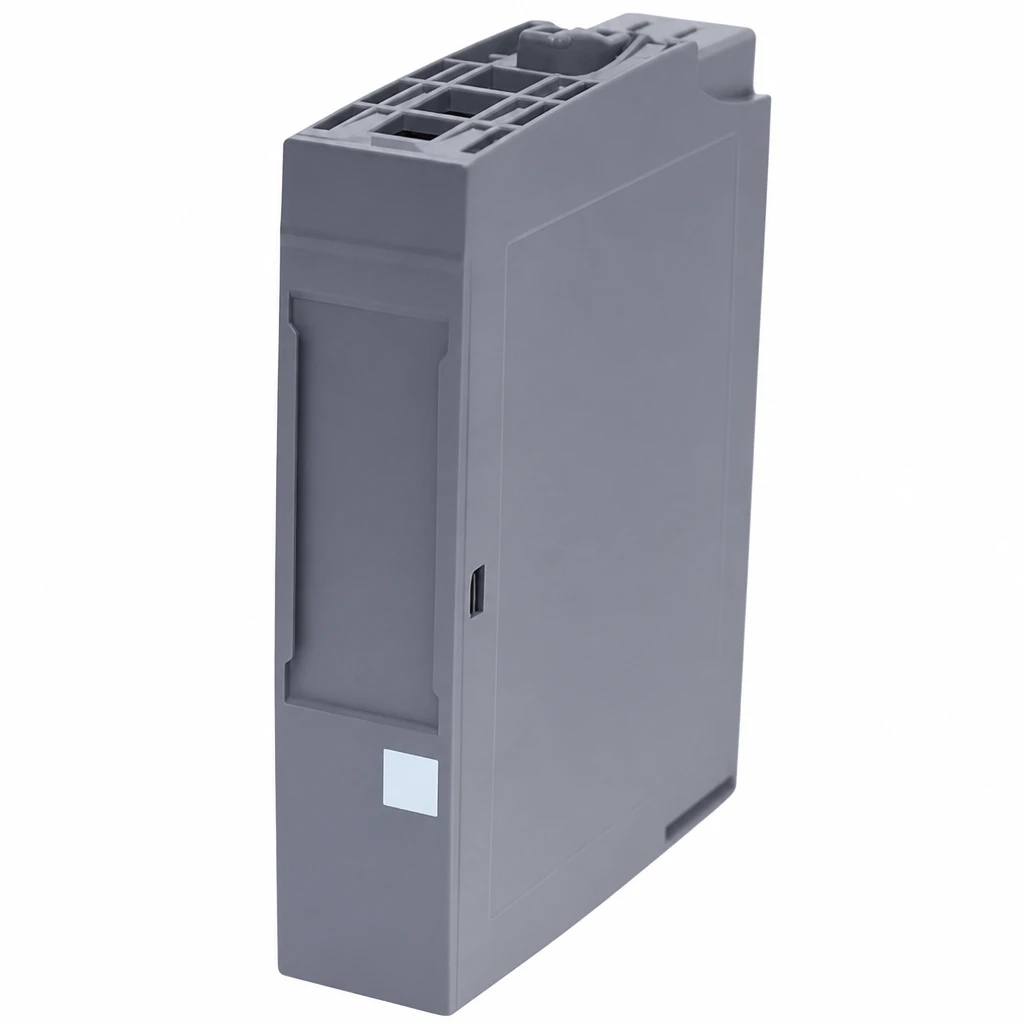

The Siemens SIMATIC ET 200SP TM Count 1x24V (6ES7137-6AA01-0BA0) is a high-speed technology module for the ET 200SP distributed I/O system. It provides 1 channel of high-speed counting at up to 1 MHz frequency, with additional capabilities for frequency measurement, period measurement, and pulse width modulation (PWM) output. The dual output channels support comparison value triggering and PWM signal generation. Ideal for encoder input applications, high-speed counting of fast-moving products on packaging lines, rotational speed measurement, and precise pulse train generation in manufacturing automation and motion control applications.
FAQ
Q:Q: What is the maximum counting frequency?
A: 1 MHz (1,000,000 pulses per second). Q: What functions does this module support?
A: Counting, frequency measurement, period measurement, and PWM output. Q: How many output channels does it have?
A: 2 output channels for comparison values and PWM signal generation. Q: What input voltage is supported?
A: 24V DC push-pull input. Q: What BaseUnit is required?
A: Type A0 or A1 Base Unit.
