6AG1511-1AL03-2AB0
Siemens
Series#: Siemens PLC

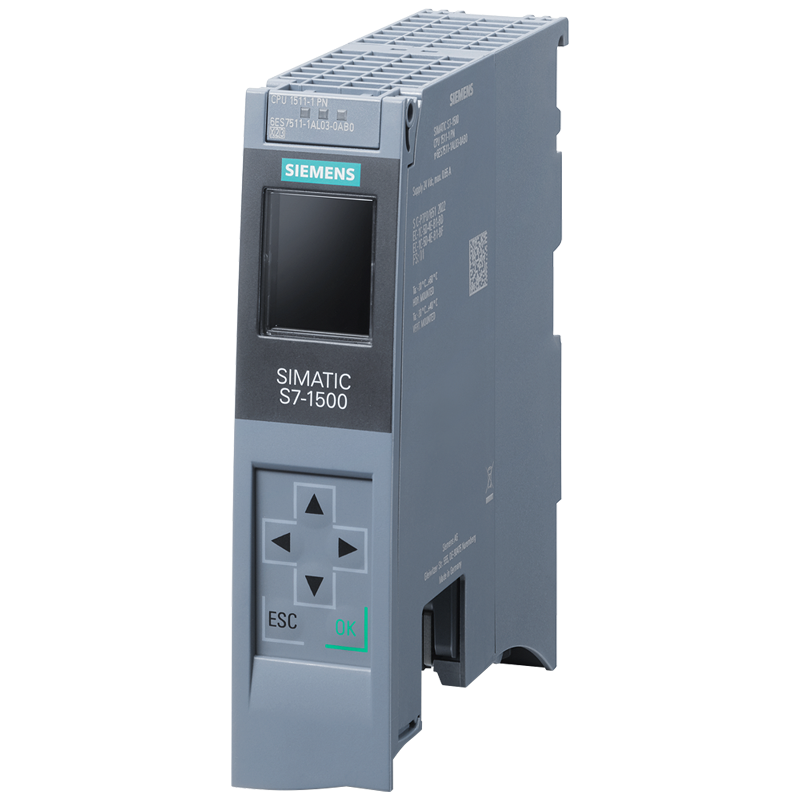

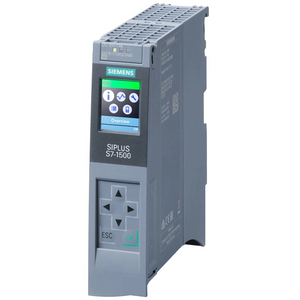

SIPLUS S7-1500 CPU 1511-1 PN based on 6ES7511-1AL03-0AB0 with conformal coating -40...+60 °C . central processing unit with work memory 300 KB for program and 1.5 MB for data, 1st interface: PROFINET IRT with 2-port switch, 25 ns bit performance, SIMATIC Memory Card required
| Item | Details |
|---|---|
| Product type designation | CPU 1511-1 PN |
| Firmware version - FW update possible | Yes |
| based on | 6ES7511-1AL03-0AB0 |
| Product function - I&M data | Yes; I&M0 to I&M3 |
| Product function - Isochronous mode | Yes; Distributed and central; with minimum OB 6x cycle of 500 µs (distributed) and 1 ms (central) |
| Engineering with - STEP 7 TIA Portal configurable/integrated from version | see entry ID: 109746275 |
| Configuration control - via dataset | Yes |
| Display - Screen diagonal [cm] | 3.45 cm |
| Control elements - Number of keys | 8 |
| Control elements - Mode buttons | 2 |
| Supply voltage - Rated value (DC) | 24 V |
| Supply voltage - permissible range, lower limit (DC) | 19.2 V |
| Supply voltage - permissible range, upper limit (DC) | 28.8 V |
| Supply voltage - Reverse polarity protection | Yes |
| Mains buffering - Mains/voltage failure stored energy time | 5 ms |
| Mains buffering - Repeat rate, min. | 1/s |
| Input current - Current consumption (rated value) | 0.73 A |
| Input current - Current consumption, max. | 0.9 A |
| Input current - Inrush current, max. | 1.15 A; Rated value |
| Input current - I⊃2;t | 0.5 A⊃2;·s |
| Power - Infeed power to the backplane bus | 10 W |
| Power - Power consumption from the backplane bus (balanced) | 5.5 W |
| Power loss - Power loss, typ. | 7.5 W |
| Memory - Number of slots for SIMATIC memory card | 1 |
| Memory - SIMATIC memory card required | Yes |
| Item | Details |
|---|---|
| integrated (for program) | 300 kbyte |
| integrated (for data) | 1.5 Mbyte |
| Item | Details |
|---|---|
| Plug-in (SIMATIC Memory Card), max. | 32 Gbyte |
| Item | Details |
|---|---|
| maintenance-free | Yes |
| Item | Details |
|---|---|
| for bit operations, typ. | 25 ns |
| for fixed point arithmetic, typ. | 42 ns |
| for floating point arithmetic, typ. | 170 ns |
| Number of elements (total) | 4 000; Blocks (OB, FB, FC, DB) and UDTs |
| Item | Details |
|---|---|
| Number range | 1 ... 60 999; subdivided into: number range that can be used by the user: 1 ... 59 999, and number range of DBs created via SFC 86: 60 000 ... 60 999 |
| Size, max. | 1.5 Mbyte; For DBs with absolute addressing, the max. size is 64 KB |
| Item | Details |
|---|---|
| Number range | 0 ... 65 535 |
| Size, max. | 300 kbyte |
| Item | Details |
|---|---|
| Number range | 0 ... 65 535 |
| Size, max. | 300 kbyte |
| Item | Details |
|---|---|
| Size, max. | 300 kbyte |
| Number of free cycle OBs | 100 |
| Number of time alarm OBs | 20 |
| Number of delay alarm OBs | 20 |
| Number of cyclic interrupt OBs | 20; With minimum OB 3x cycle of 250 µs |
| Number of process alarm OBs | 50 |
| Number of DPV1 alarm OBs | 3 |
| Number of isochronous mode OBs | 2 |
| Number of technology synchronous alarm OBs | 2 |
| Number of startup OBs | 100 |
| Number of synchronous error OBs | 2 |
| Number of diagnostic alarm OBs | 1 |
| Item | Details |
|---|---|
| per priority class | 24 |
| Item | Details |
|---|---|
| S7 counter - Number | 2 048 |
| S7 counter - Retentivity - adjustable | Yes |
| IEC counter - Number | Any (only limited by the main memory) |
| IEC counter - Retentivity - adjustable | Yes |
| S7 times - Number | 2 048 |
| S7 times - Retentivity - adjustable | Yes |
| IEC timer - Number | Any (only limited by the main memory) |
| IEC timer - Retentivity - adjustable | Yes |
| Item | Details |
|---|---|
| Retentive data area (incl. timers, counters, flags), max. | 256 kbyte; in total; available retentive memory for bit memories, timers, counters, DBs, and technology data (axes): 216 KB |
| Extended retentive data area (incl. timers, counters, flags), max. | 1.5 Mbyte; When using PS 6 0W 24/48/60 V DC HF |
| Item | Details |
|---|---|
| Size, max. | 16 kbyte |
| Number of clock memories | 8; 8 clock memory bit, grouped into one clock memory byte |
| Item | Details |
|---|---|
| Retentivity adjustable | Yes |
| Retentivity preset | No |
| Item | Details |
|---|---|
| per priority class, max. | 64 kbyte; max. 16 KB per block |
| Item | Details |
|---|---|
| Number of IO modules | 2 048; max. number of modules / submodules |
| I/O address area - Outputs | 32 kbyte; All outputs are in the process image per integrated IO subsystem |
| I/O address area - Inputs (volume) | 8 kbyte |
| I/O address area - Outputs (volume) | 8 kbyte |
| per CM/CP - Inputs (volume) | 8 kbyte |
| per CM/CP - Outputs (volume) | 8 kbyte |
| Subprocess images - Number of subprocess images, max. | 32 |
| Item | Details |
|---|---|
| Number of distributed IO systems | 32; A distributed I/O system is characterized not only by the integration of distributed I/O via PROFINET or PROFIBUS communication modules, but also by the connection of I/O via AS-i master modules or links (e.g. IE/PB-Link) |
| Number of DP masters - Via CM | 4; A maximum of 4 CMs/CPs (PROFIBUS, PROFINET, Ethernet) can be inserted in total |
| Number of IO Controllers - integrated | 1 |
| Number of IO Controllers - Via CM | 4; A maximum of 4 CMs/CPs (PROFIBUS, PROFINET, Ethernet) can be inserted in total |
| Rack - Modules per rack, max. | 32; CPU + 31 modules |
| Rack - Number of lines, max. | 1 |
| PtP CM - Number of PtP CMs | the number of connectable PtP CMs is only limited by the number of available slots |
| Item | Details |
|---|---|
| Clock - Type | Hardware clock |
| Clock - Backup time | 6 wk; At 40 °C ambient temperature, typically |
| Clock - Deviation per day, max. | 10 s; Typ.: 2 s |
| Operating hours counter - Number | 16 |
| Clock synchronization - supported | Yes |
| Clock synchronization - in AS, master | Yes |
| Clock synchronization - in AS, device | Yes |
| Clock synchronization - on Ethernet via NTP | Yes |
| Item | Details |
|---|---|
| Number of PROFINET interfaces | 1 |
| 1. Interface - Interface types - RJ 45 (Ethernet) | Yes; X1 |
| 1. Interface - Interface types - Number of ports | 2 |
| 1. Interface - Interface types - integrated switch | Yes |
| 1. Interface - Protocols - IP protocol | Yes; IPv4 |
| 1. Interface - Protocols - PROFINET IO Controller | Yes |
| 1. Interface - Protocols - PROFINET IO Device | Yes |
| 1. Interface - Protocols - SIMATIC communication | Yes |
| 1. Interface - Protocols - Open IE communication | Yes; Optionally also encrypted |
| 1. Interface - Protocols - Web server | Yes |
| 1. Interface - Protocols - Media redundancy | Yes |
| Item | Details |
|---|---|
| Media redundancy | only via 1st interface (X1) |
| MRP | Yes; MRP Automanager according to IEC 62439-2 Edition 2.0, MRP Manager; MRP Client |
| MRP interconnection, supported | Yes; as MRP ring node according to IEC 62439-2 Edition 3.0 |
| MRPD | Yes; Requirement: IRT |
| Switchover time on line break, typ. | 200 ms; For MRP, bumpless for MRPD |
| Number of stations in the ring, max. | 50 |
| Item | Details |
|---|---|
| PG/OP communication | Yes; encryption with TLS V1.3 pre-selected |
| S7 routing | Yes |
| Data record routing | Yes |
| S7 communication, as server | Yes |
| User data per job, max. | See online help (S7 communication, user data size) |
| Item | Details |
|---|---|
| TCP/IP | Yes |
| TCP/IP - Data length, max. | 64 kbyte |
| TCP/IP - several passive connections per port, supported | Yes |
| ISO-on-TCP (RFC1006) | Yes |
| ISO-on-TCP (RFC1006) - Data length, max. | 64 kbyte |
| UDP | Yes |
| UDP - Data length, max. | 2 kbyte; 1 472 bytes for UDP broadcast |
| UDP - UDP multicast | Yes; max. 78 multicast circuits |
| DHCP | Yes |
| DNS | Yes |
| SNMP | Yes |
| DCP | Yes |
| LLDP | Yes |
| Encryption | Yes; Optional |
| Item | Details |
|---|---|
| HTTP | Yes; Standard and user pages |
| HTTPS | Yes; Standard and user pages |
| Item | Details |
|---|---|
| Runtime license required | Yes; "Small" license required |
| OPC UA Client | Yes; Data Access (registered Read/Write), Method Call |
| OPC UA Client - Application authentication | Yes |
| OPC UA Client - Security policies | Available security policies: None, Basic128Rsa15, Basic256Rsa15, Basic256Sha256 |
| OPC UA Client - User authentication | "anonymous" or by user name & password |
| OPC UA Client - Number of connections, max. | 4 |
| OPC UA Client - Number of nodes of the client interfaces, recommended max. | 1 000 |
| OPC UA Client - Number of elements for one call of OPC_UA_NodeGetHandleList/OPC_UA_ReadList/OPC_UA_WriteList, max. | 300 |
| OPC UA Client - Number of elements for one call of OPC_UA_NameSpaceGetIndexList, max. | 20 |
| OPC UA Client - Number of elements for one call of OPC_UA_MethodGetHandleList, max. | 100 |
| OPC UA Client - Number of simultaneous calls of the client instructions for session management, per connection, max. | 1 |
| OPC UA Client - Number of simultaneous calls of the client instructions for data access, per connection, max. | 5 |
| OPC UA Client - Number of registerable nodes, max. | 5 000 |
| OPC UA Client - Number of registerable method calls of OPC_UA_MethodCall, max. | 100 |
| OPC UA Client - Number of inputs/outputs when calling OPC_UA_MethodCall, max. | 20 |
| OPC UA Server | Yes; Data Access (Read, Write, Subscribe), Method Call, Alarms & Condition (A&C), Custom Address Space |
| OPC UA Server - Application authentication | Yes |
| OPC UA Server - Security policies | available security policies: None, Basic128Rsa15, Basic256Rsa15, Basic256Sha256, Aes128Sha256RsaOaep, Aes256Sha256RsaPss |
| OPC UA Server - User authentication | "anonymous" or by user name & password |
| OPC UA Server - GDS support (certificate management) | Yes |
| OPC UA Server - Number of sessions, max. | 32 |
| OPC UA Server - Number of accessible variables, max. | 50 000 |
| OPC UA Server - Number of registerable nodes, max. | 10 000 |
| OPC UA Server - Number of subscriptions per session, max. | 50 |
| OPC UA Server - Sampling interval, min. | 100 ms |
| OPC UA Server - Publishing interval, min. | 200 ms |
| OPC UA Server - Number of server methods, max. | 20 |
| OPC UA Server - Number of inputs/outputs per server method, max. | 20 |
| OPC UA Server - Number of monitored items, recommended max. | 4 000; for 1 s sampling interval and 1 s send interval |
| OPC UA Server - Number of server interfaces, max. | 10 of each "Server interfaces" / "Companion specification" type and 20 of the type "Reference namespace" |
| OPC UA Server - Number of nodes for user-defined server interfaces, max. | 15 000 |
| Alarms and Conditions | Yes |
| Alarms and Conditions - Number of program alarms | 100 |
| Alarms and Conditions - Number of alarms for system diagnostics | 50 |
| Item | Details |
|---|---|
| MODBUS | Yes; MODBUS TCP |
| Item | Details |
|---|---|
| Number of login stations for message functions, max. | 32 |
| Program alarms | Yes |
| Number of configurable program messages, max. | 5 000; Program messages are generated by the "Program_Alarm" block, ProDiag or GRAPH |
| Number of loadable program messages in RUN, max. | 2 500 |
| Number of simultaneously active program alarms - Number of program alarms | 600 |
| Number of simultaneously active program alarms - Number of alarms for system diagnostics | 100 |
| Number of simultaneously active program alarms - Number of alarms for motion technology objects | 160 |
| Item | Details |
|---|---|
| Joint commission (Team Engineering) | Yes; Parallel online access possible for up to 5 engineering systems |
| Status block | Yes; Up to 8 simultaneously (in total across all ES clients) |
| Single step | No |
| Number of breakpoints | 8 |
| Status/control - Status/control variable | Yes |
| Status/control - Variables | Inputs/outputs, memory bits, DBs, distributed I/Os, timers, counters |
| Status/control - Number of variables, max. - of which status variables, max. | 200; per job |
| Status/control - Number of variables, max. - of which control variables, max. | 200; per job |
| Forcing - Forcing | Yes |
| Forcing - Forcing, variables | Peripheral inputs/outputs |
| Forcing - Number of variables, max. | 200 |
| Diagnostic buffer - present | Yes |
| Diagnostic buffer - Number of entries, max. | 1 000 |
| Diagnostic buffer - of which powerfail-proof | 500 |
| Traces - Number of configurable Traces | 4; Up to 512 KB of data per trace are possible |
| Item | Details |
|---|---|
| Diagnostics indication LED - RUN/STOP LED | Yes |
| Diagnostics indication LED - ERROR LED | Yes |
| Diagnostics indication LED - MAINT LED | Yes |
| Diagnostics indication LED - STOP ACTIVE LED | Yes |
| Diagnostics indication LED - Connection display LINK TX/RX | Yes |
| Item | Details |
|---|---|
| Motion Control | Yes; Note: The number of technology objects affects the cycle time of the PLC program; selection guide via the TIA Selection Tool |
| Motion Control - Number of available Motion Control resources for technology objects | 1 120 |
| Motion Control - Required Motion Control resources - per speed-controlled axis | 40 |
| Motion Control - Required Motion Control resources - per positioning axis | 80 |
| Motion Control - Required Motion Control resources - per synchronous axis | 160 |
| Motion Control - Required Motion Control resources - per external encoder | 80 |
| Motion Control - Required Motion Control resources - per output cam | 20 |
| Motion Control - Required Motion Control resources - per cam track | 160 |
| Motion Control - Required Motion Control resources - per probe | 40 |
| Motion Control - Positioning axis - Number of positioning axes at motion control cycle of 4 ms (typical value) | 11 |
| Motion Control - Positioning axis - Number of positioning axes at motion control cycle Controller of 8 ms (typical value) | 14 |
| PID_Compact | Yes; Universal PID controller with integrated optimization |
| PID_3Step | Yes; PID controller with integrated optimization for valves |
| PID-Temp | Yes; PID controller with integrated optimization for temperature |
| Counting and measuring - High-speed counter | Yes |
| Item | Details |
|---|---|
| Ambient temperature during operation - horizontal installation, min. | -40 °C; = Tmin (incl. condensation/frost) |
| Ambient temperature during operation - horizontal installation, max. | 60 °C; = Tmax; display: 50 °C, the display is switched off at an operating temperature of typically 50 °C |
| Ambient temperature during operation - vertical installation, min. | -40 °C; = Tmin |
| Ambient temperature during operation - vertical installation, max. | 40 °C; = Tmax; display: 40 °C, at an operating temperature of typically 40 °C, the display is switched off |
| Ambient temperature during storage/transportation - min. | -40 °C |
| Ambient temperature during storage/transportation - max. | 70 °C |
| Altitude during operation relating to sea level - Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Relative humidity - With condensation, tested in accordance with IEC 60068- 2-38, max. | 100 %; RH incl. condensation / frost (no commissioning in bedewed state), horizontal installation |
| Item | Details |
|---|---|
| Coolants and lubricants - Resistant to commercially available coolants and lubricants | Yes; Incl. diesel and oil droplets in the air |
| Use in stationary industrial systems - to biologically active substances according to EN 60721-3-3 | Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request |
| Use in stationary industrial systems - to chemically active substances according to EN 60721-3-3 | Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| Use in stationary industrial systems - to mechanically active substances according to EN 60721-3-3 | Yes; Class 3S4 incl. sand, dust; * |
| Use on ships/at sea - to biologically active substances according to EN 60721-3-6 | Yes; Class 6B2 mold, fungal and dry rot spores (excluding fauna) |
| Use on ships/at sea - to chemically active substances according to EN 60721-3-6 | Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| Use on ships/at sea - to mechanically active substances according to EN 60721-3-6 | Yes; Class 6S3 incl. sand, dust; * |
| Usage in industrial process technology - Against chemically active substances acc. to EN 60654-4 | Yes; Class 3 (excluding trichlorethylene) |
| Usage in industrial process technology - Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04 | Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil) |
| Remark | * The supplied plug covers must remain in place over the unused interfaces during operation! |
| Item | Details |
|---|---|
| Coatings for printed circuit board assemblies acc. to EN 61086 | Yes; Class 2 for high reliability |
| Protection against fouling acc. to EN 60664-3 | Yes; Type 1 protection |
| Military testing according to MIL-I-46058C, Amendment 7 | Yes; Discoloration of coating possible during service life |
| Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC- CC-830A | Yes; Conformal coating, Class A |
| Item | Details |
|---|---|
| Programming language - FBD | Yes |
| Programming language - STL | Yes |
| Programming language - SCL | Yes |
| Programming language - GRAPH | Yes |
| Know-how protection - User program protection/password protection | Yes |
| Know-how protection - Copy protection | Yes |
| Know-how protection - Block protection | Yes |
| Access protection - protection of confidential configuration data | Yes |
| Access protection - Password for display | Yes |
| Access protection - Protection level: Write protection | Yes |
| Access protection - Protection level: Read/write protection | Yes |
| Access protection - Protection level: Complete protection | Yes |
| programming / cycle time monitoring / header - lower limit | adjustable minimum cycle time |
| programming / cycle time monitoring / header - upper limit | adjustable maximum cycle time |

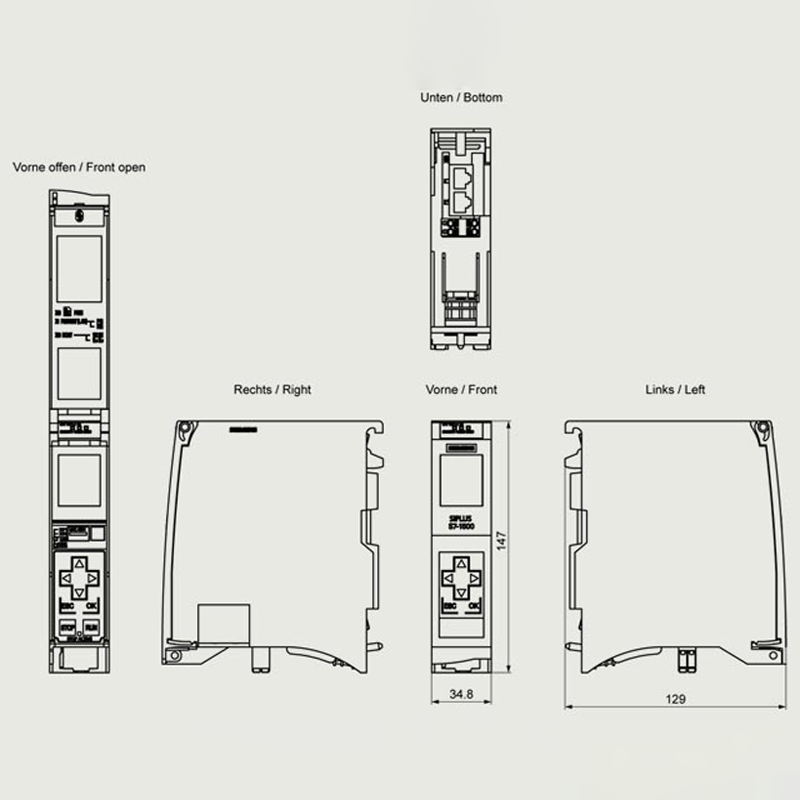

| Dimensions - Width | 35 mm |
| Dimensions - Height | 147 mm |
| Dimensions - Depth | 129 mm |
| Weights - Weight, approx. | 336 g |
