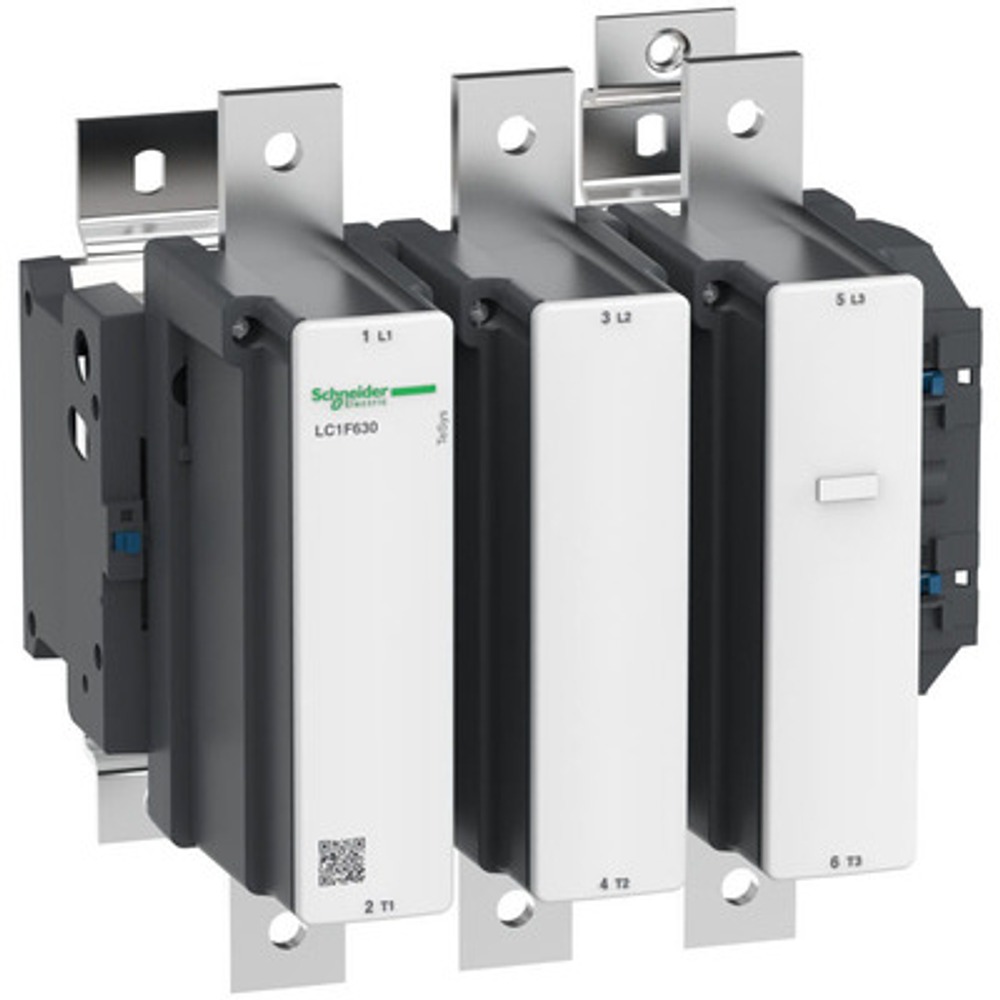

The Schneider Electric LC1-F630M7 is a high-power 3-pole AC contactor from the TeSys F series, rated for 630A (AC-3) controlling motors up to 335kW at 400V. It features a 220V AC coil, bolt-on busbar power connections, and tropicalized (TH) protection treatment. Designed for Direct-On-Line (DOL) motor starting in heavy industrial applications. Note: this model has been discontinued (end: Dec 2023) and is replaced by the TeSys Giga LC1G630KUEN.
Q: What is the Schneider LC1-F630M7?
A: The LC1-F630M7 is a high-power 3-pole AC contactor from Schneider's TeSys F series, rated for 630A (AC-3) controlling motors up to 335kW at 400V with a 220V AC coil.
Q: Is the LC1-F630M7 still in production?
A: No, it was discontinued on 31 December 2023 (end of service: 31 December 2025). The recommended replacement is the LC1G630KUEN from the newer TeSys Giga series.
Q: What is the difference between AC-3 and AC-1 ratings?
A: AC-3 (630A) is for motor starting/stopping. AC-1 (1000A) is for resistive or slightly inductive loads where there is no inrush current.
Q: What are the physical dimensions?
A: 304 × 309 × 255 mm (H×W×D), weighing 18.6 kg. IP20 front face protection with shrouds. Power connections use bolted busbar (2× 60×5 mm) with 58 N·m torque.
