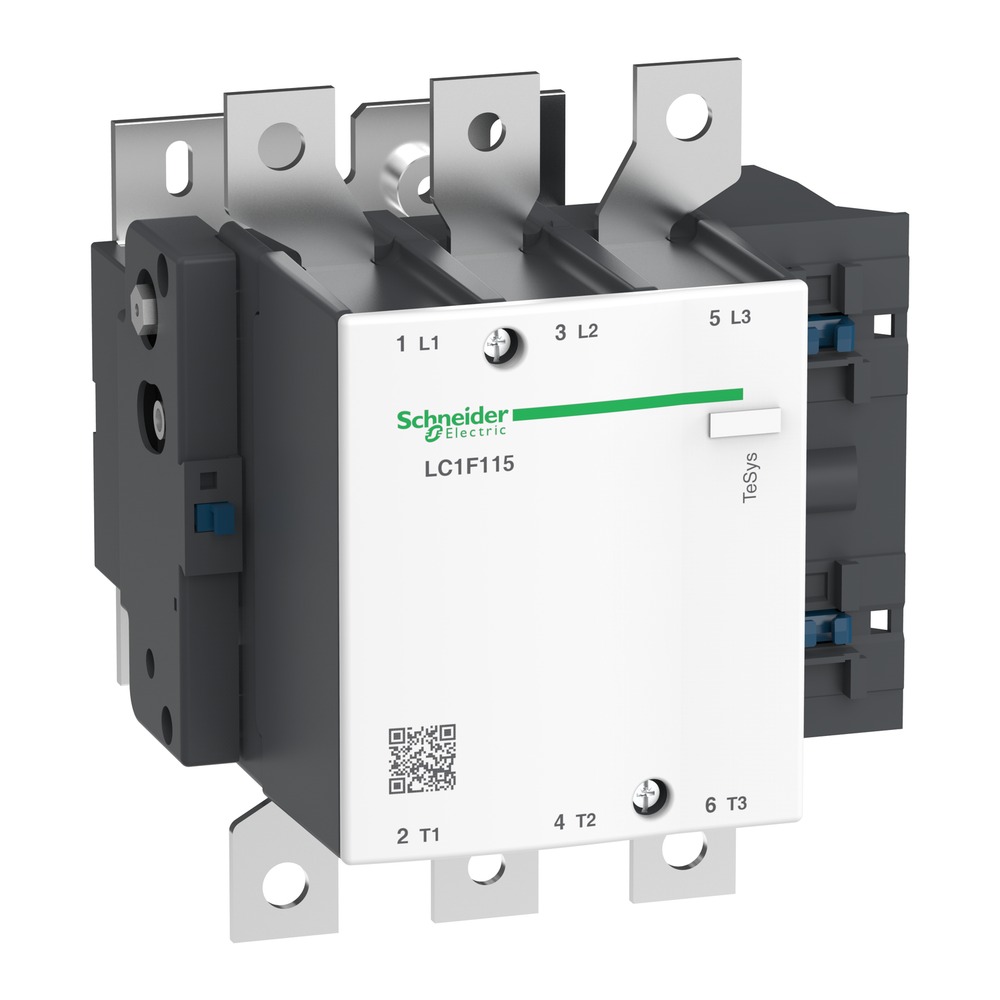

Schneider Electric LC1-F115M7 TeSys F 3-Pole Contactor

Schneider Electric LC1-F115M7

TeSys F Contactor | 115A / 55kW@400V

Feature

Specification

Manufacturer

Schneider Electric

Model Number

LC1-F115M7

Product Series

TeSys F

Poles

3 (3 NO)

Rated Operational Current (Ie) AC-3

115 A (≤55°C, ≤440V AC)

Rated Operational Current AC-1

200 A (<40°C, ≤440V AC)

Control Circuit Voltage (Uc)

220V AC, 40–400 Hz

Rated Operational Voltage (Ue)

≤690V AC 50/60 Hz / ≤460V DC

Rated Insulation Voltage (Ui)

1000V (IEC) / 1500V (VDE 0110 group C)

Rated Impulse Withstand (Uimp)

8 kV

Rated Breaking Capacity

920 A

Rated Making Capacity

1150 A

Motor Power @ 220–230V AC

30 kW

Motor Power @ 380–400V AC

55 kW

Motor Power @ 440V AC

59 kW

Motor Power @ 500V AC

75 kW

Motor Power @ 690V AC

80 kW

AC-4 @ 400V

18.5 kW

Coil Inrush Power

770 VA (cos φ 0.9, 20°C)

Coil Hold-in Power

8.1 VA (cos φ 0.9, 20°C)

Heat Dissipation

5.9–7.2 W

Power Dissipation per Pole

15 W (AC-1) / 5 W (AC-3)

Short-Time Withstand (10s)

1100 A

Mechanical Durability

10 million cycles

Max Operating Rate

2400 cycles/hour

Closing/Opening Time

35 ms / 130 ms

Power Circuit Connections

Bolt-on, bar (20×3 mm), or ring-lugs (95 mm²)

Power Torque

10 N·m

Control Torque

1.2 N·m

Dimensions (H×W×D)

162 × 163.3 × 171 mm

Weight

3.43 kg

IP Rating

IP2X (front face with shrouds)

Operating Temperature

−40°C to +60°C

Storage Temperature

−60°C to +80°C

Altitude

≤3000m (without derating)

Protective Treatment

TH (tropicalized)

Product Status

Phasing out

Replacement

LC1G115KUEN / LC1G115LSEA (TeSys Giga)

Certifications

UL, CCC, ABS, DNV, BV, RINA, LROS, RMRoS, CB, UKCA
