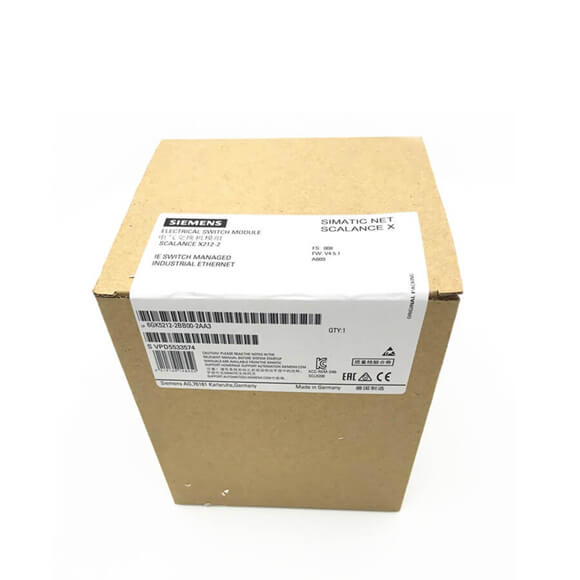

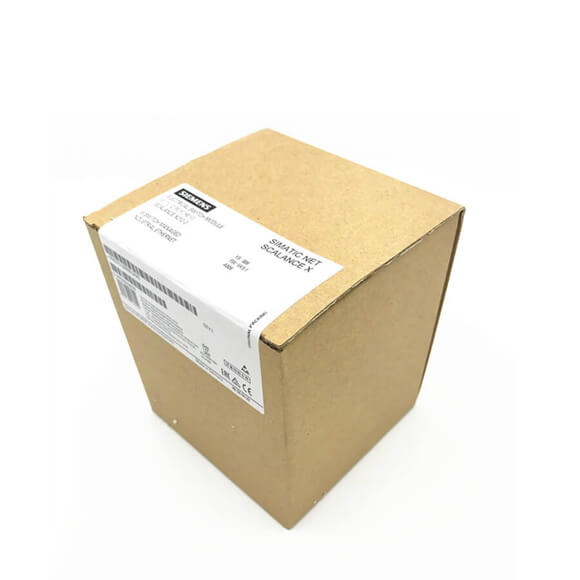

| Article number | 6GK5212-2BB00-2AA3 | 6GK5212-2BC00-2AA3 | 6GK5216-0BA00-2AA3 | 6GK5224-0BA00-2AA3 |
| Product type designation | SCALANCE X212-2 | SCALANCE X212-2LD | SCALANCE X216 | SCALANCE X224 |
| Transfer rate |
|
|
|
|
| Transfer rate | 10 Mbit/s, 100 Mbit/s | 10 Mbit/s, 100 Mbit/s | 10 Mbit/s, 100 Mbit/s | 10 Mbit/s, 100 Mbit/s |
| Interfaces for communication Integrated |
|
|
|
|
| Number of electrical connections |
|
|
|
|
|
● for network components or terminal equipment | 12 | 12 | 16 | 24 |
| Number of 10/100 Mbit/s RJ45 ports Integrated |
|
|
|
|
|
● with securing collar | 12 | 12 | 16 | 24 |
| Number of 100 Mbit/s ST(BFOC) ports |
|
|
|
|
|
● for multimode | 2 |
|
|
|
|
● for single mode (LD) |
| 2 |
|
|
| Number of 100 Mbit/s SC ports |
|
|
|
|
|
● for multimode |
|
|
| 0 |
| Interfaces other |
|
|
|
|
| Number of electrical connections |
|
|
|
|
|
● for signaling contact | 1 | 1 | 1 | 1 |
|
● for power supply | 1 | 1 | 1 | 1 |
|
● for redundant voltage supply | 1 | 1 | 1 | 1 |
| Type of electrical connection |
|
|
|
|
|
● for signaling contact | 2-pole terminal block | 2-pole terminal block | 2-pole terminal block | 2-pole terminal block |
|
● for power supply | 4-pole terminal block | 4-pole terminal block | 4-pole terminal block | 4-pole terminal block |
| design of the removable storage |
|
|
|
|
|
● C-PLUG | Yes | Yes | Yes | Yes |
| Signal inputs/outputs |
|
|
|
|
| Operating voltage of the signaling contacts |
|
|
|
|
|
● at DC Rated value | 24 V | 24 V | 24 V | 24 V |
| Operating current of the signaling contacts |
|
|
|
|
|
● at DC maximum | 0.1 A | 0.1 A | 0.1 A | 0.1 A |
| Supply voltage, current consumption, power loss |
|
|
|
|
| Type of voltage of the supply voltage | DC | DC | DC | DC |
| Supply voltage |
|
|
|
|
|
● external | 24 V | 24 V | 24 V | 24 V |
|
● external minimum | 18 V | 18 V | 18 V | 18 V |
|
● external maximum | 32 V | 32 V | 32 V | 32 V |
| Product component fusing at power supply input | Yes | Yes | Yes | Yes |
| Fuse protection type at input for supply voltage | 1.1 A / 33 V | 1.1 A / 33 V | 1.1 A / 33 V | 1.1 A / 33 V |
| Consumed current maximum | 0.33 A | 0.33 A | 0.24 A | 0.35 A |
| Power loss [W] |
|
|
|
|
|
● at DC at 24 V | 7.92 W | 7.92 W | 5.76 W | 8.4 W |
| Ambient conditions |
|
|
|
|
| Ambient temperature |
|
|
|
|
|
● during operation | -40 … +60 °C | -40 … +60 °C | -40 … +60 °C | -40 … +60 °C |
|
● during storage | -40 … +70 °C | -40 … +70 °C | -40 … +70 °C | -40 … +70 °C |
|
● during transport | -40 … +70 °C | -40 … +70 °C | -40 … +70 °C | -40 … +70 °C |
| Relative humidity |
|
|
|
|
|
● at 25 °C without condensation during operation maximum | 95 % | 95 % | 95 % | 95 % |
| Protection class IP | IP30 | IP30 | IP30 | IP30 |
| Design, dimensions and weights |
|
|
|
|
| Design | compact | compact | compact | compact |
| Width | 120 mm | 120 mm | 120 mm | 180 mm |
| Height | 125 mm | 125 mm | 125 mm | 125 mm |
| Depth | 124 mm | 124 mm | 124 mm | 124 mm |
| Net weight | 1.2 kg | 1.2 kg | 1.2 kg | 1.6 kg |
| Mounting type |
|
|
|
|
|
● 35 mm DIN rail mounting | Yes | Yes | Yes | Yes |
|
● wall mounting | Yes | Yes | Yes | Yes |
|
● S7-300 rail mounting | Yes | Yes | Yes | Yes |
|
● S7-1500 rail mounting | No | No | No | No |
| Product features, product functions, product components general |
|
|
|
|
| Cascading in the case of a redundant ring at reconfiguration time of <\~0.3\~s | 100 | 100 | 100 | 100 |
| Cascading in cases of star topology | any (depending only on signal propagation time) | any (depending only on signal propagation time) | any (depending only on signal propagation time) | any (depending only on signal propagation time) |
