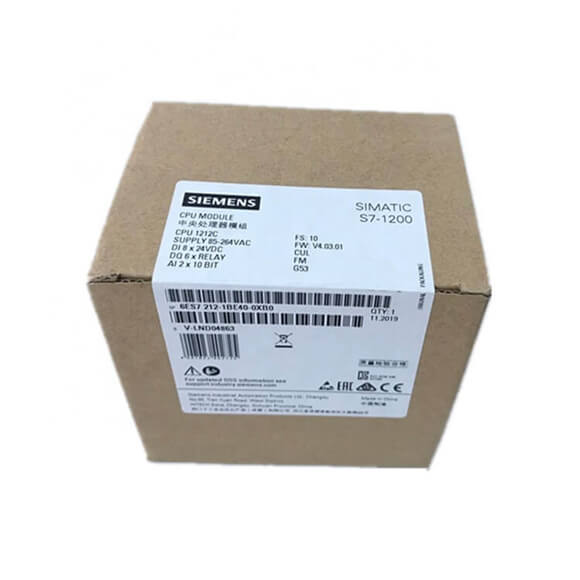

| Article number | 6ES7212-1BE40-0XB0 | 6ES7212-1AE40-0XB0 | 6ES7212-1HE40-0XB0 |
| CPU 1212C, AC/DC/Relay, 8DI/6DO/2AI | CPU 1212C ,DC/DC/DC, 8DI/6DO/2AI | CPU 1212C, DC/DC/Relay, 8DI/6DO/2AI |
| General information |
|
|
|
| Product type designation | CPU 1212C AC/DC/relay | CPU 1212C DC/DC/DC | CPU 1212C DC/DC/relay |
| Firmware version | V4.4 | V4.4 | V4.4 |
| Engineering with |
|
|
|
| ·
● Programming package · | STEP 7 V16 or higher | STEP 7 V16 or higher | STEP 7 V16 or higher |
| for technological functions |
|
|
|
| ·
— parameterizable · | Single phase: 3 @ 100 kHz & 3 @ 30 kHz, differential: 3 @ 80 kHz & 3 @ 30 kHz | Single phase: 3 @ 100 kHz & 3 @ 30 kHz, differential: 3 @ 80 kHz & 3 @ 30 kHz | Single phase: 3 @ 100 kHz & 3 @ 30 kHz, differential: 3 @ 80 kHz & 3 @ 30 kHz |
| Cable length |
|
|
|
| ·
● shielded, max. · | 500 m; 50 m for technological functions | 500 m; 50 m for technological functions | 500 m; 50 m for technological functions |
| OPC UA |
|
|
|
| ·
● Runtime license required · | Yes; “Basic” license required | Yes; “Basic” license required | Yes; “Basic” license required |
| ·
● OPC UA Server · | Yes; Data access (read, write, subscribe), runtime license required | Yes; Data access (read, write, subscribe), runtime license required | Yes; Data access (read, write, subscribe), runtime license required |
| ·
— Application authentication · | Available security policies: None, Basic128Rsa15, Basic256Rsa15, Basic256Sha256 | Available security policies: None, Basic128Rsa15, Basic256Rsa15, Basic256Sha256 | Available security policies: None, Basic128Rsa15, Basic256Rsa15, Basic256Sha256 |
| ·
— User authentication · | “anonymous” or by user name & password | “anonymous” or by user name & password | “anonymous” or by user name & password |
| Number of connections |
|
|
|
| ·
● overall · | 8 connections for open user communication (active or passive): TSEND_C, TRCV_C, TCON, TDISCON, TSEND and TRCV, 8 CPU/CPU connections (Client or Server) for GET/PUT data, 6 connections for dynamic assignment to GET/PUT or open user communication | 8 connections for open user communication (active or passive): TSEND_C, TRCV_C, TCON, TDISCON, TSEND and TRCV, 8 CPU/CPU connections (Client or Server) for GET/PUT data, 6 connections for dynamic assignment to GET/PUT or open user communication | 8 connections for open user communication (active or passive): TSEND_C, TRCV_C, TCON, TDISCON, TSEND and TRCV, 8 CPU/CPU connections (Client or Server) for GET/PUT data, 6 connections for dynamic assignment to GET/PUT or open user communication |
| Weights |
|
|
|
| Weight, approx. | 425 g | 370 g | 385 g |
