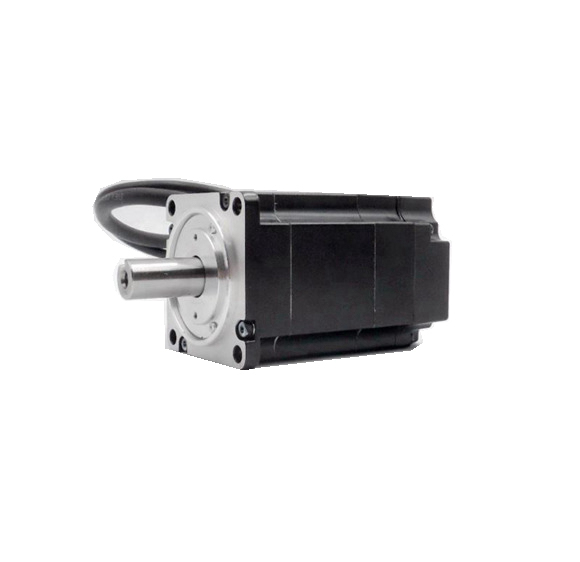

Yaskawa Sigma-7 Servo Motors SGM7J 50W-1.5kW

Yaskawa Sigma-7 Servo Motors SGM7J 50W-1.5kW
We can Supply Yaskawa electric automation parts,such as Yaskawa PLC,Yaskawa Servo Motor&Yaskawa servo drive,Yaskawa VFD,Yaskawa Robot and So on.
Support All seriesl Yaskawa ∑5 SGMGV Rotary Servomotor&ServoPacks,Yaskawa ∑5 SGMJV Rotary Servomotor&ServoPacks,Yaskawa ∑7 SGM7G Rotary Servomotor&ServoPacks,Yaskawa ∑7 SGM7J Rotary Servomotor&ServoPacks
100% Original and new,In stock by Yaskawa Electric
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Product Description

Yaskawa Sigma-7 Servo Motors SGM7J 50W-1.5kW
We can Supply Yaskawa electric automation parts,such as Yaskawa PLC,Yaskawa Servo Motor&Yaskawa servo drive,Yaskawa VFD,Yaskawa Robot and So on.

Yaskawa Sigma-7 Servo Motors Voltage	400 V
Yaskawa Sigma-7 Servo Motors SGM7J-	02D	04D	08D	15D
Time Rating	Continuous
Thermal Class	B
Insulation Resistance	500 VDC, 10 MΩ min.
Withstand Voltage	1,800 VAC for 1 minute
Excitation	Permanent magnet
Mounting	Flange-mounted
Drive Method	Direct drive
Rotation Direction	Counterclockwise (CCW) for forward reference when viewed from the load side
Vibration Class*1	V15
Surrounding Air Temperature	0°C to 40°C (With derating, usage is possible between 40°C and 60°C.)*4
Surrounding Air Humidity	20% to 80% relative humidity (with no condensation)
Installation Site	• Must be indoors and free of corrosive and explosive gases. • Must be well-ventilated and free of dust and moisture. • Must facilitate inspection and cleaning. • Must have an altitude of 1,000 m or less. (With derating, usage is possible between 1,000 m and 2,000 m.)*5 • Must be free of strong magnetic fields.
Storage Environ- ment	Store the Servomotor in the following environment if you store it with the power cable disconnected. Storage temperature: -20°C to 60°C (with no freezing) Storage humidity: 20% to 80% relative humidity (with no condensation)
Vibration Resis- tance*3	49 m/s2
Applicable SERVOPACKs SGD7S-	1R9D	3R5D	5R4D
Applicable SERVOPACKs SGD7W-	2R6D*6	2R6D6 or 5R4D6	2R6D or 5R4D*6	5R4D
Voltage	400 V
Model SGM7J-	02D	04D	08D	15D
