Series #: Delta servo motricium

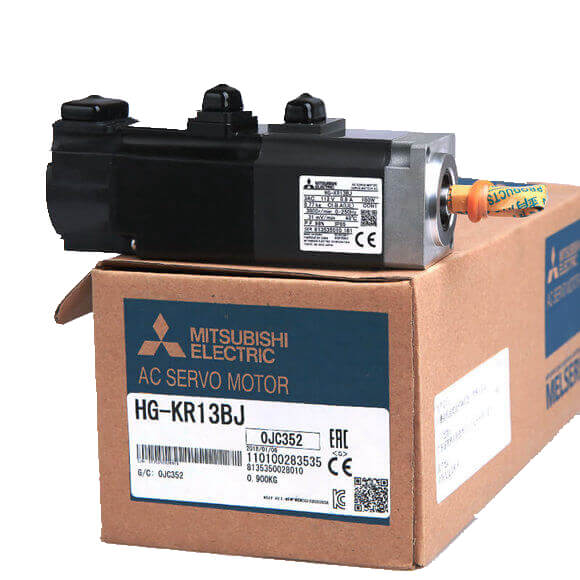

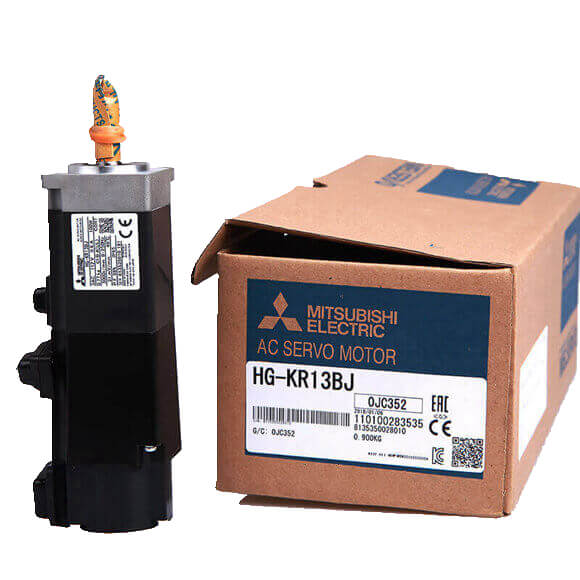

Mitsubishi Melsebo-J4 Servomotor cum confractus 100W HG, KR13BJ
Melsvo-J4 series 50W ad 7KW (HG-KR et HG-M 'series)
Non possumus suppleret Mitsubishi Electric Automation partibus, ut Mitsubishi PLC, Mitsubishi Servo Motor & Mitsubishi servo Coegi, Mitsubishi HMI, Mitsubishi VFD et sic est.
![]()
Download in Munuali
| Mitsubishi servo Motor MR-J4 |
motor |
HG-Mr Series (Ultra-Minimum inertia / Parvus Capacity) |
HG, KR Series (humilis inertia / parva facultatem) |
| Mitsubishi Melservo, J4 Servomotor |
motor |
LIII (b) |
XIII (b) |
XXIII (b) |
XLIII (b) |
LXXIII (b) |
LIII (b) |
XIII (b) |
XXIII (b) |
XLIII (b) |
LXXIII (b) |
| Continua cursus officium (Nota I)
Rated output |
[CY] |
0.05 |
0.1 |
0.2 |
0.4 |
0.75 |
0.05 |
0.1 |
0.2 |
0.4 |
0.75 |
Rated torque |
[N • m] |
0.16 |
0.32 |
0.64 |
1.3 |
2.4 |
0.16 |
0.32 |
0.64 |
1.3 |
2.4 |
| Maxime torque (Nota X) |
[N • m] |
0.48 |
0.95 |
1.9 |
3.8 |
7.2 |
0.56 |
1.1 |
2.2 |
4.5 |
8.4 |
| Rated Volo (Nota I) |
[R / min] |
3000 |
3000 |
| Maximam celeritate (Nota X) |
[R / min] |
6000 |
6000 |
| Instantaneous Literatur celeritate (Nota X) |
[R / min] |
6900 |
6900 |
| Rate ad continua rated torque
Vexillum |
[CY / s] |
15.6 |
33.8 |
46.9 |
114.2 |
97.3 |
5.63 |
13.0 |
18.3 |
43.7 |
45.2 |
| Current Rated |
[A] |
1.0 |
0.9 |
1.5 |
2.6 |
5.8 |
0.9 |
0.8 |
1.3 |
2.6 |
4.8 |
| Maximus current |
[A] |
3.1 |
2.5 |
5.3 |
9.0 |
20 |
3.2 |
2.5 |
4.6 |
9.1 |
17 |
| Enormitas
Ambientium temperatus |
Operatio |
0 ° C ad XL ° (non-glacians) |
| Repono |
|
-15 ° C ad LXX ° C (non-glacians) |
Ambientis humiditas |
Operatio |
X% RH ad LXXX% RH (non-condensing) |
| Repono |
|
X% RH ad XC% RH (non-condensing) |
| Permissible onus ad Shaft (Nota VIII, X)
L |
[M] |
25 |
30 |
40 |
25 |
30 |
40 |
| Radialis |
[N] |
88 |
245 |
392 |
88 |
245 |
392 |
| Inpello |
[N] |
59 |
98 |
147 |
59 |
98 |
147 |
| Missam (Nota III)
Vexillum |
[kg] |
0.34 |
0.54 |
0.91 |
1.4 |
2.8 |
0.34 |
0.54 |
0.91 |
1.4 |
2.8 |
