| Maqola raqami |
6ES7231-5PD32-0XB0 |

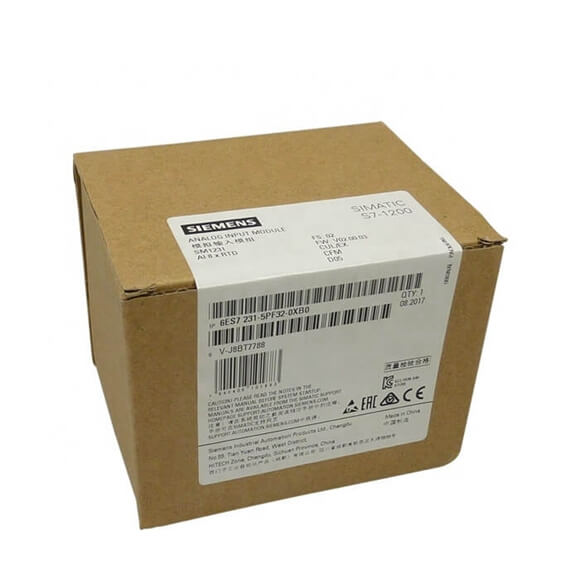

6ES7231-5PF32-0XB0 |
|
S7-1200, analog kirish SM 1231 RTD, 4 AI |
S7-1200, analog kirish SM 1231 RTD, 8 AI |
| Umumiy ma'lumot |
|
|
| Mahsulot turini belgilash |
SM 1231, AI 4×16 bitli RTD |
SM 1231, AI 8×16 bitli RTD |
| Ta'minot kuchlanishi |
|
|
| Nominal qiymat (DC) |
24 V |
24 V |
| Kirish oqimi |
|
|
| Joriy iste'mol, tip. |
40 mA |
40 mA |
| orqa panel avtobusidan 5 V DC, tip. |
80 mA |
80 mA |
| Quvvat yo'qolishi |
|
|
| Quvvat yo'qolishi, tip. |
1,5 Vt |
1,5 Vt |
| Analog kirishlar |
|
|
| Analog kirishlar soni |
4; Qarshilik termometri |
8; Qarshilik termometri |
| kuchlanish kiritish uchun ruxsat etilgan kirish kuchlanishi (qirg'in chegarasi), maks. |
±35 V |
±35 V |
| Haroratni o'lchash uchun texnik birlik sozlanishi |
Selsiy gradus/Farengeyt darajalari |
Selsiy gradus/Farengeyt darajalari |
| Kirish diapazonlari |
|
|
| ·
● Voltaj · |
Yo'q |
Yo'q |
| ·
● Hozirgi · |
Yo'q |
Yo'q |
| ·
● Termojuft · |
Yo'q |
Yo'q |
| ·
● Qarshilik termometri · |
Ha; Qarshilik tipidagi transmitter: Pt10, Pt50, Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni200, Ni500, Ni1000, Cu10, Cu50, Cu100, LG-Ni1000 |
Ha; Qarshilik tipidagi transmitter: Pt10, Pt50, Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni200, Ni500, Ni1000, Cu10, Cu50, Cu100, LG-Ni1000 |
| ·
● Qarshilik · |
Ha; 150 Ō, 300 Ō, 600 Ō |
Ha; 150 Ō, 300 Ō, 600 Ō |
| Kirish diapazonlari (nominal qiymatlar), qarshilik termometri |
|
|
| ·
● Cu 10 · |
Ha |
Ha |
| ·
● Pt 100 · |
Ha |
Ha |
| ·
- Kirish qarshiligi (Pt 100) · |
100 Ō |
100 Ō |
| ·
● Pt 1000 · |
Ha |
Ha |
| ·
- Kirish qarshiligi (Pt 1000) · |
1 000 Ō |
1 000 Ō |
| ·
● Pt 200 · |
Ha |
Ha |
| ·
- Kirish qarshiligi (Pt 200) · |
200 Ō |
200 Ō |
| ·
● Pt 500 · |
Ha |
Ha |
| ·
- Kirish qarshiligi (Pt 500) · |
500 Ō |
500 Ō |
| Og'irliklar |
|
|
| Og'irligi, taxminan. |
220 gr |
220 gr |
