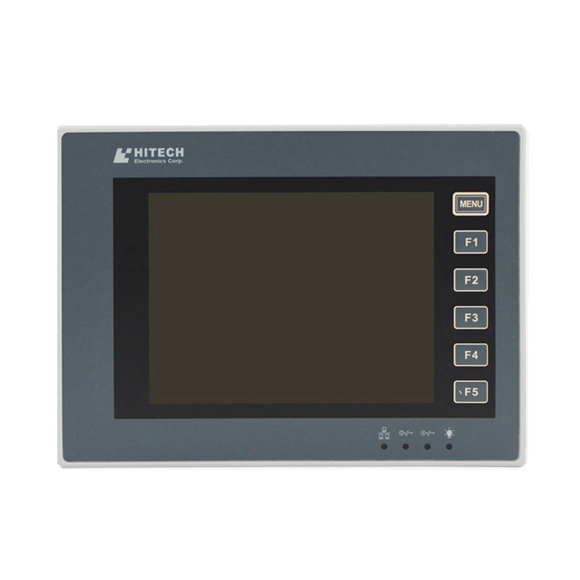

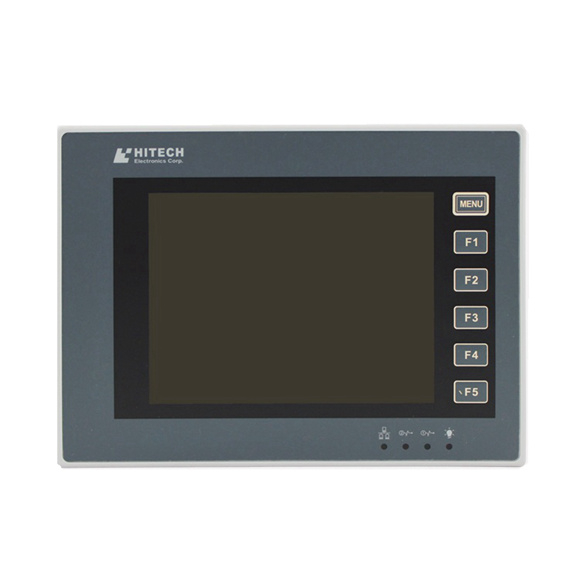

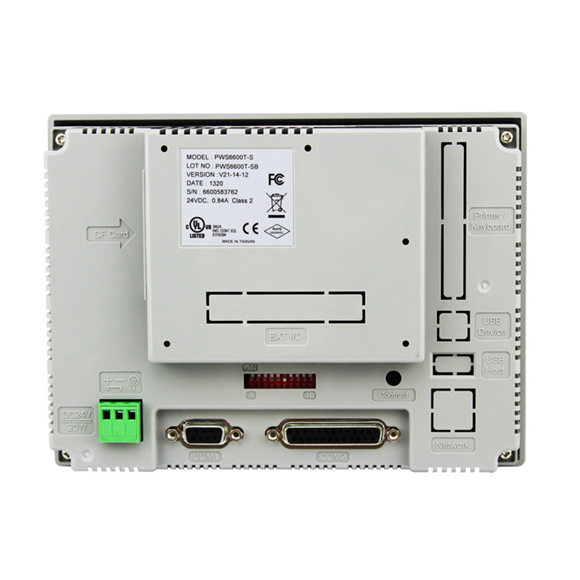

| 5.7″ HITECH (Beijer) PWS operator Panels HMI | PWS6600S-S | PWS6600S-P | PWS6600T-S | PWS6600T-P |
| LCD Type | Mono STN LCD | Color TFT LCD |
| Screen size | 5.7” (diagonal) |
| Display resolution | 320 x 240 |
| Brightness (cd/m2) | 160 | 400 |
|
|
|
| Contrast adjustment | Via touch panel | — |
|
|
|
| Display colors | 16 shades of blue | 256 colors |
| Back light type | LED |
| CPU | 32-bit RISC |
| Back light life | 30,000 hours | 50,000 hours |
| Operation Status LED | PWR, COM1, COM2, Ethernet LEDs |
|
|
| Touch screen | Analog |
|
|
| Touch screen |
|
| (number of times) | > 1,000,000 |
|
|
|
|
| Keypad | 1 Menu key and 5 user-defined function keys (F1—F5) |
| Application Flash ROM | 4MB |
| RAM | 512KB |
| Data/Recipe | — | 512KB | — | 512KB |
| RTC |
|
| (w/rechargeable lithium battery) | Yes |
| — |
| Data storage (CF card) |
|
|
| COM1 | 9-pin female (RS232/RS485) |
|
|
| COM2 | 25-pin female (RS232/RS422/RS485) |
|
|
| COM3 | — |
| USB Host | — |
| USB Device | — | — |
|
|
|
|
|
| Multi-functional port | — | 26-pin connector | — | 26-pin connector |
|
| for printer |
| for printer |
| Ethernet | — | — |
|
|
| External dimensions (mm) | 195.0 (W) x 145.0 (H) x 59.1 (D) |
| Cut-out dimensions (mm) | 185.8 x 135.8 |
| Supply voltage | 24V DC ±15 %, < 20W |
| Front protection | IP65 |
| Certification | CE,UL,FCC |
| Weight (kg) | 0.81 | 0.75
|
