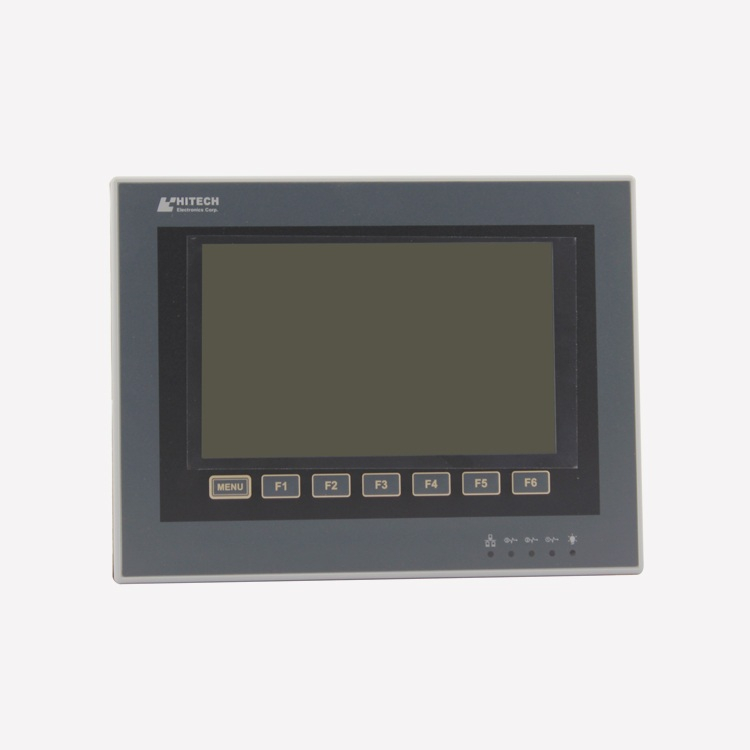

7" HITECH (Beijer) PWS operator Panels HMI PWS6710T-P



Series#: HITECH HMI



  • 7″ HITECH (Beijer) PWS operator Panels HMI PWS6710T-P
  • 7″ HITECH (Beijer)  Touch Screen
  • 64K Colors TFT
  • COM Port x3 CF Card
  • USB Host x2
  • USB Device x1
  • 800 x 480
  • 100% Original and new
  • Large stock for Ready,MOQ 1PCS



Availability:
Inquire

Product Description


Series#: HITECH HMI


  • 7″ HITECH (Beijer) PWS operator Panels HMI PWS6710T-P


Download a Munual


HITECH (Beijer) operator Panels touch screen PWS6710T-P PWS6710T-N
LCD Type Color TFT LCD
Screen size 7” (diagonal)
Display resolution 800×480
Brightness (cd/m2) 400



Contrast adjustment —



Display colors 64K colors
Back light type LED
CPU 32-bit RISC
Back light life 20,000 hours
Operation Status LED PWR, COM1—3, Ethernet LEDs



Touch screen Analog



Touch screen

(number of times) > 1,000,000




1 Menu key and 6 user-defined function keys (F1—F6)
Keypad

Application Flash ROM 8MB
RAM 16MB
Data/Recipe 512KB
RTC

(w/rechargeable lithium battery) Yes



Data storage (CF card) Yes



COM1 9-pin female (RS232/RS485)



COM2 25-pin female (RS232/RS422/RS485)



COM3 9-pin female (RS422/RS485)
USB Host 2
USB Device 1



Multi-functional port —



Ethernet — Yes



External dimensions (mm) 231.0 (W) x 176.0 (H) x 46.8 (D)
Cut-out dimensions (mm) 220.8 x 165.8
Supply voltage 24V DC ±15 %, < 24W
Front protection IP65
Certification CE
Weight (kg) 1.05




Relevant documents
download Beijer-HITECH-HMI-PWS-Series-datasheet.pdf
