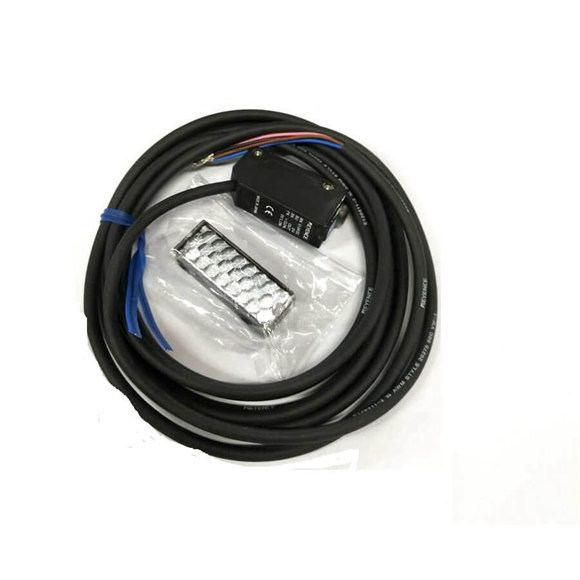

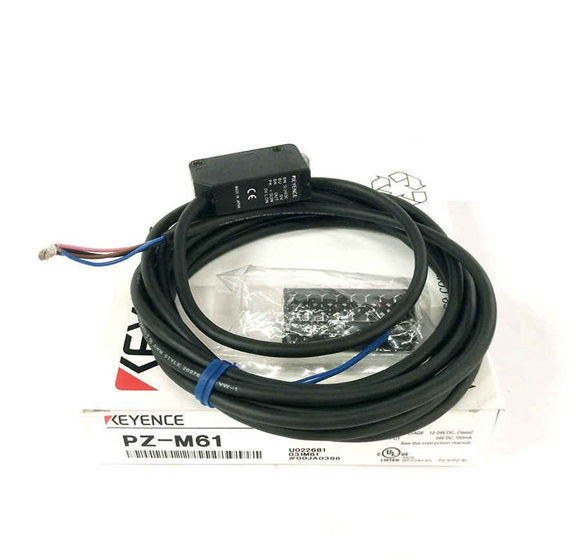

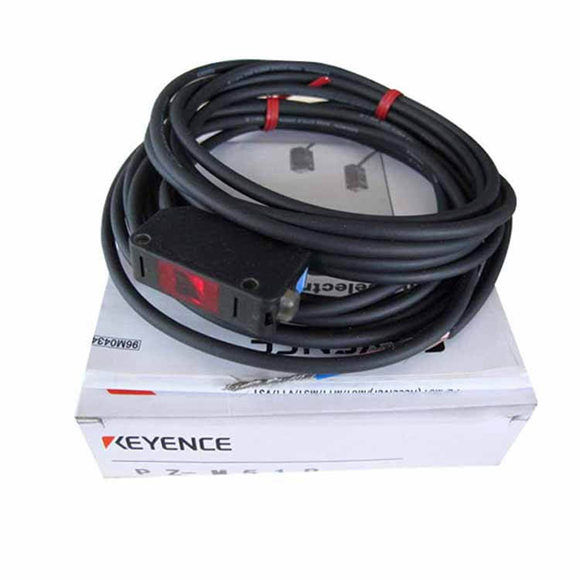

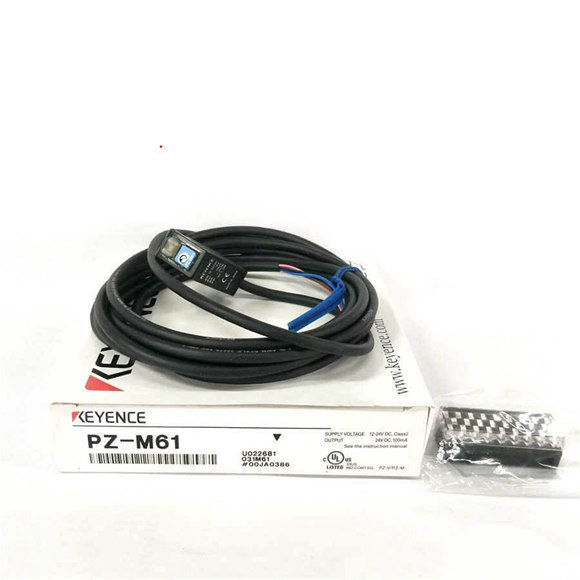

Keyence Photoelectric Sensor PZ-M51 PZ-M61 PZ-M11 PZ-M31 PZ-M71

Series#: Keyence Photoelectric Sensor

Keyence Photoelectric Sensor PZ-M51 PZ-M61 PZ-M11 PZ-M31 PZ-M71
We can Supply all kinds of Keyence sensor parts,such as Keyence Digital Laser Sensors,Keyence Vision Sensors,Keyence Fiber Optic Sensors,Keyence Inductive Proximity Sensors,Keyence Photoelectric Sensors,Keyence Positioning Sensors and So on.
All parts are 100% Original and new in stock by Keyence and fast delivery time within 1 day
100% after sale service and technology Support
MOQ: 1pcs

Availability:



Inquire

Product Description

Series#: Keyence Photoelectric Sensor

Keyence Photoelectric Sensor PZ-M51 PZ-M61 PZ-M11 PZ-M31 PZ-M71
We can Supply all kinds of Keyence sensor parts,such as Keyence Digital Laser Sensors,Keyence Vision Sensors,Keyence Fiber Optic Sensors,Keyence Inductive Proximity Sensors,Keyence Photoelectric Sensors,Keyence Positioning Sensors and So on.

Download a Munual

Model	PZ-M51	PZ-M61	PZ-M11	PZ-M31	PZ-M71	PZ-V11	PZ-V31	PZ-V71
Type	Thrubeam	Polarized retro-reflective.	Intelligent reflective
Output	NPN
Detecting distance	10 m 32.8′*1	0.1 to 1.5 m 0.3′ to 4.9′ (When R-5 reflector is used)*1	5 to 100 mm0.20″ to 3.94″ (100 x 100 mm3.94″ x 3.94″white mat paper)*1	5 to 300 mm0.20″ x 11.81″ (100 x 100 mm3.94″ x 3.94″white mat paper)*1	20 to 900 mm 0.79″ x 35.43″ (300 x 300 mm 11.81″ x 11.81″ white mat paper)*1	5 to 100 mm0.20″ x 3.94″ (100 x 100 mm3.94″ x 3.94″white mat paper)*1	5 to 300 mm0.20″ x 11.81″ (100 x 100 mm3.94″ x 3.94″white mat paper)*1	20 to 900 mm 0.79″ x 35.43″ (300 x 300 mm 11.81″ x 11.81″ white mat paper)*1
Setting distance	―	30 to 100 mm1.18″ to 3.94″ (100 x 100 mm3.94″ x 3.94″white mat paper)	40 to 300 mm1.57″ to 11.81″ (100 x 100 mm3.94″ x 3.94″white mat paper)	150 to 900 mm5.91″ x 35.43″ (300 x 300 mm11.81″ x 11.81″white mat paper)	30 to 100 mm1.18″ to 3.94″ (100 x 100 mm3.94″ x 3.94″white mat paper)	40 to 300 mm1.57″ to 11.81″ (100 x 100 mm3.94″ x 3.94″white mat paper)	150 to 900 mm5.91″ x 35.43″ (300 x 300 mm11.81″ x 11.81″white mat paper)
Light source.	Red LED	Infrared LED	Red LED	Infrared LED
Sensitivity adjustment	1-turn trimmer (230°)	Automatic push button
Response time	1.5 ms max.	2 ms max.	1 ms max.
Operation mode	LIGHT-ON/DARK-ON (switch-selectable)
Indicator lamp	Output and power: Orange LED, Stable operation: Green LED*2	Output: orange LED, stable operation: green LED
Control output	100 mA (24 V) max., Residual voltage: 1 V max.
Digital monitor	―	7-segment, 3-digit red LED
Protection circuit	Reversed polarity, overcurrent protection, surge absorber
Power voltage	12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less
Power consumption	T: 24 mA max. , R: 27 mA max.	34 mA max.	30 mA max.	38 mA max.	37 mA max.	45 mA max.
Enclosure rating	IP67
Ambient light	Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max.
Ambient temperature	-20 to +55 °C -4 to 131 °F (No freezing)
Relative humidity	35 to 85 % RH (No condensation)
Vibration resistance	10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions
Shock resistance	1,000 m/s2, 6 times in each of the X, Y, and Z directions
Case material	Glass-fiber reinforced plastic
Accessories	―	Reflector R-5	―
Weight	T: Approx. 50 g, R: Approx. 50 g (including 2-m 6.6′ cable)	Approx. 55 g (including 2-m 6.6′ cable)	Approx. 55 g (including 2-m 6.6′ cable).	Approx. 70 g (including 2-m 6.6′ cable)	Approx. 55 g (including 2-m 6.6′ cable)	Approx. 70 g (including 2-m 6.6′ cable)
