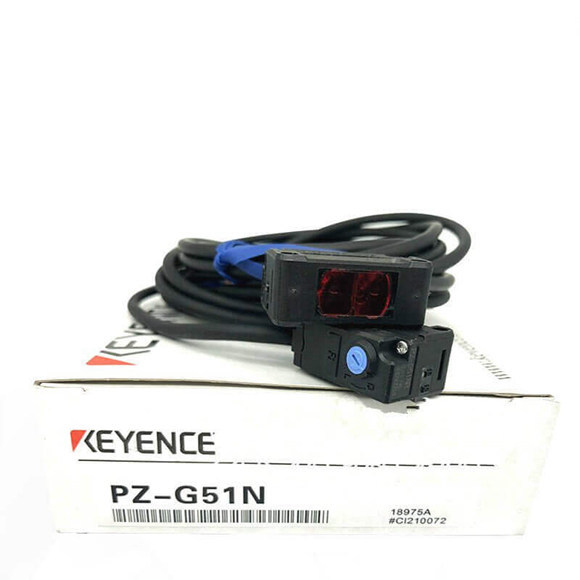

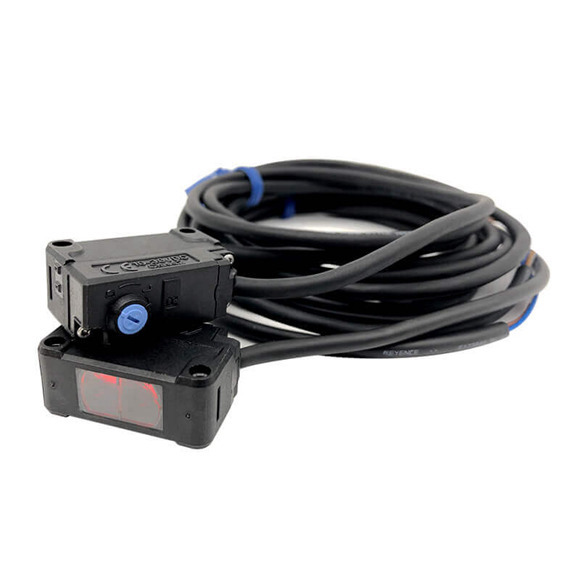

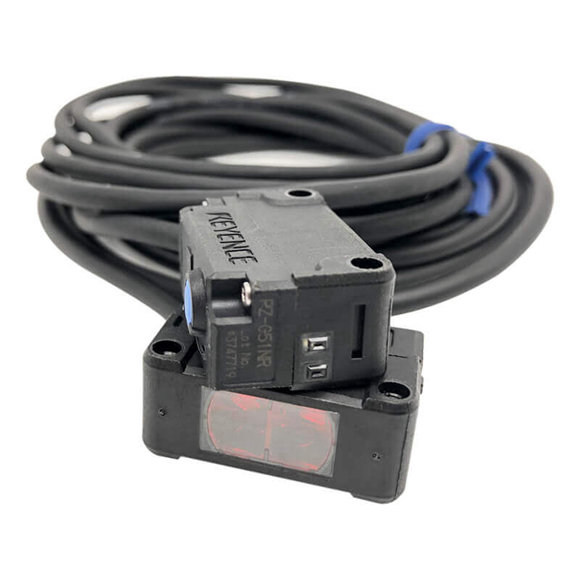

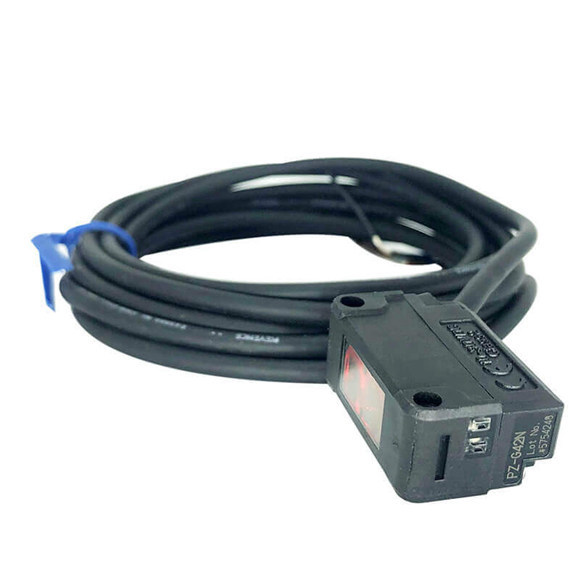

| Model | PZ-G51EP | PZ-G52EP | PZ-G41EP | PZ-G42EP | PZ-G101EP | PZ-G102EP | PZ-G61EP | PZ-G62EP |
| Type | Thrubeam, Standard | Thrubeam, High-power | Diffuse Reflective, Long-range | Diffuse Reflective, Short-range | Diffuse Reflective, Narrow view reflective | Diffuse Reflective, Definite reflective | Retro-reflective, Long-range (with P.R.O. function)*2 | Retro-reflective, Transparent object detection*2 |
| Shape | Rectangular |
|
|
|
|
|
|
|
| Output | PNP |
|
|
|
|
|
|
|
| Cable connection | M12 pigtail
connector *1 |
|
|
|
|
|
|
|
| Detecting distance | 20 m
(65.6′) | 40 m
(131.2′) | 1 m 3.3′
(When detecting
30 x 30 cm
11.81″x11.81″
white paper) | 300 mm
11.81″
(When detecting
10 x 10 cm
3.94″ x 3.94″
white paper) | 200 mm
7.87″ | 5 to 45 mm
0.20″ to 1.77″ | 0.1 to 4.2 m
0.3′ to 13.8′
(When R-2L
reflector
is used) | 0.1 to 1 m
0.3′ to 3.3′
(When R-2L
reflector
is used) |
| Spot diameter | ― | Approx. 5 mm
0.20″ dia.
(At a detecting
distance of
100 mm 3.94″) | Approx. 2 mm
0.08″ dia.
(At a detecting
distance of
40 mm 1.57″) | ― |
|
|
|
|
| Light source | Red LED | Infrared LED x 2 | Red LED | Infrared LED |
|
|
|
|
| Sensitivity adjustment | 1-turn trimmer (230°) |
|
|
|
|
|
|
|
| Response time | 500 µs |
|
|
|
|
|
|
|
| Operation mode | LIGHT-ON/DARK-ON (switch-selectable) |
|
|
|
|
|
|
|
| Indicators (LED) | Power (T): Orange LED
Output (R): Orange LED
Stable operation: Green LED
Light receiving: Red LED | Output: Orange LED,
Stable operation: Green LED |
|
|
|
|
|
|
| Control output | Open collector output, 30 V max., 100 mA max., Residual voltage: 1 V max. |
|
|
|
|
|
|
|
| Protection circuit | Reversed polarity, overcurrent protection, surge absorber |
|
|
|
|
|
|
|
| Interference suppression | Up to 2 units
(When polarization
filters are attached) | Up to 2 units
(with the automatic different frequency function) |
|
|
|
|
|
|
| Tightening torque | Rectangular models (Mounting hole part): 0.5 N m max. |
|
|
|
|
|
|
|
| Power voltage | 10 to 30 VDC, including Ripple (P-P) 10 % |
|
|
|
|
|
|
|
| Current consumption | Transmitter: 20 mA or less, Receiver: 28 mA or less | Transmitter: 25 mA or less, Receiver: 28 mA or less | 34 mA or less |
|
|
|
|
|
| Enclosure rating | IEC: IP67/NEMA: 4A, 6, 12/DIN: IP69K |
|
|
|
|
|
|
|
| Ambient light | Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max. |
|
|
|
|
|
|
|
| Ambient temperature | -20 to +55 °C -4 to 131 °F (No freezing) |
|
|
|
|
|
|
|
| Relative humidity | 35 to 85 % RH (No condensation) |
|
|
|
|
|
|
|
| Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions |
|
|
|
|
|
|
|
| Shock resistance | 1,000 m/s2, 6 times in each of the X, Y, and Z directions |
|
|
|
|
|
|
|
Housing, M18 nut
(threaded models only) | Glass-fiber reinforced PBT |
|
|
|
|
|
|
|
| Lens cover | Polyarylate (PAR) | Acrylic
(PMMA) | Polyarylate (PAR) |
|
|
|
|
|
| Trimmer | Glass-fiber reinforced polyamide (PA) |
|
|
|
|
|
|
|
| Case connection | Screw: Nickel-plated iron and zinc, packing: nitrile butadiene rubber (NBR) |
|
|
|
|
|
|
|
| Cable (cable models only) | Polyvinyl chloride (PVC) |
|
|
|
|
|
|
|
| Accessories | Instruction manual |
|
|
|
|
|
|
|
| Weight | Rectangular M12 pigtail quick disconnect model: Approx. 30 g |
|
|
|
|
|
|
|
