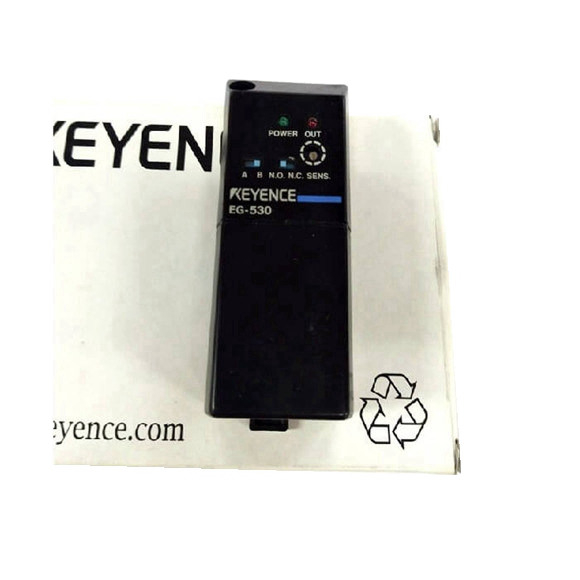

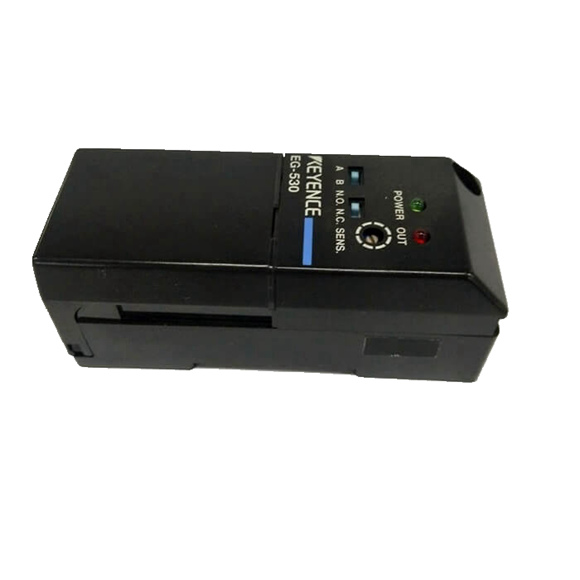

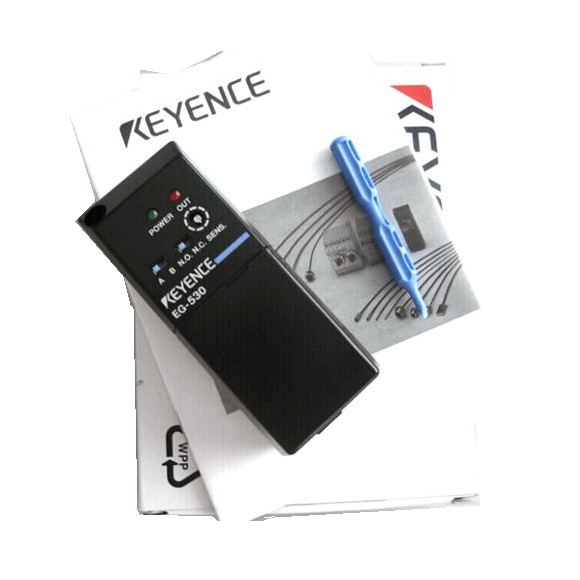

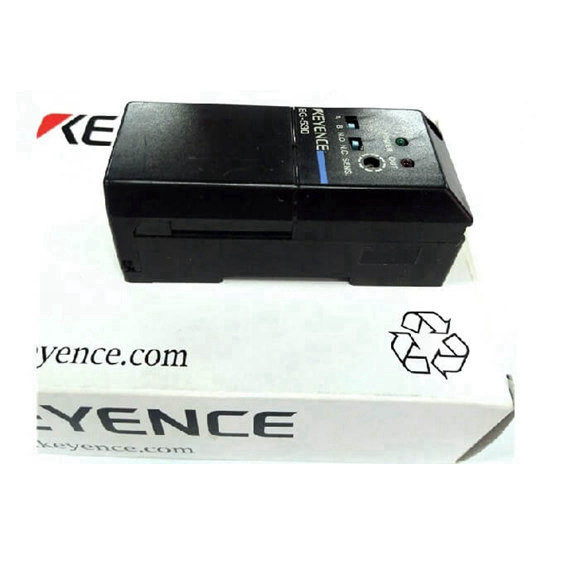

| Model | EG-520 | EG-530 | EG-540*2 | EG-545*2 | EG-547*3 |
| Type | DC | AC | AC adj-dial | AC, tolerance setting*4 |
|
| Sensitivity adjustment | 15-turn trimmer | 10-turn potentiometer dial |
|
|
|
|
Operation mode | N.O./N.C. (switch-selectable) | N.O./N.C. switch-selectable
(contact output only) | External synchronization,
analog voltage
switch-selectable |
|
|
| Operation mode
External synchronization | ― | Equipment (contact output only) | Equipment (both without contacts and with contacts) |
|
|
|
Control output 1 (NPN) | 200 mA max.
(40 V max.) Residual
voltage： 1 V max. | 100 mA max. (40 V max.) Residual voltage： 1 V max. |
|
|
|
| Control output 2 | ― | SPDT, 250 VAC, 2 A max. (resistive load) | DPST (N.O.), 250 VAC,
0.5 A max.
(resistive load) |
|
|
Disconnection alarm output
(NPN) | ― | 100 mA max.
(40 V max.) Residual
voltage： 1 V max. | ― |
|
|
Response
time (Relay contact) | 1 ms |
|
|
|
|
| ― | 10 ms | 3 ms |
|
|
| OFF-delay time | 65 ms (contact output only) | ― |
|
|
|
| Temperature characteristics | 0.08%/°C*1 |
|
|
|
|
|
Power voltage | 11 to 30 VDC, Ripple (P-P) 10 % or less | 12 to 24 VDC, Ripple (P-P) 10 % or less | 110/120/220/240 VAC ±10 %, 50/60 Hz |
|
|
| Power consumption | 100 mA max. | 5 VA max. |
|
|
|
| Ambient temperature | 0 to +50 °C 32 to 122 °F |
|
|
|
|
| Relative humidity | 35 to 85 % RH (No condensation) |
|
|
|
|
| Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions |
|
|
|
|
| Weight | Approx. 110 g | Approx. 75 g | Approx. 330 g | Approx. 350 g | Approx. 390 g |
