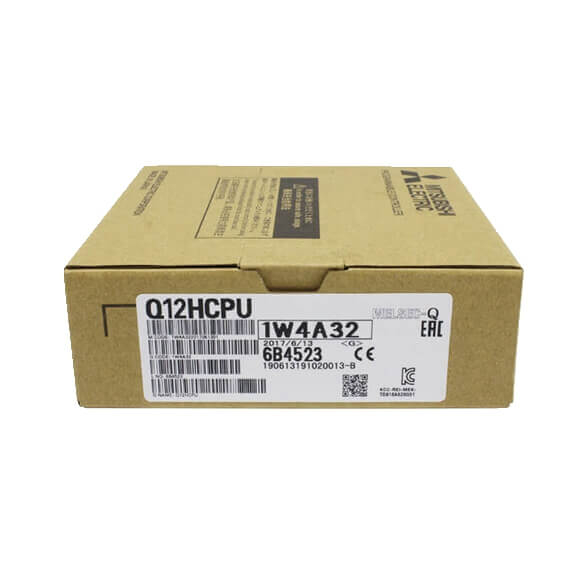

| Mitsubishi PLC CPU Module Q Series | Q02CPU | Q02HCPU | Q06HCPU | Q12HCPU | Q25HCPU |
| Control method | Stored program cyclic operation |
|
|
|
|
| I/O control mode | Refresh |
|
|
|
|
|
Program language (sequence control language) | • Relay symbol language (ladder)
• Logic symbolic language (list) • MELSAP3 (SFC), MELSAP-L • Function block • Structured text (ST) |
|
|
|
|
| Memory card interface |
(SRAM card, Flash card, ATA card) |
|
|
|
|
| Total number of instructions*3 | 725 |
|
|
|
|
| Floating point instruction | |
|
|
|
|
| Character string processing instruction | |
|
|
|
|
| PID instruction | |
|
|
|
|
| Special function instruction
(Trigonometric function, square root, exponential operation, etc.) |
|
|
|
|
|
| Constant scan
(Function for keeping regular scan time) | 0.5…2000 ms (setting available in units of 0.5 ms) |
|
|
|
|
| Program capacity | 28K steps | 60K steps | 124K steps | 252K steps |
|
| Number of I/O device points [X/Y] | 8192 points |
|
|
|
|
| Number of I/O points [X/Y] | 4096 points |
|
|
|
|
| Internal relay [M]*4 | 8192 points |
|
|
|
|
| Latch relay [L]*4 | 8192 points |
|
|
|
|
| Link relay [B]*4 | 8192 points |
|
|
|
|
| Timer [T]*4 | 2048 points |
|
|
|
|
| Retentive timer [ST]*4 | 0 point |
|
|
|
|
| Counter [C]*4 | 1024 points |
|
|
|
|
| Data register [D]*4 | 12288 points |
|
|
|
|
| Link register [W]*4 | 8192 points |
|
|
|
|
| Annunciator [F]*4 | 2048 points |
|
|
|
|
| Edge relay [V]*4 | 2048 points |
|
|
|
|
| Link special relay [SB] | 2048 points |
|
|
|
|
| Link special register [SW] | 2048 points |
|
|
|
|
| File register [R, ZR] | 32768 points*5 | 65536 points*5 | 131072 points*5 |
|
|
| Step relay [S] | 8192 points |
|
|
|
|
| Index register [Z] | 16 points |
|
|
|
|
| Pointer [P] | 4096 points |
|
|
|
|
| Interrupt pointer [I] | 256 points |
|
|
|
|
| Special relay [SM] | 2048 points |
|
|
|
|
| Special register [SD] | 2048 points |
|
|
|
|
| Function input [FX] | 16 points |
|
|
|
|
| Function output [FY] | 16 points |
|
|
|
|
| Function register [FD] | 5 points |
|
|
|
|
| Local device | |
|
|
|
|
| Device initial values | |
|
|
|
|
