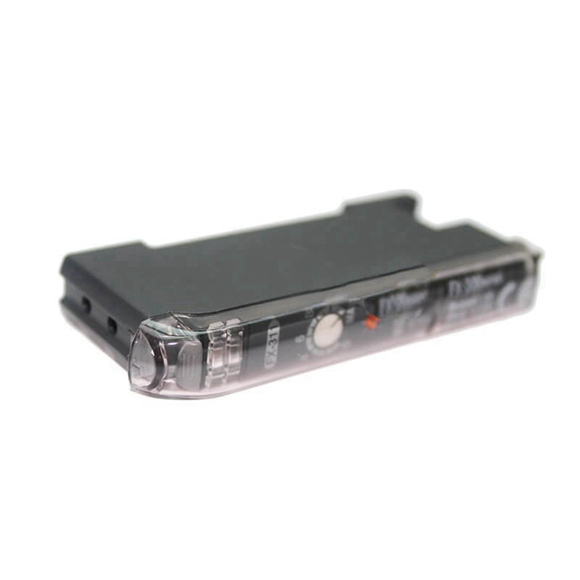

| Type | Red LED | Blue LED | Green LED |
| NPN output | FX-311 | FX-311B | FX-311G |
| PNP output | FX-311P | FX-311BP | FX-311GP |
| Supply voltage | 12 to 24 V DC ±10 % Ripple P-P 10 % or less |
|
|
| Power consumption | 840 mW or less (Current consumption 35 mA or less at 24 V supply voltage) |
|
|
| Output | <NPN open-collector transistor>
• Maximum sink current: 100 mA
(50 mA, if five, or more, amplifiers are connected in cascade)
• Applied voltage: 30 V DC or less (between output and 0 V)
• Residual voltage: 1.5 V or less
[at 100 mA sink current (50 mA, if five, or more, amplifiers are connected in cascade)]<PNP open-collector transistor>
• Maximum source current: 100 mA
(50 mA, if five, or more, amplifiers are connected in cascade)
• Applied voltage: 30 V DC or less (between output and +V)
• Residual voltage: 1.5 V or less
[at 100 mA sink current (50 mA, if five, or more, amplifiers are connected in cascade)] |
|
|
| Response time | <Red LED type>
250 μs or less (STD / S-D), 2 ms or less (LONG) selectable with selection switch<Blue LED type / Green LED type>
150 μs or less (FAST), 250 μs or less (STD), 2 ms or less (LONG) selectable with selection switch |
|
|
| Operation indicator | Orange LED (lights up when the output is ON) |
|
|
| Stability indicator | Green LED (lights up under stable light received condition or stable dark condition) |
|
|
| Sensitivity adjuster | 12-turn potentiometer with indicator (Pointer part: red backlight) (Note 2) |
|
|
| Timer function | Incorporated with OFF-delay timer, selectable either effective (approx. 10 ms or 40 ms) or ineffective |
|
|
Automatic interference
prevention function | Incorporated (Up to 4 sets of fiber heads can be mounted close together.) (Note 3) |
|
|
| Pollution degree | 3 (Industrial environment) |
|
|
| Ambient temperature | -10 to +55 ℃ -14 to +131 ℉
(If 4 to 7 units are connected in cascade: -10 to +50 ℃ +14 to +122 ℉,
if 8 to 16 units are connected in cascade: -10 to +45 ℃ +14 to +113 ℉)
(No dew condensation or icing allowed), Storage: -20 to +70 ℃ -4 to +158 ℉ |
|
|
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
|
|
| Ambient illuminance | Incandescent light: 3,000 ℓx at the light-receiving face |
|
|
| EMC | EN 60947-5-2 |
|
|
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure (Note 4) |
|
|
| Insulation resistance | 20 MΩ, or more, with 250 V DC megger between all supply terminals connected together and enclosure (Note 4) |
|
|
| Vibration resistance | 10 to 150 Hz frequency, 0.75 mm 0.03 in amplitude in X, Y and Z directions for two hours each |
|
|
| Shock resistance | 98 m/s2 acceleration (10 G approx.) in X, Y and Z directions for five times each |
|
|
Emitting element
(modulated) | Red LED | Blue LED | Green LED |
| Material | Enclosure: Heat-resistant ABS, Case cover: Polycarbonate |
|
|
| Connecting method | Connector (Note 5) |
|
|
| Cable length | Total length up to 100 m 328.084 ft is possible with 0.3 mm2, or more, cable. |
|
|
| Weight | Net weight: 15 g approx., Gross weight: 20 g approx. |
|
|
