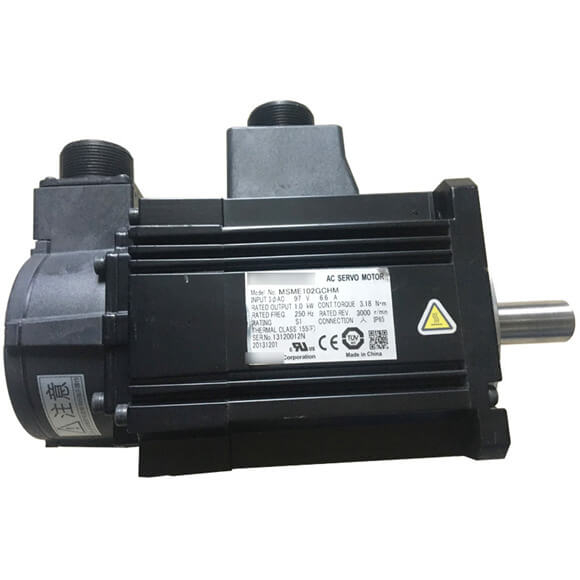

Panasonic Servo Motor MINAS A5 1.5KW MSME152GCHM/MSME152GCH



Series#: Panasonic Servomotor



  • Panasonic Servo Motor MINAS A5 1.5KW MSME152GCHM/MSME152GCH
  • We can Supply Panasonic electric automation parts,such as Panasonic PLC,Panasonic Servo Motor&Panasonic servo drive,Panasonic VFD,Panasonic Relay and Panasonic Sensor.
  • 100% Original and new,In stock by Panasonic Electric
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs



Availability:
Inquire

Product Description



Series#: Panasonic Servomotor


  • Panasonic Servo Motor MINAS A5 1.5KW MSME152GCHM/MSME152GCH

  • We can Supply Panasonic electric automation parts,such as Panasonic PLC,Panasonic Servo Motor&Panasonic servo drive,Panasonic VFD,Panasonic Relay and Panasonic Sensor.


Download A Munual


Panasonic Servo Motor MINAS A5 AC400 V
panasonic Servo Motor MINAS A5


IP65

 MSME154GC□ MSME154SC□
Panasonic Servo Motor MINAS A5


IP67

 MSME154G1□ MSME154S1□
A5Ⅱ, A5 series MDD◇T3420
 A5ⅡE, A5E series MDD◇T3420E –
Frame symbol D-frame
Power supply capacity (kVA) 2.3
Rated output (W) 1500
Rated torque (N•m) 4.77
Momentary Max. peak torque (N•m) 14.3
Rated current (A(rms)) 4.2
Max. current (A(o-p)) 18
Regenerative brake frequency (times/min) Note)1


Without option

 No limit Note)2
 DV0PM20048 No limit Note)2
Rated rotational speed (r/min) 3000
Max. rotational speed (r/min) 5000
Moment of inertia


of rotor (×10−4 kg•m2)

Without brake

 2.84
With brake 3.17
Recommended moment of inertia ratio of the load and the rotor Note)3 15 times or less
Rotary encoder specifications Note)5 20-bit Incremental 17-bit Absolute
 Resolution per single turn 1048576 131072


Relevant documents
download Panasonic-minas-a5-servomotor-datasheet.pdf
