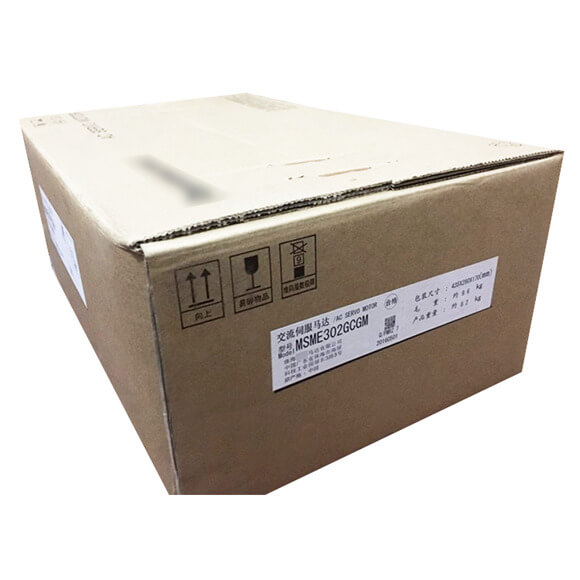

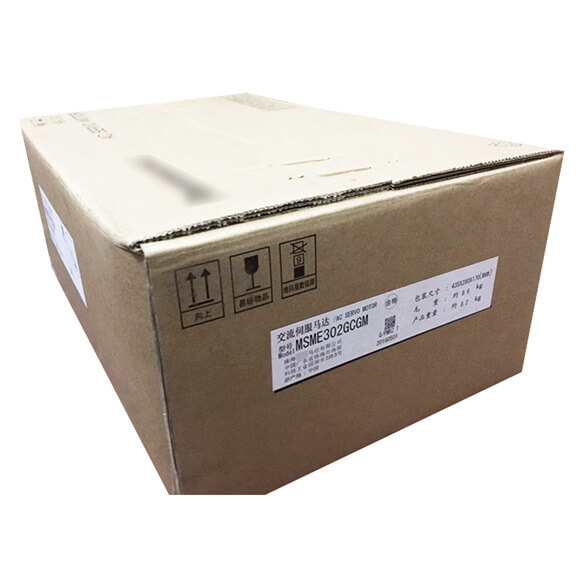

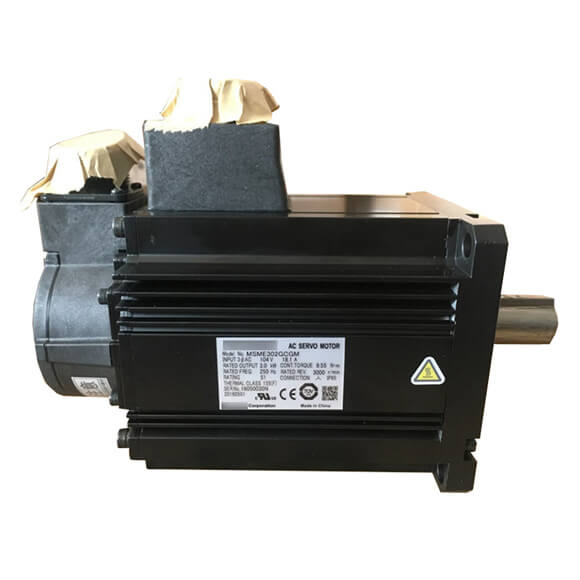

Panasonic Servo Motor MINAS A5 3kW3 MSME302GCG/MSME302GCGM



Series#: Panasonic Servomotor



  • Panasonic Servo Motor MINAS A5 3kW3 MSME302GCG/MSME302GCGM
  • We can Supply Panasonic electric automation parts,such as Panasonic PLC,Panasonic Servo Motor&Panasonic servo drive,Panasonic VFD,Panasonic Relay and Panasonic Sensor.
  • 100% Original and new,In stock by Panasonic Electric
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs



Availability:
Inquire

Product Description



Series#: Panasonic Servomotor


  • Panasonic Servo Motor MINAS A5 3kW3 MSME302GCG/MSME302GCGM

  • We can Supply Panasonic electric automation parts,such as Panasonic PLC,Panasonic Servo Motor&Panasonic servo drive,Panasonic VFD,Panasonic Relay and Panasonic Sensor.


Download A Munual


Panasonic Servo Motor MINAS A5 3kW3 MSME AC200 V
Panasonic Servo Motor MINAS A5


IP65

 MSME302GC□ MSME302SC□
Panasonic Servo Motor MINAS A5


IP67

 MSME302G1□ MSME302S1□
A5Ⅱ, A5 series MFD◇TA390
A5ⅡE, A5E series MFD◇TA390E –
Frame symbol F-frame
Power supply capacity (kVA) 4.5
Rated output (W) 3000
Rated torque (N•m) 9.55
Momentary Max. peak torque (N•m) 28.6
Rated current (A(rms)) 18.1
Max. current (A(o-p)) 77
Regenerative brake frequency (times/min) Note)1


Without option

 No limit Note)2
DV0P4285×2 No limit Note)2
Rated rotational speed (r/min) 3000
Max. rotational speed (r/min) 5000
Moment of inertia


of rotor (×10−4 kg•m2)

Without brake

 6.50
With brake 6.85
Recommended moment of inertia ratio of the load and the rotor Note)3 15 times or less
Rotary encoder specifications Note)5 20-bit Incremental 17-bit Absolute
Resolution per single turn 1048576 131072


Relevant documents
download Panasonic-minas-a5-servomotor-datasheet.pdf
