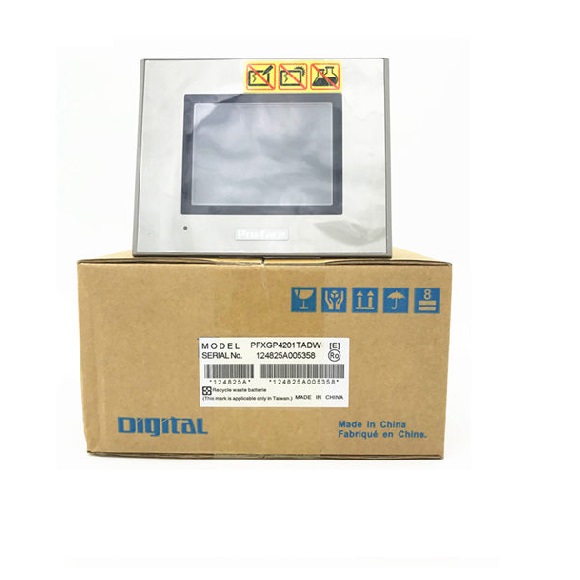

| Specification | Proface Touch screen HMI PFXGP4201TAD /PFXGP4203TAD |
|
| Model | PFXGP4201TAD | PFXGP4203TAD |
| Graphics Display Resolution | 320 x 240 pixels (QVGA) |
| Display Type and Size | TFT Color LCD (3.5 inch) |
| Display Colors | 65,536 Colors (No blink)/16,384 Colors (Blink) |
| Display Area | W70.56 x H52.92 mm [W2.78 x H2.08 in.] |
| Touch Screen | Resistive film analog 1024 x 1024 resolution |
| USB | USB Type-A (2.0) x 1 , USB mini-B (2.0) x1 |
| Serial | RS-232C/422/485 Asynchronous Transmis- sion, Data Length: 7 or 8 bit, Parity: None, Even or Odd, Stop Bit: 1 or 2 bit, Data Trans- mission Speed: 2,400 bps to 115.2 kbps,
187.5 kbps(MPI), Connector: D-Sub9 (plug) | RS-485 (isolation) Asynchronous Transmis- sion, Data Length: 7 or 8 bit, Parity: None, Even or Odd, Stop Bit: 1 or 2 bit, Data Transmission Speed: 2,400 bps to 115.2 kbps, 187.5 kbps (MPI), Connector: D-Sub9 (socket) |
| Ethernet | Ethernet IEEE802.3i/IEEE802.3u, 10BASE-T/100BASE-TX |
| Backlight | White LED (User nonreplaceable parts. When replacement is required, contact your local distributor. |
| Brightness and Contrast Controls | 16 levels of adjustment available via touch panel (or the software) |
| Programming Memory | 16MB FEPROM (GP-Pro EX V3.0 or later) |
| Backup Memory | 512kb SRAM with battery backup |
