Schneider Electric BMXDDI3202K Modicon X80 Discrete Input Module, 32 Inputs, 24V DC, Positive Logic

Share to:

Schneider Electric BMXDDI3202K Modicon X80 Discrete Input Module, 32 Inputs, 24V DC, Positive Logic

Series#: PLC -> Schneider PLC -> Modicon M340
- Schneider Electric BMXDDI3202K Modicon X80 Discrete Input Module, 32 Inputs, 24V DC, Positive Logic
- We have large inventory for Schneider Modicon X80/M340 modules and related accessories.
- 100% Original and new, In stock by Eaton Company.
- Delivery time: Ready in stock and 1 days for ship out
- MOQ: 1pcs

Availability:



Inquire

Model:
BMXDDI3202K
Brand:
Schneider Electric

Product Description

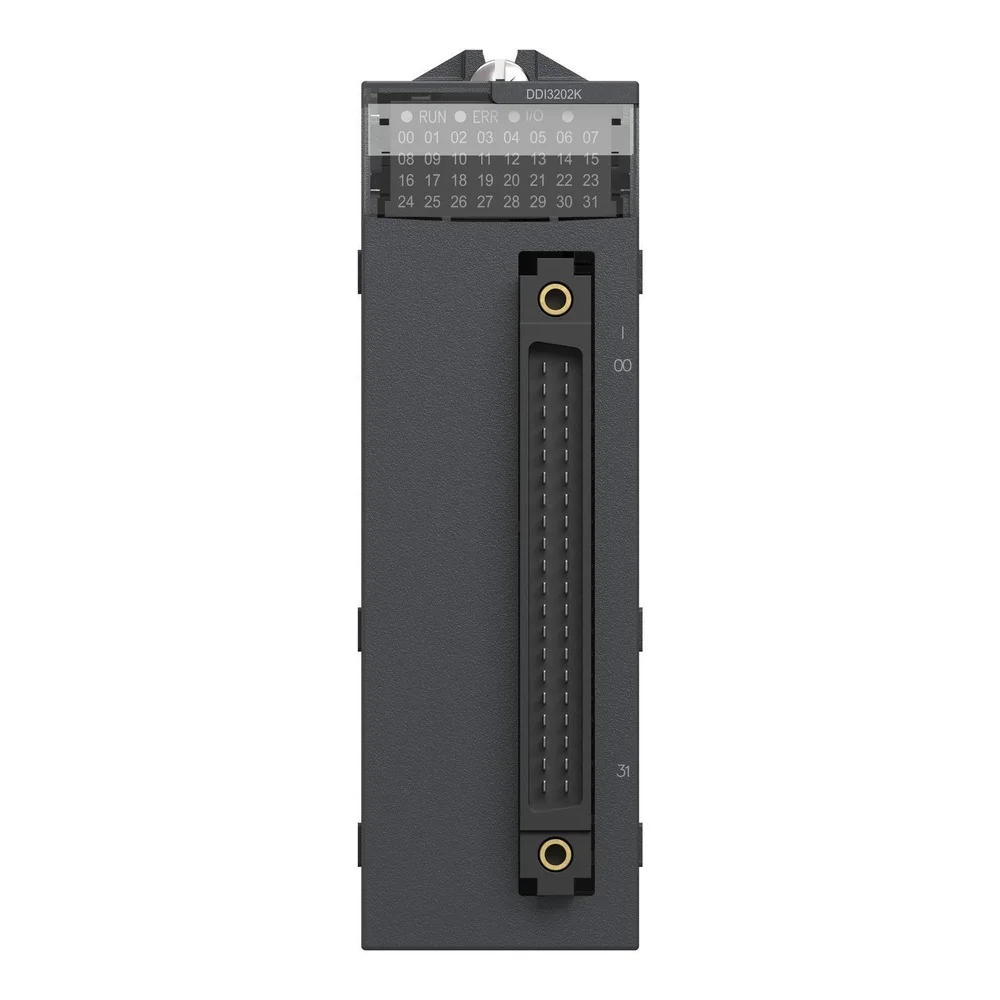

The Schneider Electric BMXDDI3202K is a high-density 32-channel discrete input module from the Modicon X80 platform, accepting 24V DC positive logic (sinking) input signals. It provides isolated inputs with per-channel LED status indication and a 40-way removable terminal block for compact high-density wiring. Compatible with Modicon M340 and M580 PACs via the X80 backplane, it supports hot-swapping and comprehensive diagnostics. Applications include high-density digital signal acquisition in process automation, machine control, and distributed I/O systems where maximizing channel count per module slot is critical.

**Q: What is the difference between BMXDDI3202K and BMXDDI6402K?**
A: The BMXDDI3202K has 32 inputs; the BMXDDI6402K has 64 inputs in the same form factor, doubling the channel density.

Technical Specifications

Schneider Electric BMXDDI3202K
PLC -> Schneider PLC -> Modicon M340 \| Schneider Electric BMXDDI3202K Modicon X80 Discrete Input Module, 32 Inputs, 24V DC, Positive Logic
Feature	Specification
Feature	Specification
Product Range	Modicon X80 (M340/M580)
Product Type	Discrete Input Module
Number of Inputs	32
Input Voltage	24V DC
Input Logic	Positive (Sinking)
Input Type	Isolated
Electrical Connection	40-way removable terminal block
Module Format	Standard
Operating Temperature	0 to 60°C
Protection Degree	IP20
Certifications	CE, UL, CSA, RCM, Merchant Navy
Discrete Input Voltage	24V DC (positive logic)
Input Type	Isolated, current sink
Voltage State 1 Guaranteed	>= 15 V
Voltage State 0 Guaranteed	<= 5 V
Current State 1	>= 2 mA
Current State 0	<= 0.5 mA
Response Time	<= 4 ms
Power Dissipation	<= 5 W
Dielectric Strength	1500 V AC 50/60Hz 1 min
Weight	0.12 kg
Dimensions (WxHxD)	33 x 100 x 150 mm
Operating Temperature	0 to 60 C
Storage Temperature	-40 to 85 C
Certifications	CE, UL, CSA, EAC, RCM, Merchant Navy
Standards	IEC 61131-2, EN 61010-2-201
