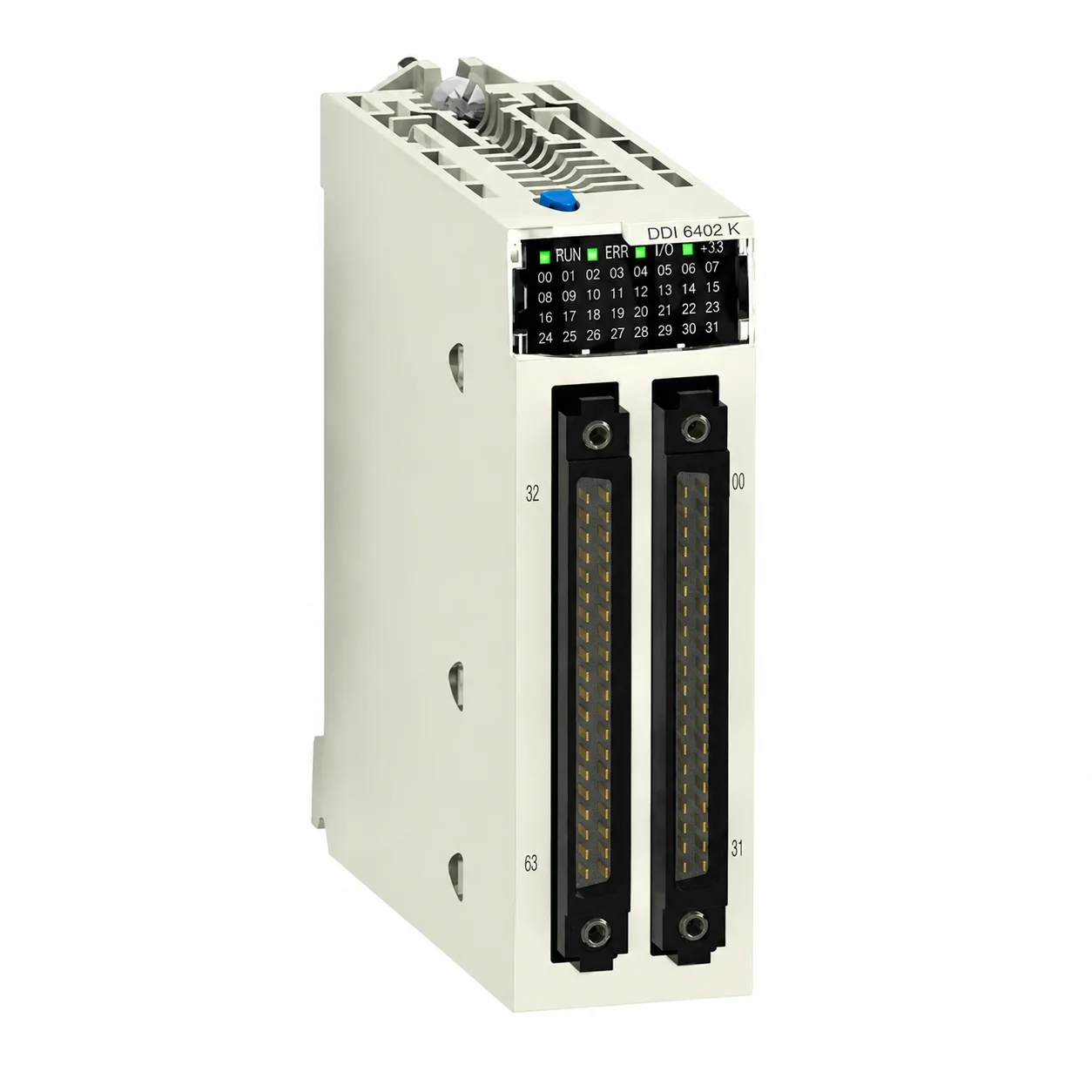

Schneider Electric BMXDDI6402K Modicon X80 Discrete Input Module, 64 Inputs, 24V DC, Positive Logic

Share to:

Schneider Electric BMXDDI6402K Modicon X80 Discrete Input Module, 64 Inputs, 24V DC, Positive Logic

Series#: PLC -> Schneider PLC -> Modicon M340
- Schneider Electric BMXDDI6402K Modicon X80 Discrete Input Module, 64 Inputs, 24V DC, Positive Logic
- We have large inventory for Schneider Modicon X80/M340 modules and related accessories.
- 100% Original and new, In stock by Eaton Company.
- Delivery time: Ready in stock and 1 days for ship out
- MOQ: 1pcs

Availability:



Inquire

Model:
BMXDDI6402K
Brand:
Schneider Electric

Product Description

The BMXDDI6402K is the highest-density discrete input module in the Modicon X80 range, providing 64 channels of 24V DC positive logic inputs in a single module slot. Designed for applications where maximizing input count per rack is essential, it connects via a high-density 40-way removable terminal block with comprehensive per-channel diagnostics and hot-swap support. Compatible with Modicon M340 and M580 PACs via the X80 backplane.

**Q: How does the BMXDDI6402K achieve 64 channels?**
A: It uses high-density connector technology with 2 groups of 32 inputs sharing a common 40-way terminal block, doubling the channel count of the BMXDDI3202K in the same physical space.

Technical Specifications

Schneider Electric BMXDDI6402K
PLC -> Schneider PLC -> Modicon M340 \| Schneider Electric BMXDDI6402K Modicon X80 Discrete Input Module, 64 Inputs, 24V DC, Positive Logic
Feature	Specification
Feature	Specification
Product Range	Modicon X80 (M340/M580)
Product Type	Discrete Input Module
Number of Inputs	64
Input Voltage	24V DC
Input Logic	Positive (Sinking)
Electrical Connection	40-way removable terminal block
Operating Temperature	0 to 60°C
Protection Degree	IP20
Certifications	CE, UL, CSA
Discrete Input Voltage	24V DC (positive logic)
Number of Inputs	64 (2 groups of 32)
Input Type	Isolated, current sink
Voltage State 1 Guaranteed	>= 15 V
Voltage State 0 Guaranteed	<= 5 V
Current State 1	>= 2 mA
Response Time	<= 4 ms
Power Dissipation	<= 7 W
Dielectric Strength	1500 V AC 50/60Hz 1 min
Weight	0.13 kg
Dimensions (WxHxD)	33 x 100 x 150 mm
Operating Temperature	0 to 60 C
Storage Temperature	-40 to 85 C
Certifications	CE, UL, CSA, EAC, Merchant Navy
