Schneider Electric BMXEHC0200 Modicon X80 High-Speed Counter Module, 2 Channels, 100kHz, Encoder Input

Share to:

Schneider Electric BMXEHC0200 Modicon X80 High-Speed Counter Module, 2 Channels, 100kHz, Encoder Input

Series#: PLC -> Schneider PLC -> Modicon M340
- Schneider Electric BMXEHC0200 Modicon X80 High-Speed Counter Module, 2 Channels, 100kHz
- We have large inventory for Schneider Modicon X80/M340 modules and related accessories.
- 100% Original and new, In stock by Eaton Company.
- Delivery time: Ready in stock and 1 days for ship out
- MOQ: 1pcs

Availability:



Inquire

Model:
BMXEHC0200
Brand:
Schneider Electric

Product Description

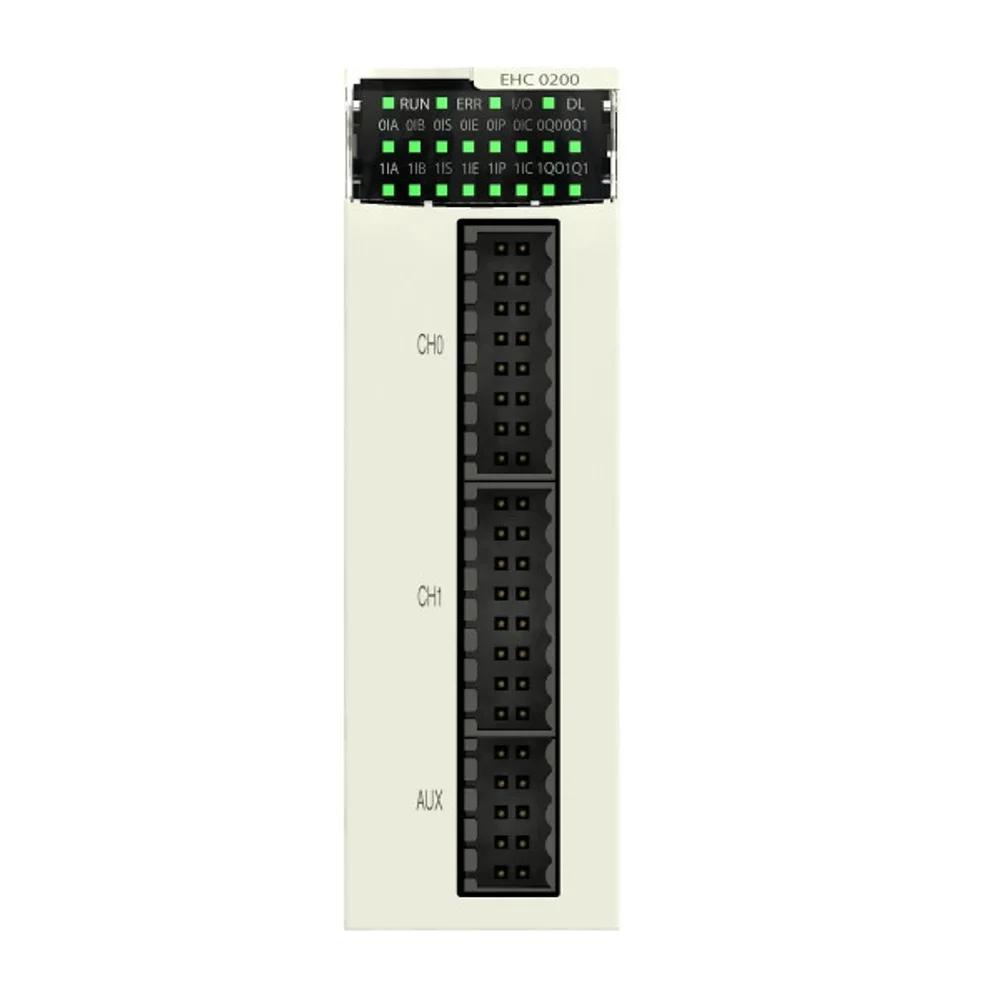

The BMXEHC0200 is a 2-channel high-speed counter module for the Modicon X80 platform, capable of counting at up to 100kHz per channel. It supports incremental encoder inputs (A/B/Z signals) and provides configurable counting modes including up/down, frequency measurement, and pulse width measurement. Each channel supports preset values, compare outputs, and interrupt generation. Compatible with Modicon M340 and M580 PACs, it is ideal for high-speed counting applications such as encoder position tracking, RPM/speed measurement, flow metering, cut-to-length control, and packaging machine registration.

**Q: What encoder types are compatible with the BMXEHC0200?**
A: It supports incremental encoders with RS-422 differential line driver outputs or 5V TTL single-ended signals with A, B, and Z (index) channels.

**Q: What is the maximum input frequency?**
A: Up to 100 kHz on each of the 2 counting channels.

Technical Specifications

Schneider Electric BMXEHC0200
PLC -> Schneider PLC -> Modicon M340 \| Schneider Electric BMXEHC0200 Modicon X80 High-Speed Counter Module, 2 Channels, 100kHz, Encoder Input
Feature	Specification
Feature	Specification
Product Range	Modicon X80 (M340/M580)
Product Type	High-Speed Counter Module
Number of Channels	2
Maximum Counting Frequency	100 kHz per channel
Encoder Interface	Incremental (A/B/Z), RS-422/5V differential
Counting Modes	Up/Down, Frequency, PWM
Input Signals	A, B, Z (index), plus auxiliary inputs
Electrical Connection	20-way removable terminal block
Operating Temperature	0 to 60°C
Protection Degree	IP20
Certifications	CE, UL, CSA
Number of Counting Channels	2
Max Counting Frequency	100 kHz per channel
Encoder Interface	Incremental (A/B/Z)
Signal Type	RS-422 differential / 5V TTL
Counting Modes	Up/Down, Frequency, PWM measurement
Preset Values	Per channel with compare output
Interrupt Generation	Yes (on preset/capture)
Weight	0.15 kg
Dimensions (WxHxD)	33 x 100 x 150 mm
Operating Temperature	0 to 60 C
Certifications	CE, UL, CSA, EAC, Merchant Navy
Standards	IEC 61131-2, EN 61010-2-201
