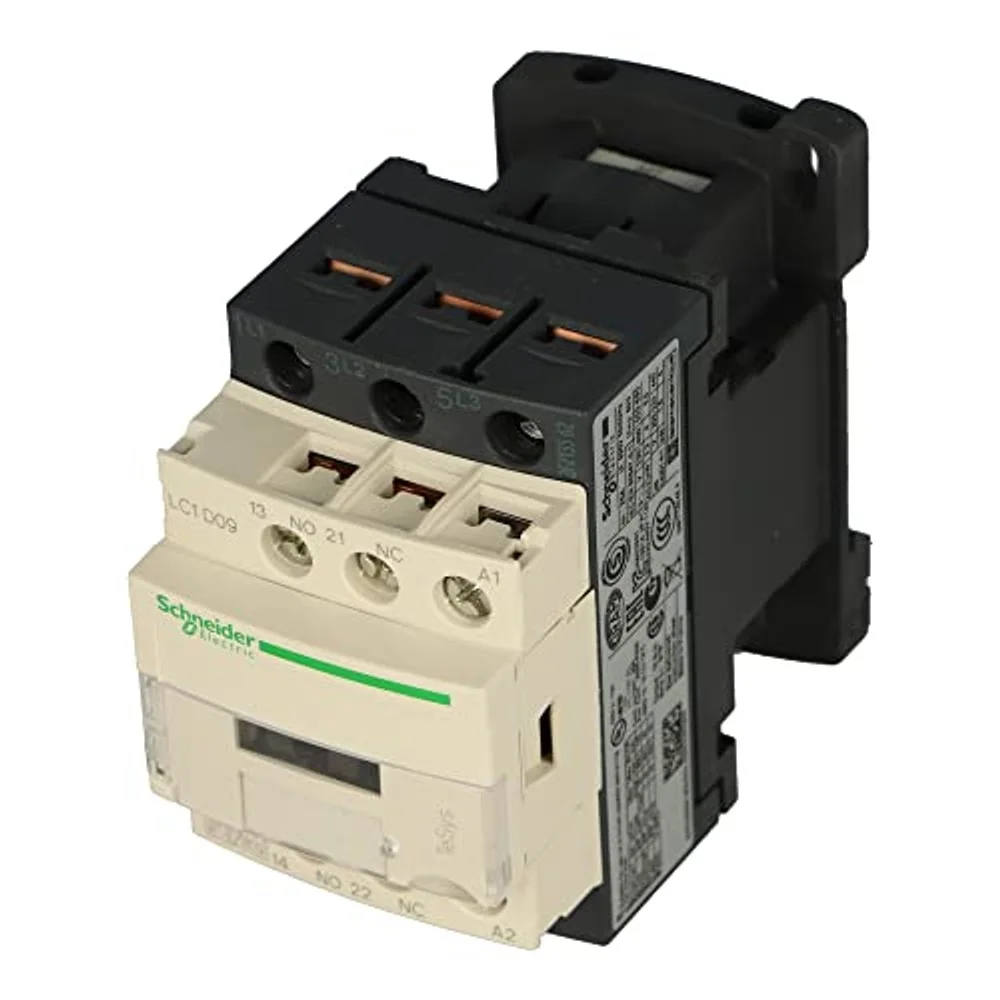

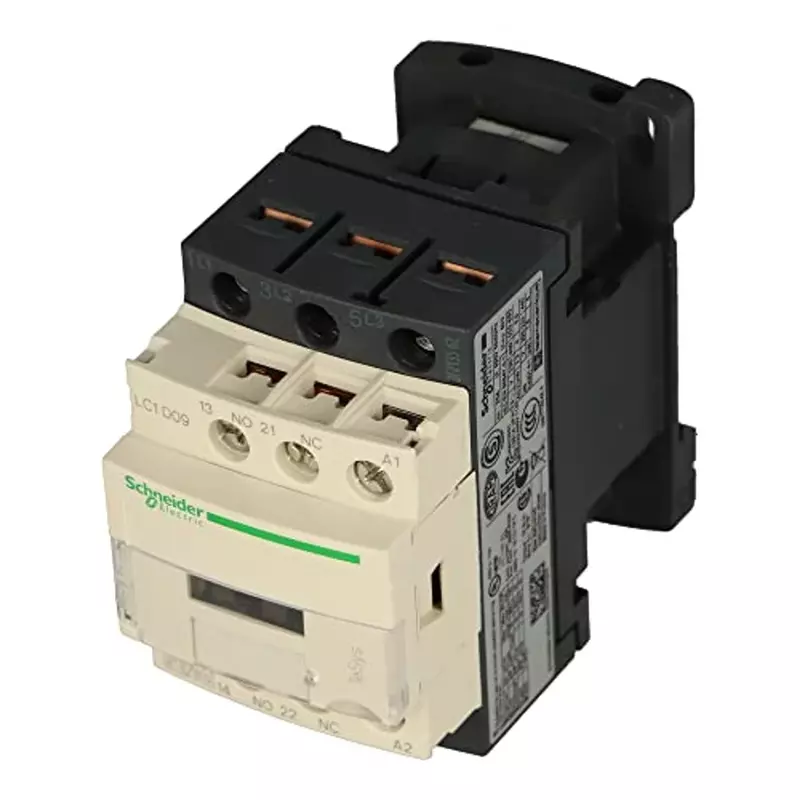

Schneider Electric LC1D09M7 TeSys D 3-Pole Contactor, 9A AC-3, 220V AC Coil

Series#: Contactor -> Schneider -> [NEW] TeSys D
- Schneider Electric LC1D09M7 TeSys D 3-Pole Contactor, 9A AC-3, 220V AC Coil
- We have large inventory for Schneider TeSys D contactors and motor control accessories.
- 100% Original and new, In stock by Eaton Company.
- Delivery time: Ready in stock and 1 days for ship out
- MOQ: 1pcs

Availability:



Inquire

Model:
LC1D09M7
Brand:
Schneider Electric

Product Description

The LC1D09M7 is a 3-pole contactor from the TeSys D series rated 9A AC-3 (4kW @ 400V) with a 220V AC coil. It features 1NO+1NC built-in auxiliary contacts and screw clamp terminals. Compliant with IEC 60947-4-1, it is the industry-standard contactor for motor starting, lighting control, heating circuits, and general-purpose switching in industrial control panels.

**Q: What does "M7" mean in LC1D09M7?**
A: "M7" indicates a 220V AC 50/60Hz coil. Other coil codes include B7 (24V AC), BD (24V DC), P7 (230V AC), F7 (110V AC).

**Q: Can the LC1D09M7 be used for DC motor switching?**
A: Yes, with the DC-3/DC-5 utilization category ratings. For higher DC loads, consider the TeSys D DC-specific contactors.

Technical Specifications

Schneider Electric LC1D09M7
Contactor -> Schneider -> [NEW] TeSys D \| Schneider Electric LC1D09M7 TeSys D 3-Pole Contactor, 9A AC-3, 220V AC Coil
Feature	Specification
Feature	Specification
Product Series	TeSys D
Rated Operational Current (AC-3, 380/400V)	9 A
Rated Power (AC-3, 400V)	4 kW
Number of Poles	3 (3 NO main contacts)
Coil Voltage	220V AC (50/60 Hz)
Built-in Auxiliary Contacts	1 NO + 1 NC
Terminal Type	Screw clamp
Mechanical Life	> 10 million ops
Standards	IEC 60947-4-1
Width	45 mm
Mounting	DIN rail / panel
AC-1 Rating (resistive)	25 A at <=440V AC
AC-3 Rating (motor)	9 A at <=440V AC
Motor Power AC-3 400V	4 kW
Coil Inrush Power	70 VA at 50 Hz
Coil Holding Power	7 VA at 50 Hz
Rated Insulation Voltage (Ui)	690 V (IEC)
Rated Impulse Voltage (Uimp)	6 kV
Thermal Current (Ith)	25 A at <=60 C
Closing Time	12-22 ms
Opening Time	4-19 ms
Mechanical Durability	15 million cycles
Electrical Durability AC-3	2 million cycles
Max Operating Rate	3600 cycles/h
Short-Time Withstand Current	210 A for 1s
Associated Fuse Rating	20 A gG (Type 2)
Dimensions (HxWxD)	77 x 45 x 86 mm
Weight	~0.32-0.35 kg
