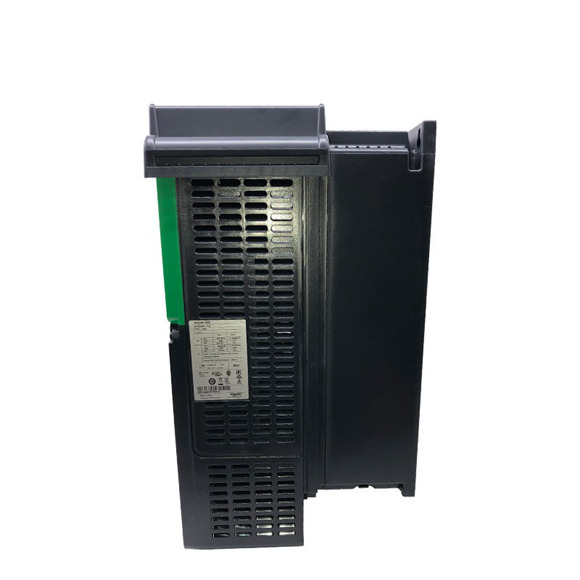

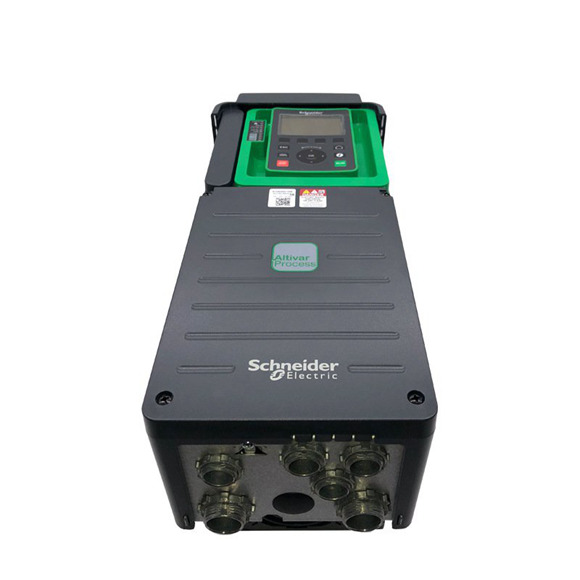

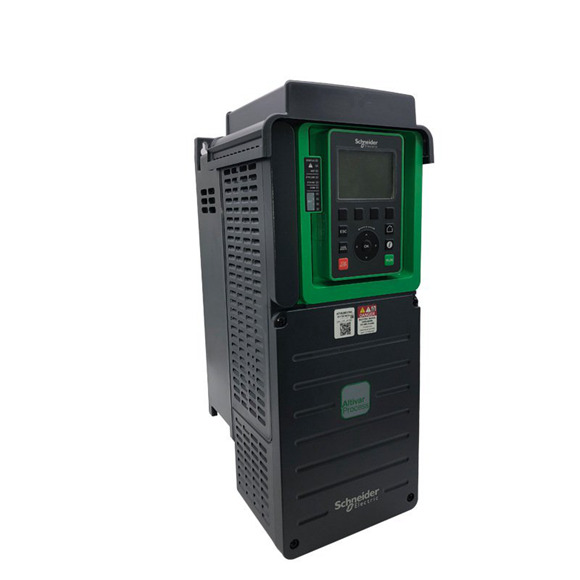

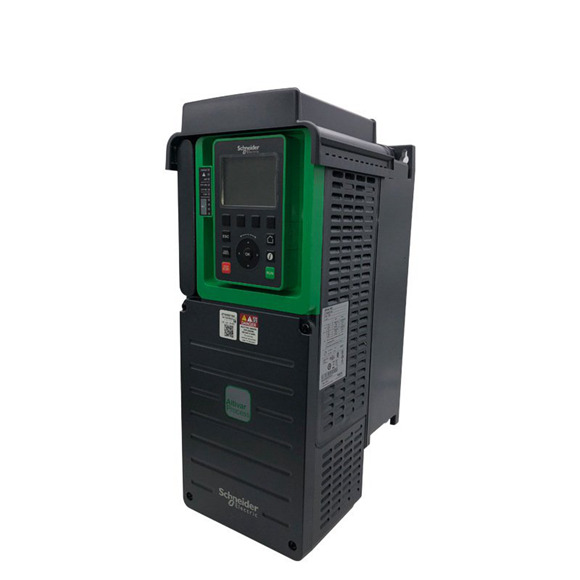

| Schneider VFD Inverter Drive ATV630 0.75kW-75kW |
| Mounting type |
| Cabinet integration |
| Degree of protection |
| IP20 |
| Power range for 50…60 Hz line supply | Three phase: 380…480 V (kW/HP) | 0.75…90/1…120 |
| Three-phase: 400 V (kW) | – |
| Three-phase: 440 V (kW) | – |
| Three-phase: 480 V (HP) | – |
| Three-phase: 500 (kW) | – |
| Three-phase: 600 (HP) | – |
| Three-phase: 690 (kW) | – |
| Drive | Output frequency | 0.1… 500 Hz |
| Control type | Asynchronous motor | Standard constant torque, variable standard torque, optimized torque mode |
|
| Synchronous motor | PM (permanent magnet) motor, synchronous reluctance motor |
| Functions | Advanced functions | Including all the advanced features of ATV600:b Accurate measurement for monitoring system energy consumption (deviation < 5%)
b Installation energy drift detection b Embedded Ethernet with direct access to system configuration and monitoring b Integration of actual pump curves to optimize the system operating point b Optimized pump monitoring based on actual operating point b Sensorless estimated flow rate b Measurements expressed in working units (e.g. m3/h, kWh/m3) b Limitation of overvoltage at the motor terminals b Contextual access to technical documentation through dynamic QR code b Continuous and historical real-time measurements with customizable dashboards b Predictive and preventive maintenance tracking functions (e.g. temperatures with PT100/1000 probe, fan monitoring) Easy setting of drive identification for Altivar Process Modular drives from 110 kW up to 800 kW (150…1100 HP) |
| Integrated safety function | 1: STO (Safe Torque Off) SIL3 |
| Number of preset speeds | 16 |
| Number of integrated I/O | Analog inputs | 3: Configurable as voltage (0…10 V) or current (0-20 mA/4-20 mA), 2 of them including probes(PTC, PT100, PT1000, or KTY84) |
| Digital inputs | 6: Voltage 24 V c (positive or negative logic) |
| Digital output | – |
| Analog outputs | 2: Configurable as voltage (0…10 V) or current (0-20 mA) |
| Relay outputs | 3: 1 with NO/NC contacts and 2 with NO contacts |
| Safety function inputs | 2: For safety function STO |
| I/O expansion modules (optional) | Analog inputs | 2 differential analog inputs configurable via software as voltage (0…±10 V) orcurrent (0-20 mA/ 4-20 mA), or for PTC, PT100, or PT1000, 2- or 3-wire |
| Digital inputs | 6: Voltage 24 V c (positive or negative logic) |
| Digital outputs | 2: Assignable |
| Relay output module (optional) | Relay outputs |
| 3: NO contacts |
| Communication | Integrated | Modbus/TCP, Modbus serial link |
| Option modules | Ethernet/IP, Modbus TCP and MD-Link dual port, CANopen Daisy chain, SUB-D and screwterminal block, PROFINET, PROFIBUS DP V1, DeviceNet, BACnet MS/TP, POWERLINK |
