| Sensor/ detection principle | Photoelectric retro-reflective sensor, Dual lens |
| Dimensions (W x H x D) | 11 mm x 31 mm x 20 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 0.01 m … 7.2 m 1) |
| Sensing range | 0.01 m … 5.5 m 1) |
| Type of light | Visible red light |
| Light source | LED 2) |
| Light spot size (distance) | Ø 280 mm (4 m) |
| Wave length | 632 nm |
| Adjustment | Potentiometer (Sensitivity) |
| Supply voltage | 10 V DC … 30 V DC 1) |
| Ripple | ± 10 % 2) |
| Current consumption | 30 mA 3) |
| Switching output | PNP |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark rotary switch |
| Signal voltage PNP HIGH/LOW | UV – 1,8 V / ca. 0 V |
| Output current Imax. | 100 mA |
| Response time | ≤ 0.5 ms 4) |
| Switching frequency | 1,000 Hz 5) |
| Connection type | Connector M8, 3-pin |
| Circuit protection | A 6)
B 7) D 8) |
| Protection class | III |
| Polarisation filter | ✔ |
| Housing material | Plastic, ABS/PC/POM |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |

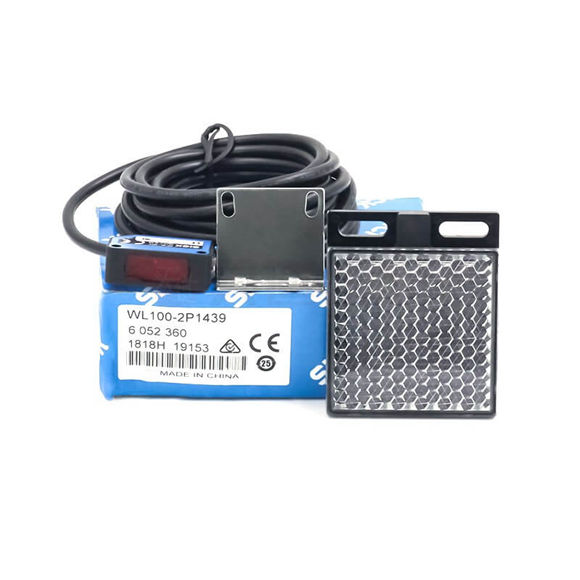

| Items supplied | Mounting bracket BEF-W100-A, Reflector P250 |
| Ambient operating temperature | –25 °C … +55 °C |
| Ambient storage temperature | –40 °C … +70 °C |
