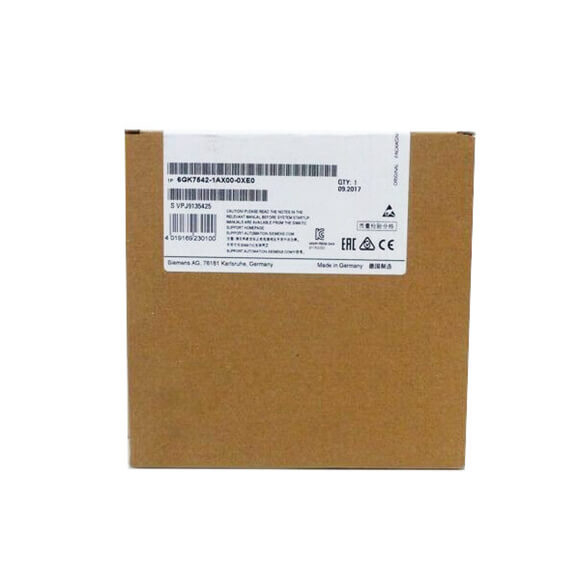

| Article number | 6GK7542-1AX00-0XE0 |
| Product type designation | CM 1542-1 |
| Transfer rate |
|
| Transfer rate |
|
|
● at the 1st interface | 10 … 100 Mbit/s |
| Interfaces |
|
| Number of interfaces acc. to Industrial Ethernet | 1 |
| Number of electrical connections |
|
|
● at the 1st interface acc. to Industrial Ethernet | 2 |
| Type of electrical connection |
|
|
● at the 1st interface acc. to Industrial Ethernet | RJ45 port |
| Supply voltage, current consumption, power loss |
|
| Type of voltage of the supply voltage | DC |
| Supply voltage 1 from backplane bus | 15 V |
| Relative symmetrical tolerance at DC |
|
|
● at 15 V | 3 % |
| Consumed current |
|
|
● from backplane bus at DC at 15 V typical | 0.22 A |
| Power loss [W] | 3.3 W |
| Ambient conditions |
|
| Ambient temperature |
|
|
● for vertical installation during operation | 0 … 40 °C |
|
● for horizontally arranged busbars during operation | 0 … 60 °C |
|
● during storage | -40 … +70 °C |
|
● during transport | -40 … +70 °C |
| Relative humidity |
|
|
● at 25 °C without condensation during operation maximum | 95 % |
| Protection class IP | IP20 |
| Design, dimensions and weights |
|
| Module format | Compact module S7-1500 single width |
| Width | 35 mm |
| Height | 142 mm |
| Depth | 129 mm |
| Net weight | 0.4 kg |
| Mounting type |
|
|
● S7-1500 rail mounting | Yes |
| Product features, product functions, product components general |
|
| Number of units |
|
|
● per CPU maximum | 8 |
|
● Note | depending on CPU type |
| Performance data open communication |
|
| Number of possible connections for open communication |
|
|
● by means of T blocks maximum | 64; depending on the system upper limit |
| Amount of data |
|
|
● as user data per ISO on TCP connection for open communication by means of T blocks maximum | 65 536 byte |
| Number of Multicast stations | 6 |
| Performance data S7 communication |
|
| Number of possible connections for S7 communication |
|
|
● maximum | 64; depending on the system upper limit |
| Performance data multi-protocol mode |
|
| Number of active connections with multi-protocol mode | 64 |
| Performance data PROFINET communication as PN IO controller |
|
| Product function PROFINET IO controller | Yes |
| Number of PN IO devices on PROFINET IO controller usable total | 128 |
| Number of PN IO IRT devices on PROFINET IO controller usable | 64 |
| Number of external PN IO lines with PROFINET per rack | 10 |
| Amount of data |
|
|
● as user data for input variables as PROFINET IO controller maximum | 8 Kibyte |
|
● as user data for input variables as PROFINET IO controller maximum | 8 Kibyte |
|
● as user data for input variables per PN IO device as PROFINET IO controller maximum | 1 433 byte |
|
● as user data for output variables per PN IO device as PROFINET IO controller maximum | 1 433 byte |
|
● as user data for input variables per PN IO device for each sub-module as PROFINET IO controller maximum | 256 byte |
|
● as user data for output variables per PN IO device for each sub-module as PROFINET IO controller maximum | 256 byte |
| Performance data PROFINET communication as PN IO device |
|
| Product function PROFINET IO device | Yes |
| Amount of data |
|
|
● as user data for input variables as PROFINET IO device maximum | 8 192 byte |
|
● as user data for input variables as PROFINET IO device maximum | 8 192 byte |
|
● as user data for input variables for each sub-module as PROFINET IO device | 256 byte |
|
● as user data for input variables for each sub-module as PROFINET IO device | 256 byte |
|
● as user data for the consistency area for each sub-module | 256 byte |
| Number of submodules per PROFINET IO-Device | 32 |
| Performance data telecontrol |
|
| Protocol is supported |
|
|
● TCP/IP | Yes |
| Product functions management, configuration, engineering |
|
| Product function MIB support | Yes |
| Protocol is supported |
|
|
● SNMP v1 | Yes |
|
● DCP | Yes |
|
● LLDP | Yes |
| Configuration software |
|
|
● required | STEP 7 Professional V14 (TIA Portal) or higher |
| Identification & maintenance function |
|
|
● I&M0 – device-specific information | Yes |
|
● I&M1 – higher-level designation/location designation | Yes |
| Product functions Diagnostics |
|
| Product function Web-based diagnostics | Yes; via S7-1500 CPU |
