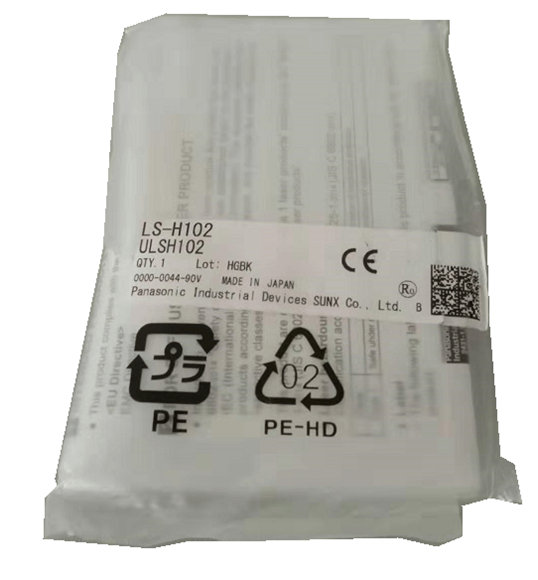

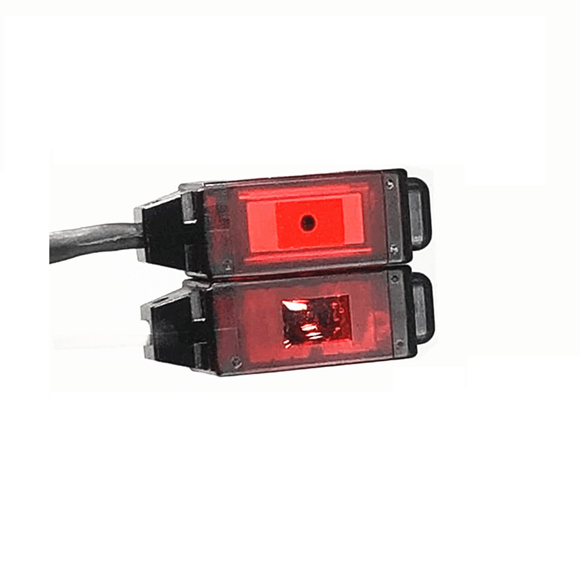

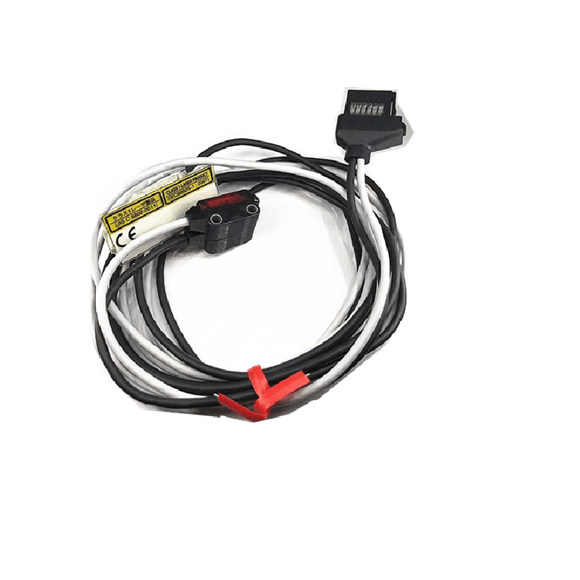

Panasonic Laser Sensor LS-H101 LS-H102 LS-H201 LS-H901

Series#: Laser Sensor Panasonic

Panasonic Laser Sensor LS-H101 LS-H102 LS-H201 LS-H901
Panasonic Amplifier-separatum Type Digital Laser Sensor LS-500
Supple omnia genera sensoris Panasonici partium, ut Panasonic Micro photoelectric sensoriis Area Panasonic Sensor Panasonic Digital Fiber Sensor ,Panasonic Fiber Sensor Panasonic Laser Sensor Panasonic Photoelectric Sensor,Panasonic Pressura sensoriis et Panasonic Propinquitas Sensor.
Omnes partes are 100% Original and new in stock by Panasonic and fast delivery time within 1 day
C% post venditionis servitium et technologiam Support
MOQ: 1pcs

Availability:



inquire

Product Description

Series#: Laser Sensor Panasonic

Panasonic Laser Sensor LS-H101 LS-H102 LS-H201 LS-H901
Panasonic Amplifier-separatum Type Digital Laser Sensor LS-500
Supple omnia genera sensoris Panasonici partium, ut Panasonic Micro photoelectric sensoriis Area Panasonic Sensor Panasonic Digital Fiber Sensor ,Panasonic Fiber Sensor Panasonic Laser Sensor Panasonic Photoelectric Sensor,Panasonic Pressura sensoriis et Panasonic Propinquitas Sensor.

Download in Munual

Type	Thru-trabs genus	Coaxial genus reflective	Coaxial retroreflective genus
Type	Cylindrica	Quadratus
Exemplar No.	LS-H101	LS-H102	LS-H201	LS-H901
CE signans obsequium directivum	EMC Directivum, RoHS Directivum
Locum amplifiers	LS-501(P), LS-501(P)-C2 (Note 2);
H-SP	1m 3.281 ft	1m 3.281 ft	150mm 5.906 in	0.01 ad 1m 0.033 ad 3.281 ft
GRAVITER	1m 3.281 ft	1m 3.281 ft	200mm 7.874 in	0.01 ad 1m 0.033 ad 3.281 ft
STD	1m 3.281 ft	1m 3.281 ft	300mm 11.811 in	0.01 ad 1m 0.033 ad 3.281 ft
DIU'	1m 3.281 ft	1m 3.281 ft	450mm 17.717 in	0.01 ad 1.5m 0.033 ad 4.921 ft
U-LG	1m 3.281 ft	1m 3.281 ft	600mm 23.622 in	0.01 ad 2m 0.033 ad 6.562 ft
HYPR	1m 3.281 ft	1m 3.281 ft	750mm 29.528 in	0.01 ad 2.5m 0.033 ad 8.202 ft
Macula magnitudine	ø5 mm ø0.197 in approx. vel minus (ad distantiam ab emittente 1 m 3.281 ft)	ø5 mm ø0.197 in approx. vel minus (ad distantiam ab emittente 1 m 3.281 ft)	2 mm ø0.079 inapprox. vel minus (ad distantiam a capite sensoris 300 mm 11.811 in)	ø6 mm ø0.236 inapprox. vel minus (ad distantiam a capite sensoris 1 m 3.281 ft)
Sensus object	Opacum, translucidum seu diaphanum (nota 5).
Operatio indicator	Aliquam DUXERIT (inluminat cum amplificator output est DE)
Praesidium	IP40 (IEC)	IP67 (IEC)	IP40 (IEC)	IP40 (IEC)
Ambiens temperatus	-10 ad +55℃ + 14 ad + 131℉ (Nec ros condensationis vel vico permissus), Storage：-20 ad +70℃ -4 ad +158℉.
Ambiens humiditas	35 ad 85 % RH
illuminatio ambientium	Candens lumen: 3,000 x vel minus in lucem recipiens faciem
Resistentia intentione	1,000 V AC pro una min. inter omnes copiae terminales connexae et clausurae
Nulla resistentia	20 MΩ, vel potius, 250 V DC megger inter omnes copias terminales simul et clausuras connexas
Repugnantia vibratio	10 ad 500 frequentiam Hz, 1.5 mm 0.059 in duplici amplitudine in X, Y et Z directiones per duas horas singulas
Repugnantia inpulsa	acceleratio 100 m/s2 (X G approx.) in X, Y et Z ter singulos
Materia	Clausura: Diver (SUS303) Cover: Polycarbonate	Clausura: PBT Cover: Acrylic	Clausura: PBT, Testimonium operculum: Polycarbonate Tignum emittens / accipiens superficies: Vitrum
Cable	0.09 mm,2 2-coris, retinaculo munito, 2 m 6,562 ft longa.	0.15 mm,2 2-nuclei duo rudentes paralleli muniti, 2 m 6.562 ft longi.
Pondus	Net pondus: 50 g approx. Crassum pondus: 75 g approx.	Net pondus: 50 g approx. Crassum pondus: LXX g approx.	Net pondus: 50 g approx. Crassum pondus: 80 g approx.	Net pondus: 50 g approx. Crassum pondus: LXXXV g approx.
Accessories	M6 stupra: 4 pcs. Dente cincinno washer: II quam at pede.	MS-EXL2-2 (platea adscendens) 2 pcs.	MS-LS-1 (Adscendens bracket) ： 1pc.	MS-LS-1(Adscendens bracket) ：1pc. RF-330(Refrector)： 1pc.
