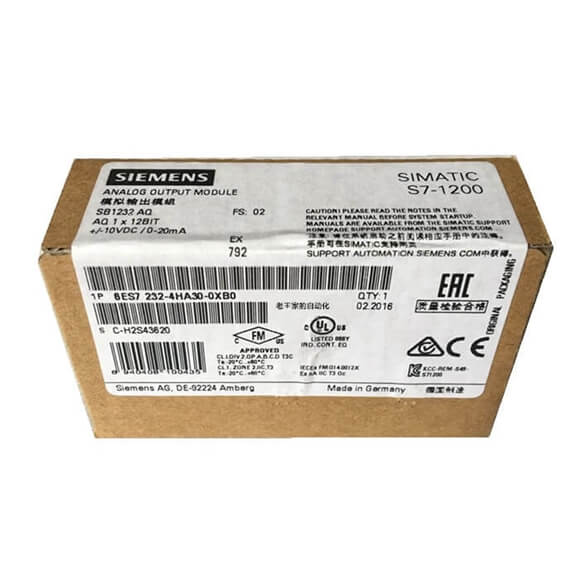

Article number | 6ES7232-4HA30-0XB0 |
| Signal Board SB 1232, 1 AO |
General information |
|
Product type designation | SB 1232, AQ 1×12 bit |
Input current |
|
from backplane bus 5 V DC, typ. | 15 mA |
Output voltage |
|
Power supply to the transmitters |
|
·
● Supply current, max. · | 25 mA |
Power loss |
|
Power loss, typ. | 1.5 W |
Analog inputs |
|
Number of analog inputs | 0 |
Analog outputs |
|
Number of analog outputs | 1 |
Cycle time (all channels) max. | Voltage: 300 μS (R), 750 μS (1 uF) Current: 600 ms (1 mH); 2 ms (10 mH) |
Output ranges, voltage |
|
·
● -10 V to +10 V · | Yes |
Output ranges, current |
|
·
● 0 to 20 mA · | Yes |
Load impedance (in rated range of output) |
|
·
● with voltage outputs, min. · | 1 000 Ω |
·
● with current outputs, max. · | 600 Ω |
Cable length |
|
·
● shielded, max. · | 100 m; shielded, twisted pair |
Analog value generation for the outputs |
|
Conversion principle | Differential |
Integration and conversion time/resolution per channel |
|
·
● Resolution with overrange (bit including sign), max. · | 12 bit |
Errors/accuracies |
|
Temperature error (relative to output range), (+/-) | 25 °C ±0.5%, to 55 °C ±1% |
Interrupts/diagnostics/status information |
|
Alarms | Yes |
Diagnostics function | Yes |
Diagnostics indication LED |
|
·
● for status of the outputs · | Yes |
Standards, approvals, certificates |
|
CE mark | Yes |
CSA approval | Yes |
UL approval | Yes |
cULus | Yes |
FM approval | Yes |
RCM (formerly C-TICK) | Yes |
KC approval | Yes |
Marine approval | Yes |
Ambient conditions |
|
Free fall |
|
·
● Fall height, max. · | 0.3 m; five times, in product package |
Ambient temperature during operation |
|
·
● min. · | -20 °C |
·
● max. · | 60 °C |
·
● horizontal installation, min. · | -20 °C |
·
● horizontal installation, max. · | 60 °C |
·
● vertical installation, min. · | -20 °C |
·
● vertical installation, max. · | 50 °C |
Ambient temperature during storage/transportation |
|
·
● min. · | -40 °C |
·
● max. · | 70 °C |
Air pressure acc. to IEC 60068-2-13 |
|
·
● Storage/transport, min. · | 660 hPa |
·
● Storage/transport, max. · | 1 080 hPa |
Relative humidity |
|
·
● Operation at 25 ℃ without condensation, max. · | 95 % |
Pollutant concentrations |
|
·
● SO2 at RH < 60% without condensation · | S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60% condensation-free |
Mechanics/material |
|
Enclosure material (front) |
|
·
● Plastic · | Yes |
Dimensions |
|
Width | 38 mm |
Height | 62 mm |
Depth | 21 mm |
Weights |
|
Weight, approx. | 40 g |
