Article number | 6ES7222-1AD30-0XB0 | 6ES7222-1BD30-0XB0 |

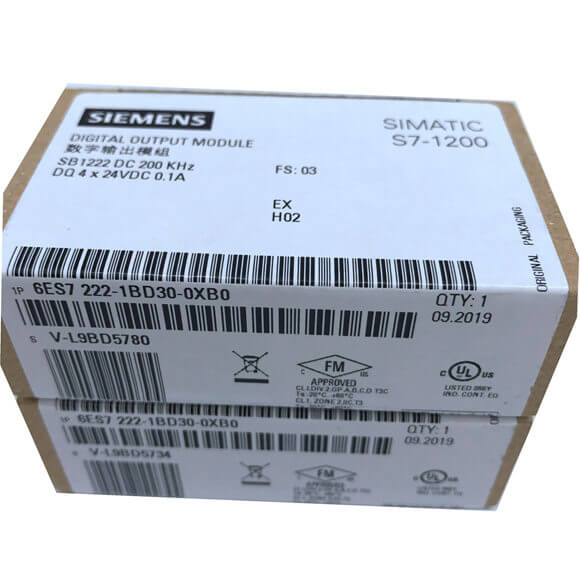

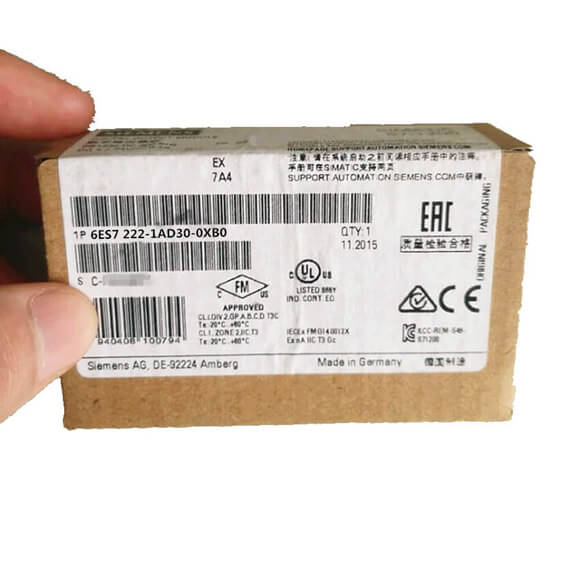

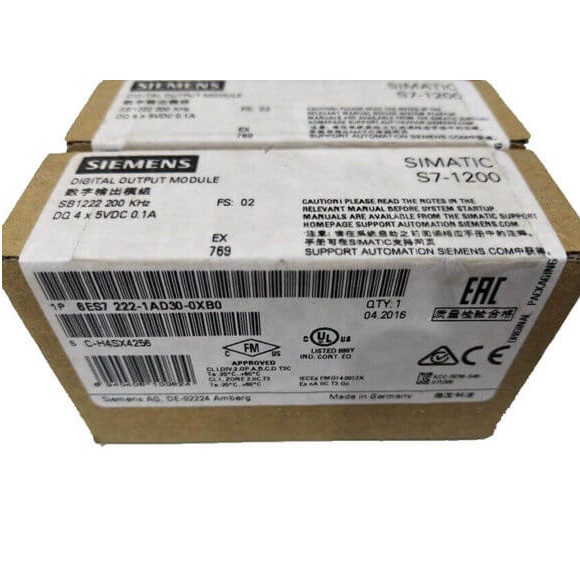

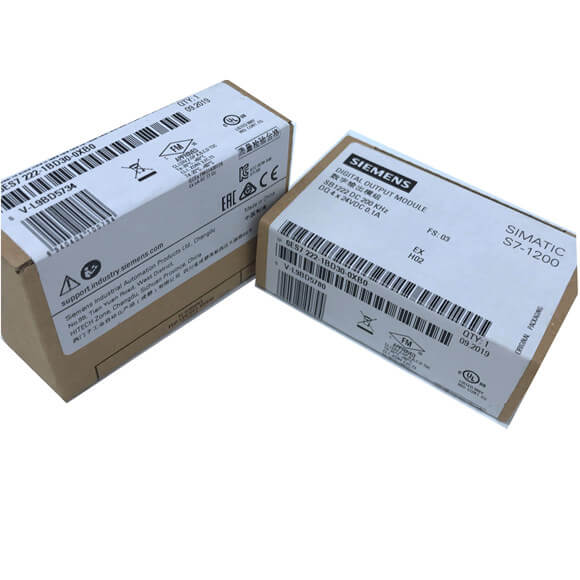

| Signal Board SB1222, 4 DQ 5VDC 200KHz | Signal Board SB1222, 4 DQ 24VDC 200KHz |
General information |
|
|
Product type designation | SB 1222, DQ 4×5 V DC 200 kHz | SB 1222, DQ 4×24 V DC 200 kHz |
Input current |
|
|
from backplane bus 5 V DC, typ. | 35 mA | 35 mA |
Power loss |
|
|
Power loss, typ. | 0.5 W | 0.5 W |
Digital outputs |
|
|
Number of digital outputs | 4; MOSFET, solid-state (current-sinking/current-sourcing) | 4; MOSFET, solid-state (current-sinking/current-sourcing) |
● in groups of | 4 | 4 |
Short-circuit protection | No | No |
Switching capacity of the outputs |
|
|
● with resistive load, max. | 0.1 A | 0.1 A |
Load resistance range |
|
|
● upper limit | 7 Ω | 11 Ω |
Output voltage |
|
|
● Rated value (DC) | 5 V | 24 V |
● for signal “0”, max. | 0.2 V | 1 V; with 10 kOhm load |
● for signal “1”, min. | L+ minus 0.7 V DC | L+ (-1.5 V) |
● for signal “1”, max. | 6 V |
|
Output current |
|
|
● for signal “1” permissible range, max. | 0.1 A | 0.1 A |
Cable length |
|
|
● shielded, max. | 50 m | 50 m |
Diagnostics indication LED |
|
|
● for status of the outputs | Yes | Yes |
Standards, approvals, certificates |
|
|
CE mark | Yes | Yes |
CSA approval | Yes | Yes |
UL approval | Yes | Yes |
cULus | Yes | Yes |
FM approval | Yes | Yes |
RCM (formerly C-TICK) | Yes | Yes |
KC approval | Yes | Yes |
Marine approval | Yes | Yes |
Ambient conditions |
|
|
Free fall |
|
|
● Fall height, max. | 0.3 m; five times, in product package | 0.3 m; five times, in product package |
Ambient temperature during operation |
|
|
● min. | -20 °C | -20 °C |
● max. | 60 °C | 60 °C |
● horizontal installation, min. | -20 °C | -20 °C |
● horizontal installation, max. | 60 °C | 60 °C |
● vertical installation, min. | -20 °C | -20 °C |
● vertical installation, max.
| 50 °C | 50 °C |
Ambient temperature during storage/transportation |
|
|
● min.
| -40 °C | -40 °C |
● max.
| 70 °C | 70 °C |
Air pressure acc. to IEC 60068-2-13 |
|
|
● Storage/transport, min.
| 660 hPa | 660 hPa |
● Storage/transport, max.
| 1 080 hPa | 1 080 hPa |
Relative humidity |
|
|
● Operation at 25 ℃ without condensation, max.
| 95 % | 95 % |
Mechanics/material |
|
|
Enclosure material (front) |
|
|
● Plastic
| Yes | Yes |
Dimensions |
|
|
Width | 38 mm | 38 mm |
Height | 62 mm | 62 mm |
Depth | 21 mm | 21 mm |
Weights |
|
|
Weight, approx. | 35 g | 35 g |
