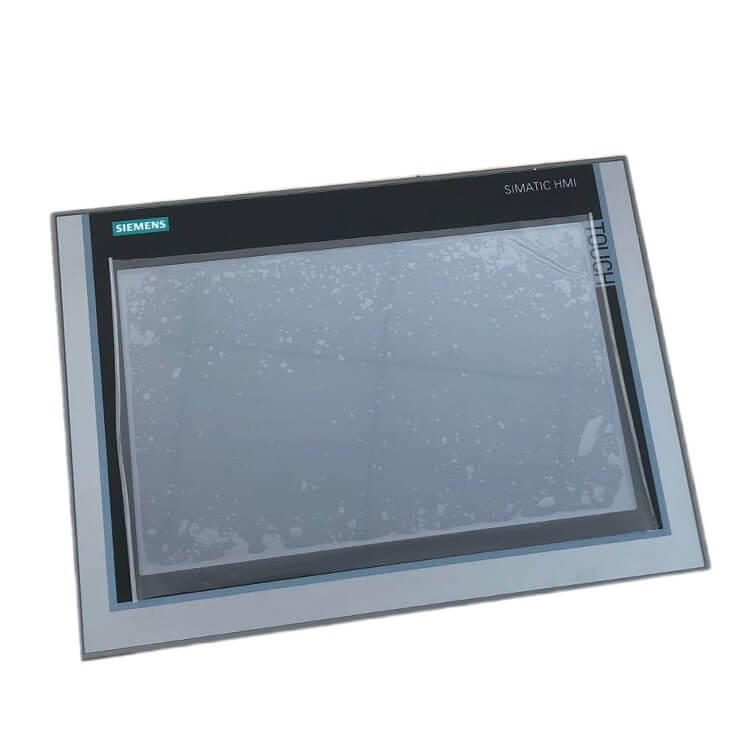

15 inch Siemens SIMATIC HMI TP1500 Comfort INOX Panel 6AV2144-8QC10-0AA0

Product type designation

TP1500 INOX

Design of display

TFT

Screen diagonal

15.4 in

Display width

331.2 mm

Display height

207 mm

Number of colors

16 777 216

● Horizontal image resolution

● Vertical image resolution

1 280 Pixel

800 Pixel

● MTBF backlighting (at 25 °C)

● Backlight dimmable

80 000 h

Yes; 0-100 %

● Function keys

— Number of function keys

0

● Design as touch screen

Yes

● Direct keys (touch buttons as S7 input I/O)

40

Mounting position

vertical

Mounting in portrait format possible

Yes

Mounting in landscape format possible

Yes

maximum permissible angle of inclination without external ventilation

35°

Type of supply voltage

DC

Rated value (DC)

24 V

permissible range, lower limit (DC)

19.2 V

permissible range, upper limit (DC)

28.8 V

Current consumption (rated value)

1.5 A

Starting current inrush I²t

0.5 A²·s

Active power input, typ.

36 W

Processor type

X86

Flash

Yes

RAM

Yes

Memory available for user data

24 Mbyte
