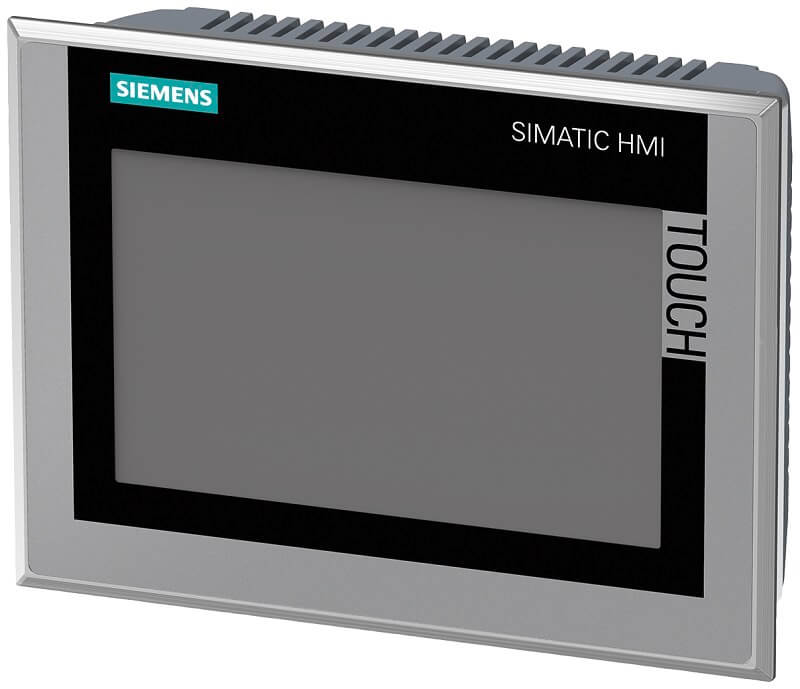

7 inch Siemens SIMATIC HMI TP700 Comfort INOX PCT Panel 6AV2144-8GC20-0AA0

Product type designation

TP700 Comfort INOX PCT

Design of display

TFT

Screen diagonal

7 in

Display width

152.4 mm

Display height

91.4 mm

Number of colors

16 777 216

● Horizontal image resolution

● Vertical image resolution

800 Pixel

480 Pixel

● MTBF backlighting (at 25 °C)

● Backlight dimmable

80 000 h

Yes; 0-100 %

● Function keys

— Number of function keys

0

● Keys with LED

● System keys

● Numeric keyboard

● alphanumeric keyboard

No No Yes;

Yes;

Onscreen Onscreen

keyboard keyboard

● Design as touch screen

● Design as multi-touch screen

● Monitor keyboard

Yes No

Yes

● DP direct LEDs (LEDs as S7 output I/O)

— F1…Fx

0

● Direct keys (keys as S7 input I/O)

— F1…Fx

0

● Direct keys (touch buttons as S7 input I/O)

32

Mounting position

vertical

Mounting in portrait format possible

No

Mounting in landscape format possible

Yes

maximum permissible angle of inclination without external ventilation

35°

Type of supply voltage

DC

Rated value (DC)

24 V

permissible range, lower limit (DC)

19.2 V

permissible range, upper limit (DC)

28.8 V

Current consumption (rated value)

0.5 A

Starting current inrush I²t

0.5 A²·s

Active power input, typ.

12 W
