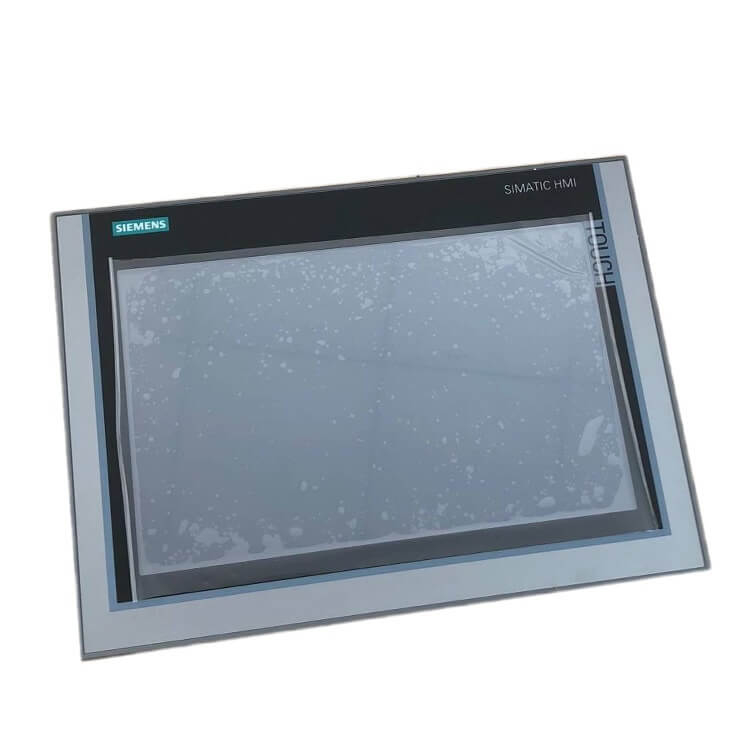

19 inch Siemens SIMATIC HMI TP1900 Comfort INOX Panel 6AV2144-8UC10-0AA0

Product type designation

TP1900 Comfort INOX

Design of display

TFT

Screen diagonal

18.5 in

Display width

409.8 mm

Display height

230.4 mm

Number of colors

16 777 216

● Horizontal image resolution

● Vertical image resolution

1 366 Pixel

768 Pixel

● MTBF backlighting (at 25 °C)

● Backlight dimmable

50 000 h

Yes; 0-100 %

● Function keys

— Number of function keys

0

● Keys with LED

● System keys

● Numeric keyboard

● alphanumeric keyboard

No No Yes

Yes

● Design as touch screen

Yes

● DP direct LEDs (LEDs as S7 output I/O)

— F1…Fx

0

● Direct keys (keys as S7 input I/O)

— F1…Fx

0

● Direct keys (touch buttons as S7 input I/O)

40

Mounting position

vertical

Mounting in portrait format possible

Yes

Mounting in landscape format possible

Yes

maximum permissible angle of inclination without external ventilation

35°

Type of supply voltage

DC

Rated value (DC)

24 V

permissible range, lower limit (DC)

19.2 V

permissible range, upper limit (DC)

28.8 V

Current consumption (rated value)

1.3 A

Starting current inrush I²t

0.5 A²·s

Active power input, typ.

32 W

Processor type

X86

RAM

Yes

Memory available for user data

24 Mbyte
