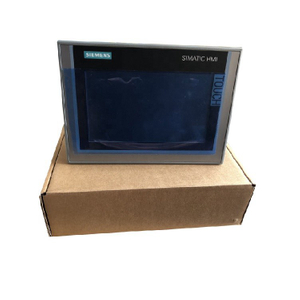

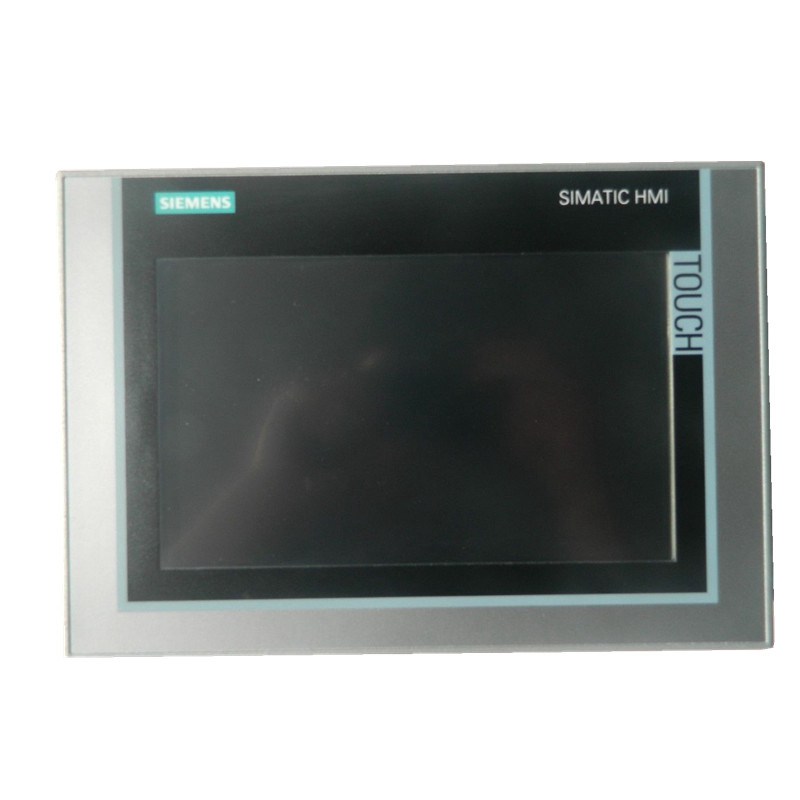

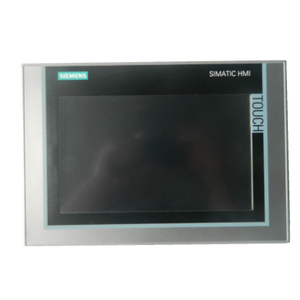

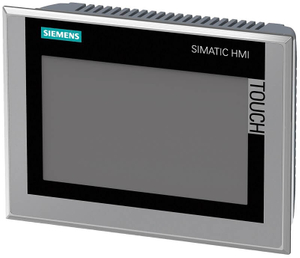

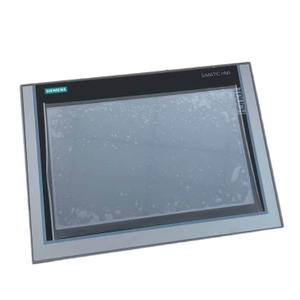

General information | 7 inch Siemens SIMATIC HMI TP700 Comfort Panel Touch Screen 6AV2124-0GC01-0AX0 |
|
|
Product type designation | TP700 Comfort |
Design of display | TFT |
Screen diagonal | 7 in |
Display width | 152.4 mm |
Display height | 91.4 mm |
Number of colors | 16 777 216 |
● Horizontal image resolution
● Vertical image resolution | 800 Pixel
480 Pixel |
● MTBF backlighting (at 25 °C)
● Backlight dimmable | 80 000 h
Yes; 0-100 % |
● Function keys
— Number of function keys |
0 |
— Number of function keys with LEDs
● Keys with LED ● System keys ● Numeric keyboard ● alphanumeric keyboard | 0
No No Yes; Yes; |
Onscreen Onscreen |
keyboard keyboard |
● Design as touch screen | Yes |
● DP direct LEDs (LEDs as S7 output I/O) |
|
— F1…Fx | 0 |
● Direct keys (keys as S7 input I/O) |
|
— F1…Fx | 0 |
● Direct keys (touch buttons as S7 input I/O) | 32 |
Mounting position | vertical |
Mounting in portrait format possible | Yes |
Mounting in landscape format possible | Yes |
maximum permissible angle of inclination without external ventilation | 35° |
Type of supply voltage | DC |
Rated value (DC) | 24 V |
permissible range, lower limit (DC) | 19.2 V |
permissible range, upper limit (DC) | 28.8 V |
Current consumption (rated value) | 0.5 A |
Starting current inrush I²t | 0.5 A²·s |
Active power input, typ. | 12 W |
Flash | Yes |
RAM | Yes |
Memory available for user data | 12 Mbyte |
