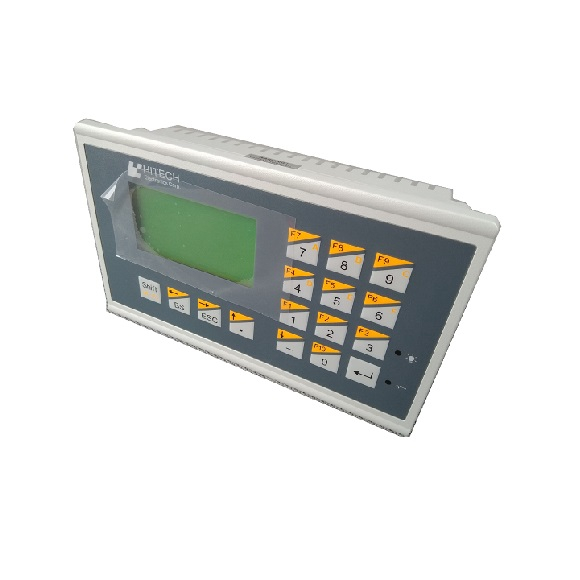

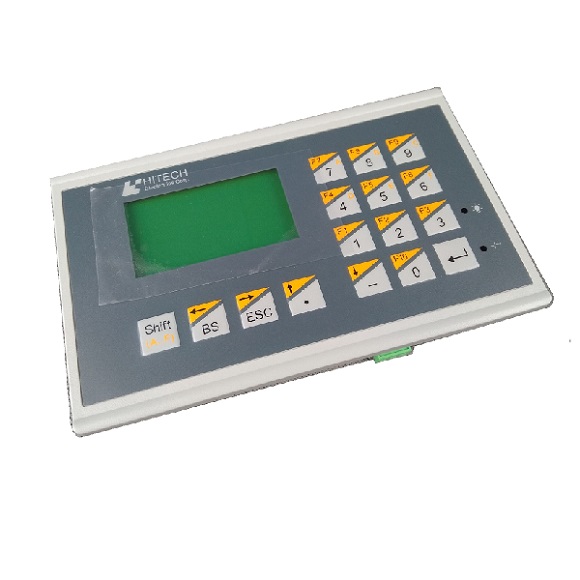

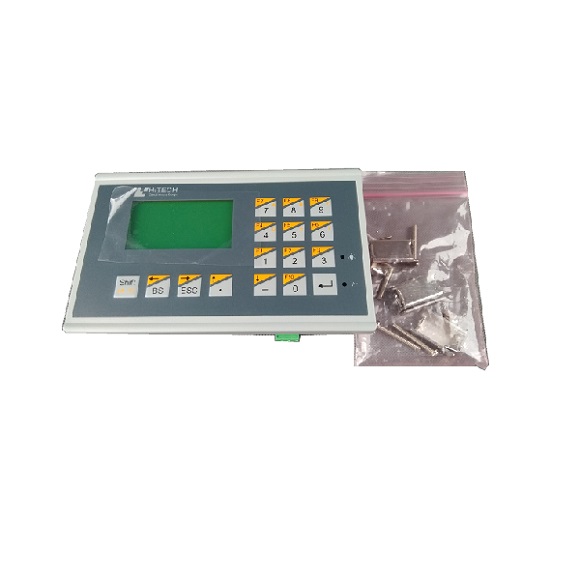

3" HITECH (Beijer) PWS operator Panels HMI PWS6300S-S



Series#: HITECH HMI



  • 16 shades of gray STN,COM Port x1 160 x80
  • 3″ HITECH (Beijer) PWS operator Panels HMI PWS6300S-S
  • We can Supply All series of HITECH (Beijer) HMI Touch screen.
  • 100% Original and new,In stock by HITECH (Beijer) Electronics。
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs



Availability:
Inquire

Product Description


Series#: HITECH HMI


  • 16 shades of gray STN,COM Port x1 160 x80

  • 3″ HITECH (Beijer) PWS operator Panels HMI PWS6300S-S

  • We can Supply All series of HITECH (Beijer) HMI Touch screen.


Download a Munual




 PWS6300S-S
LCD Type Mono STN LCD
Screen size 3” (diagonal)
Display resolution 160 x 80
Brightness (cd/m2) 35


Contrast adjustment Via VR


Display colors 16 shades of gray
Back light type LED
CPU 32-bit RISC
Back light life 50,000 hours
Operation Status LED PWR & COM2 LEDs


Touch screen —


Touch screen
(number of times) —




Keypad 16 mechanical switches
Application Flash ROM 4MB
RAM 128KB
Data/Recipe —
RTC
(w/rechargeable lithium battery) changeable lithium battery

—
Data storage (CF card)


COM1 —


COM2 9-pin female (RS232/RS422/RS485)


COM3 —
USB Host —
USB Device —


Multi-functional port —


Ethernet —

173.0 (W) x 105.5 (H) x 51.8 (D)
External dimensions (mm)
Cut-out dimensions (mm) 160.8 x 93.3
Supply voltage 24V DC ±15 %, < 8W
Front protection IP65
Certification CE,UL,FCC
Weight (kg) 0.37


Relevant documents
download Beijer-HITECH-HMI-PWS-Series-datasheet.pdf

Related Products

7.5
7.5" HITECH (Beijer) PWS operator Panels HMI PWS6800C-N
7" HITECH (Beijer) PWS operator Panels HMI PWS6710T-N
7" HITECH (Beijer) PWS operator Panels HMI PWS6710T-N
7" HITECH (Beijer) PWS operator Panels HMI PWS6710T-P
7" HITECH (Beijer) PWS operator Panels HMI PWS6710T-P
5.7" HITECH (Beijer) PWS operator Panels HMI PWS6600T-P
5.7" HITECH (Beijer) PWS operator Panels HMI PWS6600T-P
4.7" HITECH (Beijer) PWS operator Panels HMI PWS6560S-S
4.7" HITECH (Beijer) PWS operator Panels HMI PWS6560S-S
5.7" HITECH (Beijer) PWS operator Panels HMI PWS6620S-N
5.7" HITECH (Beijer) PWS operator Panels HMI PWS6620S-N

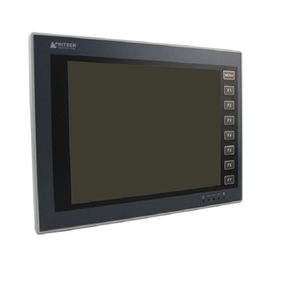

10.4" HITECH (Beijer) PWS operator Panels HMI PWS6A00T-N
10.4" HITECH (Beijer) PWS operator Panels HMI PWS6A00T-N
4.7" HITECH (Beijer) PWS operator Panels HMI PWS6500S-S
4.7" HITECH (Beijer) PWS operator Panels HMI PWS6500S-S
10.4" HITECH (Beijer) PWS operator Panels HMI PWS6A00T-P
10.4" HITECH (Beijer) PWS operator Panels HMI PWS6A00T-P

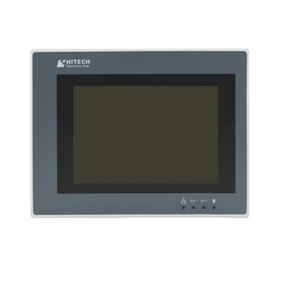

5.7" HITECH (Beijer) PWS operator Panels HMI PWS5610S-S
