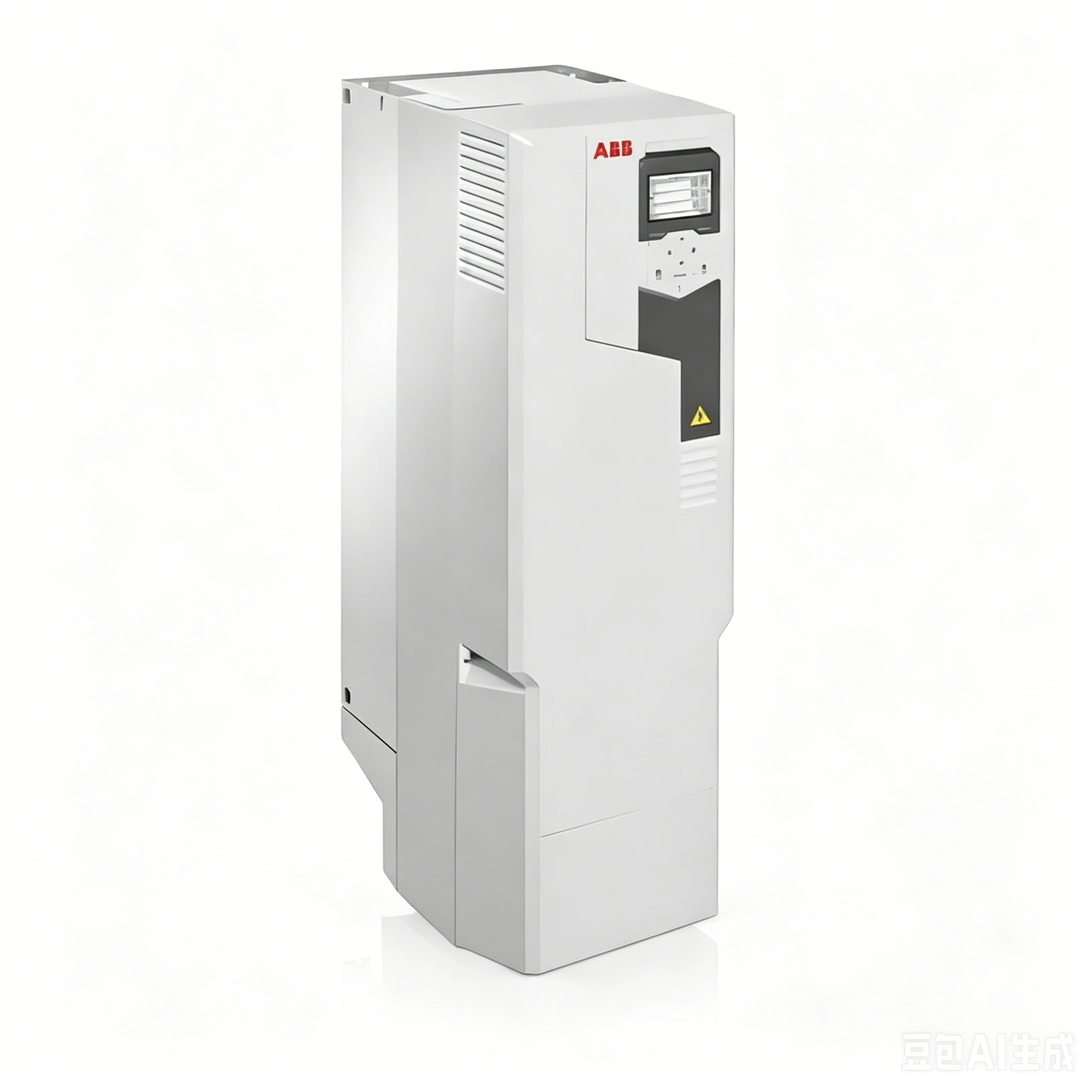

The ABB ACS580-01-018A-4 is a 7.5 kW (10 HP) general-purpose wall-mounted variable frequency drive designed for a wide range of industrial, HVAC, and processing applications. It delivers 17A rated output current (16.2A light duty, 12.6A heavy duty) with peak current of 22.7A. Operating with 380–480V three-phase input, the drive supports V/f, sensorless vector, and optional closed-loop vector control with output frequencies up to 500 Hz. The IP21 R2 frame unit includes 6 digital inputs, 2 analog inputs, 2 analog outputs, 3 relay outputs, and built-in RS485 Modbus RTU communication with optional expansion to Profinet, EtherNet/IP, EtherCAT, and PROFIBUS. The included Assistant Control Panel features multi-language support, real-time clock, wizards, and energy efficiency monitoring. With SIL3 Safe Torque Off, built-in web server, plug-in memory unit, and adaptive programming, the ACS580 is ideal for pumps, fans, compressors, conveyors, mixers, and centrifuges in light industries including food and beverage, plastics, textiles, and material handling.
Q: What is the difference between light-duty and heavy-duty ratings?
A: Light-duty (ILd) is for variable torque loads like pumps and fans (110% overload), delivering 7.5 kW at 16.2A. Heavy-duty (IHd) is for constant torque loads like conveyors and mixers (150% overload), delivering 5.5 kW at 12.6A.
Q: Does the ACS580-01-018A-4 include a control panel?
A: Yes, the Assistant Control Panel is included as standard. It supports multi-language display, commissioning wizards, parameter backup, fault logging, and energy efficiency monitoring.
Q: Can I monitor the drive remotely?
A: Yes. The drive has a built-in web server accessible via Ethernet, allowing remote monitoring and diagnostics from any web browser.
Q: What EMC category is this drive?
A: The drive complies with IEC 61800-3 Category C2, suitable for industrial environments and restricted domestic installations.
