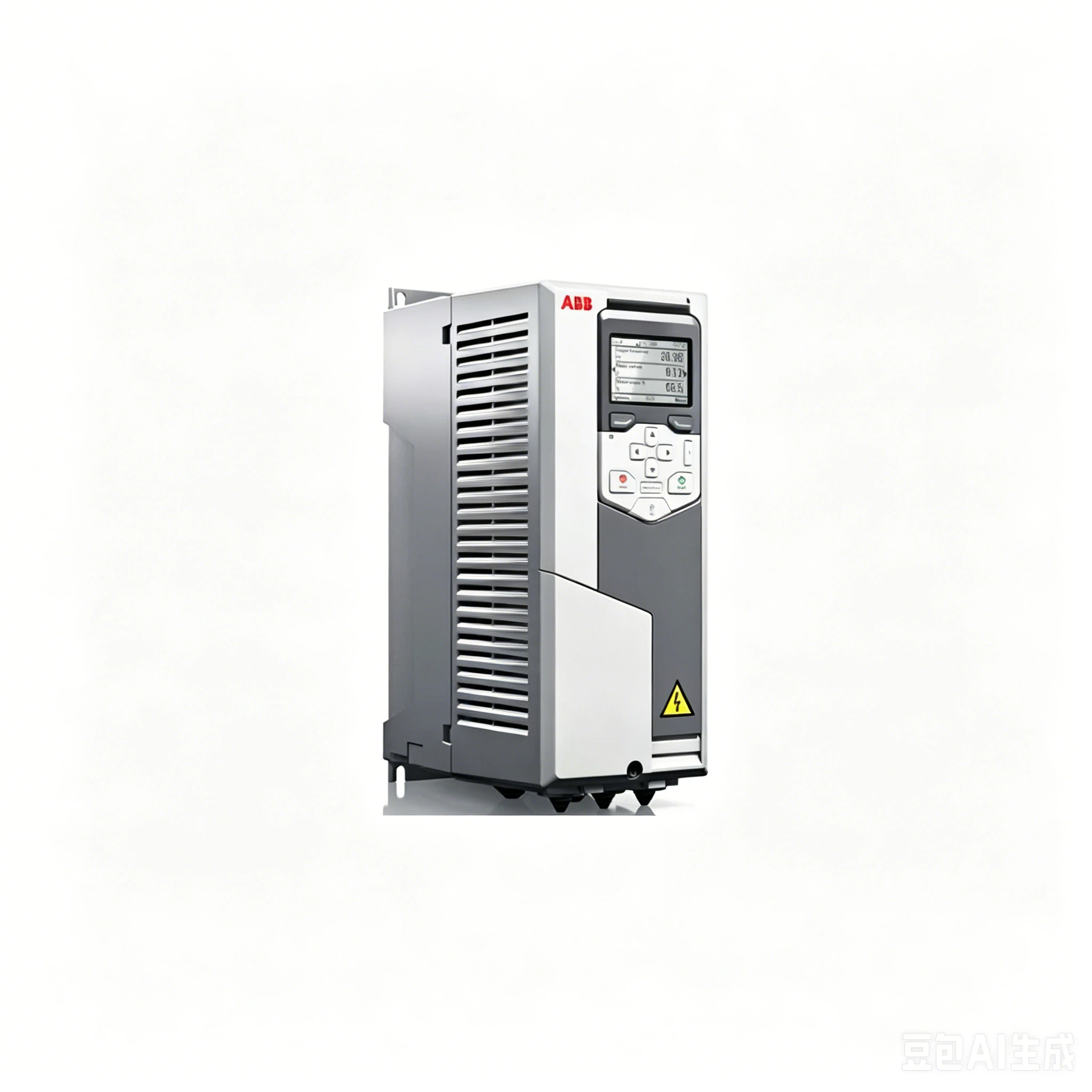

The ABB ACS580-01-05A7-4 is a compact 2.2 kW (3 HP) general-purpose wall-mounted variable frequency drive delivering 5.6A rated output current (5.3A light duty, 4A heavy duty) with 7.2A peak. Operating from 380–480V three-phase input (47.5–63 Hz), it supports V/f, sensorless vector, and optional closed-loop vector control up to 500 Hz. Housed in the smallest R1 frame (125 × 223 × 303 mm, 4.6 kg) with IP21 / NEMA Type 1 enclosure, it provides 6 digital inputs, 2 analog inputs, 2 analog outputs, and 3 relay outputs. Built-in RS485 Modbus RTU with optional fieldbus expansion (Profinet, EtherNet/IP, Modbus TCP, EtherCAT, DeviceNet, PROFIBUS) ensures flexible integration. The Assistant Control Panel with energy optimizer, built-in web server, plug-in memory unit, SIL3 STO, and IE2 efficiency make it ideal for compressors, conveyors, pumps, extruders, centrifuges, mixers, and fans in food and beverage, plastics, textiles, and material handling applications.
Q: What frame size is the ACS580-01-05A7-4?
A: It uses the R1 frame, the smallest in the ACS580 wall-mounted series, measuring 125 × 223 × 303 mm and weighing 4.6 kg.
Q: Can this drive run from a single-phase supply?
A: No, the ACS580-01-05A7-4 requires a 380–480V three-phase supply. For single-phase applications, consider the ACS580 series with single-phase input variants.
Q: What is the IP rating?
A: IP21 as standard (NEMA Type 1 equivalent), with optional IP55 enclosure available for harsher environments.
Q: Does it support energy optimization?
A: Yes, the drive includes an energy optimizer function that dynamically adjusts motor flux to minimize energy consumption at partial loads, with real-time energy monitoring on the control panel.
