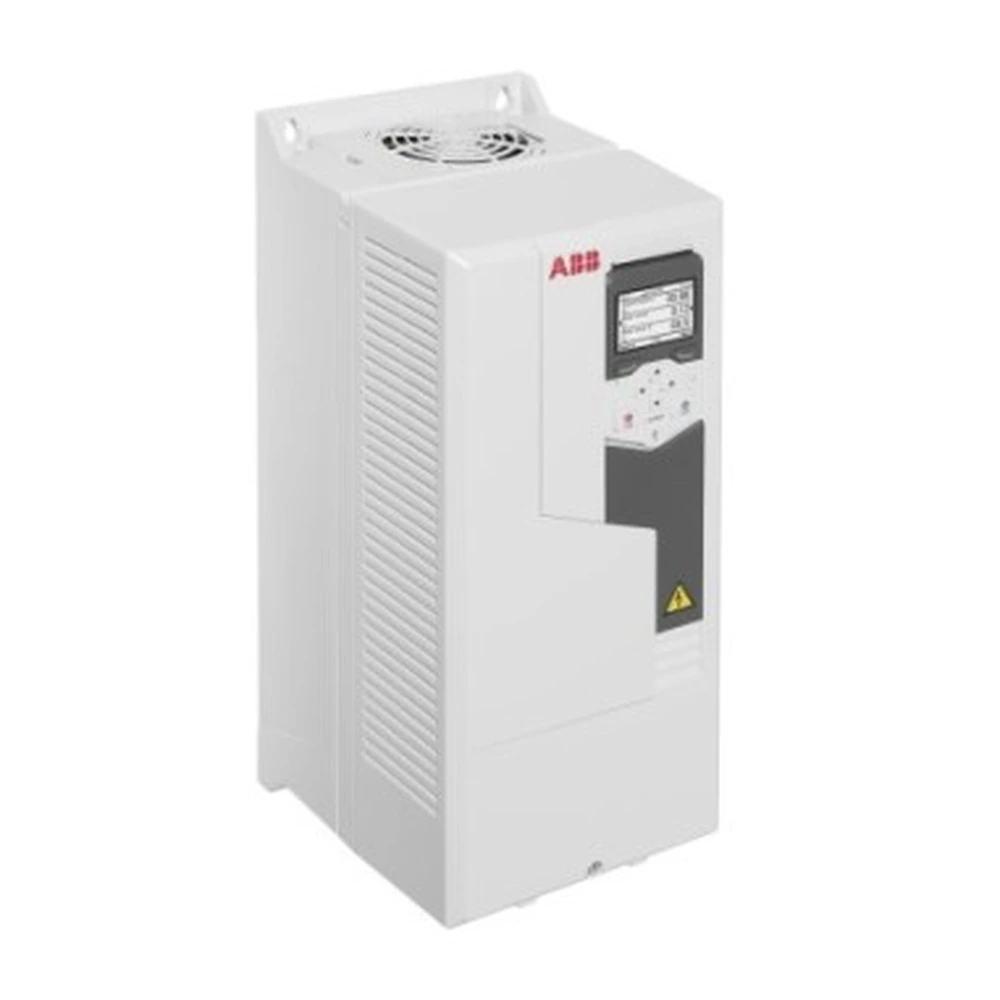

The ABB ACS580-01-033A-4 is a 15 kW (20 HP) general-purpose wall-mounted variable frequency drive with 32A rated output (30.4A light duty, 24.6A heavy duty) and 44.3A peak current. Operating from 380–480V three-phase input, it supports vector control, Direct Torque Control (DTC), and V/f modes with output frequencies up to 500 Hz. Built in an IP21 R3 frame, it includes 6 digital inputs, 2 analog inputs, 2 analog outputs, 3 relay outputs, and built-in RS485 Modbus RTU with multi-protocol fieldbus expansion. The Assistant Control Panel enables fast setup with wizards and real-time energy monitoring. With SIL3 STO, built-in web server, plug-in memory unit, and IE2 efficiency, it is well-suited for pumps, fans, compressors, conveyors, mixers, textile machinery, and food processing equipment.
Q: What is the difference between the R2 and R3 frame?
A: The R3 frame (ACS580-01-033A-4) supports higher power ratings up to 18.5 kW and has a larger physical size with greater cooling capacity than the R2 frame (up to 11 kW).
Q: Does the ACS580-01-033A-4 support Direct Torque Control (DTC)?
A: Yes, it supports DTC for precise motor torque and speed control without encoder feedback, providing excellent dynamic performance.
Q: What communication protocols are supported?
A: Built-in Modbus RTU. Optional: Profinet, EtherNet/IP, Modbus TCP, EtherCAT, DeviceNet, PROFIBUS, CAN, and TCP/IP.
