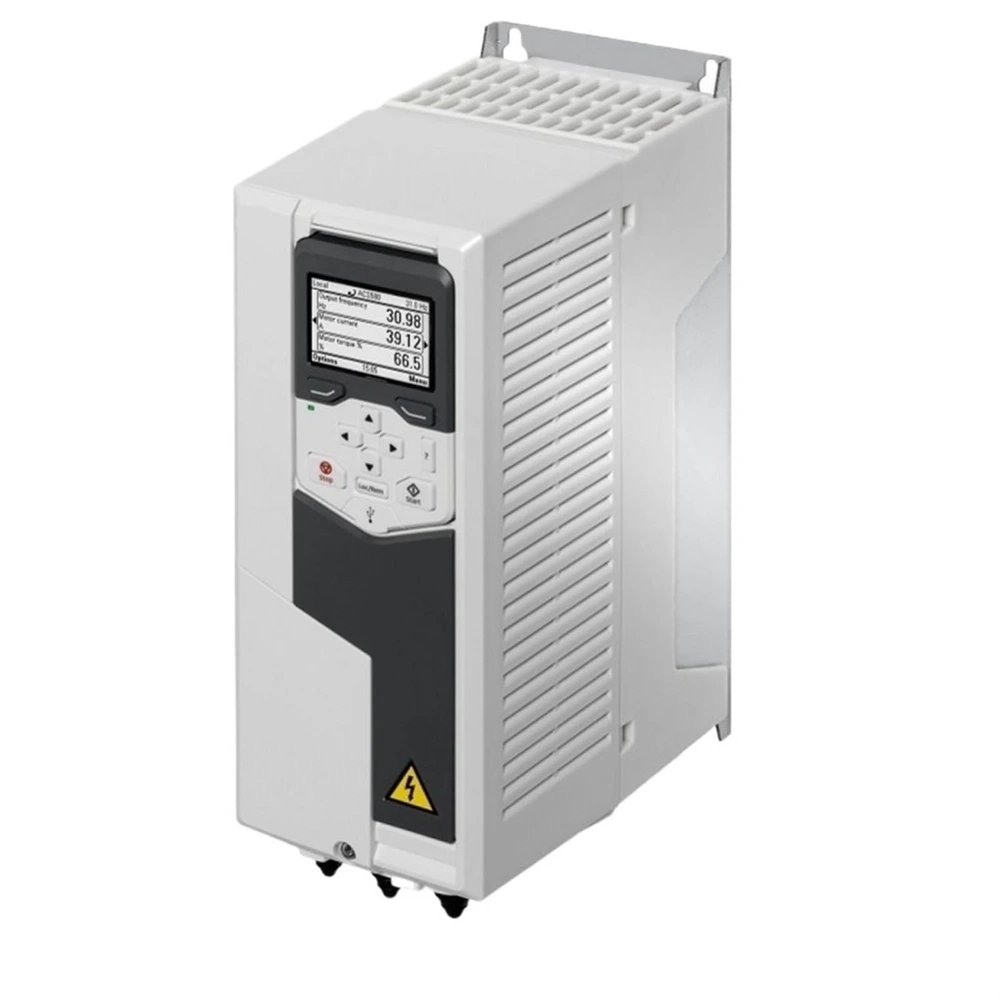

The ABB ACS580-01-026A-4 is an 11 kW (15 HP) general-purpose wall-mounted variable frequency drive delivering 25A rated output current (23.8A light duty, 17A heavy duty) with 30.6A peak. Operating from 380–480V three-phase supply, it supports V/f, sensorless vector, and optional closed-loop vector control up to 500 Hz. Housed in an IP21 R2 frame, the drive provides 6 digital inputs, 2 analog inputs, 2 analog outputs, 3 relay outputs, and built-in RS485 Modbus RTU with optional Profinet, EtherNet/IP, EtherCAT, and PROFIBUS expansion. The included Assistant Control Panel with energy optimizer, built-in web server, and plug-in memory unit ensures fast commissioning and comprehensive diagnostics. With SIL3 Safe Torque Off and IE2 efficiency, it is ideal for pumps, fans, compressors, conveyors, mixers, centrifuges, and extruders.
Q: Can the ACS580-01-026A-4 handle heavy starting torque?
A: Yes. At heavy-duty rating, it delivers 150% overload for 60 seconds, making it suitable for conveyors, mixers, and extruders with high starting torque requirements.
Q: What is the peak current rating?
A: The drive can deliver up to 30.6A peak current for short durations.
Q: Does this model support Ethernet-based fieldbus protocols?
A: Yes, with optional adapters it supports Profinet, EtherNet/IP, Modbus TCP, and EtherCAT.
