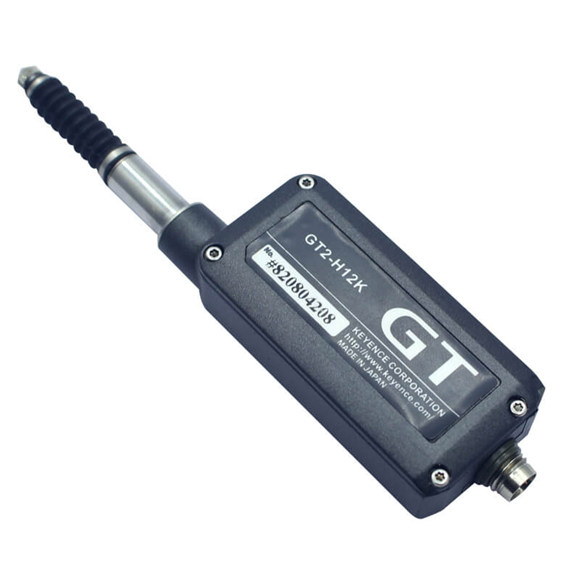

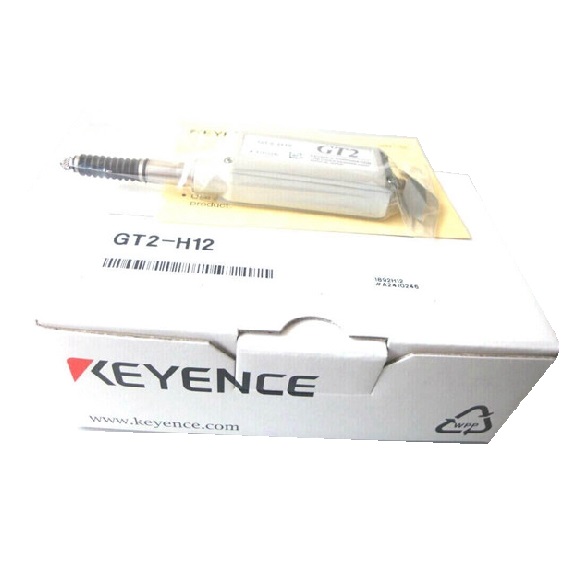

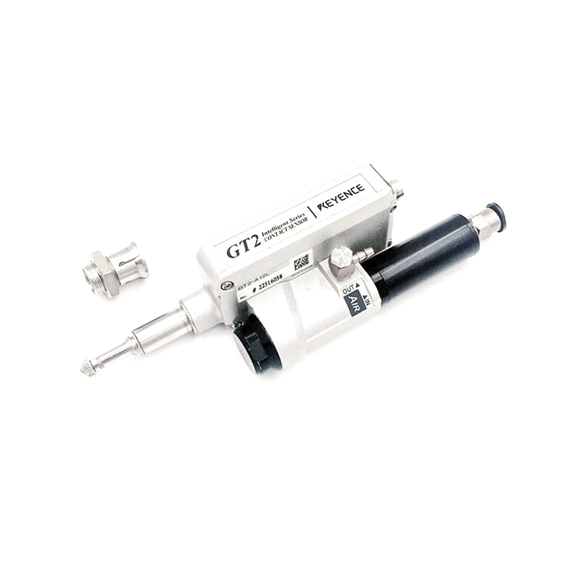

| Model | GT2-H12K | GT2-H12KF | GT2-H12KL | GT2-H12KLF | GT2-H12 | GT2-H12F | GT2-H12L | GT2-H12LF |
| Detection system | Scale Shot System, absolute (no tracking errors) type |
|
|
|
|
|
|
|
| Measuring range | 12 mm 0.47″ |
|
|
|
|
|
|
|
| Resolution | 0.1 μm | 0.5 μm |
|
|
|
|
|
|
| Indicated accuracy*1 | 1 μm (P-P) | 2 μm (P-P) |
|
|
|
|
|
|
| Downward mounting | 1.0 N | 0.4 N | 1.0 N | 0.4 N |
|
|
|
|
| Side mounting | 0.9 N | 0.3 N | 0.9 N | 0.3 N |
|
|
|
|
| Upward mounting | 0.8 N | 0.2 N | 0.8 N | 0.2 N |
|
|
|
|
| Sampling cycle | 1 ms |
|
|
|
|
|
|
|
| Mechanical response*1 | 10 Hz | 4 Hz | 10 Hz | 4 Hz |
|
|
|
|
| Operation indicator light | 2-color LED (red, green) |
|
|
|
|
|
|
|
| Enclosure rating | IP67 (IEC) | – | IP67 (IEC) | – |
|
|
|
|
| Ambient temperature | -10 to +55°C 14 to 131°F (No freezing) |
|
|
|
|
|
|
|
| Relative humidity | 35 to 85% RH (No condensation) |
|
|
|
|
|
|
|
| Vibration | 10 to 55 Hz Double amplitude 1.5 mm 0.06″ in the X, Y, Z axis directions respectively, 2 hours |
|
|
|
|
|
|
|
| Impact resistance | 1000 m/s2 (IEC60068-2-27) |
|
|
|
|
|
|
|
| Materials Main body | Main body case: die-cast zinc, Indicator: polyarylate (PAR) |
|
|
|
|
|
|
|
| Dustboot | NBR | – | NBR | – |
|
|
|
|
| Contact*3 | SUS304, cemented tungsten carbide | SUS304, SUS440C |
|
|
|
|
|
|
| Sensor head cable | Optional (connect to the M8 connector) |
|
|
|
|
|
|
|
| Weight (not including cable) | Approx. 95 g | Approx. 100 g | Approx. 95 g | Approx. 100 g | Approx. 95 g | Approx. 100 g | Approx. 95 g | Approx. 100 g |
