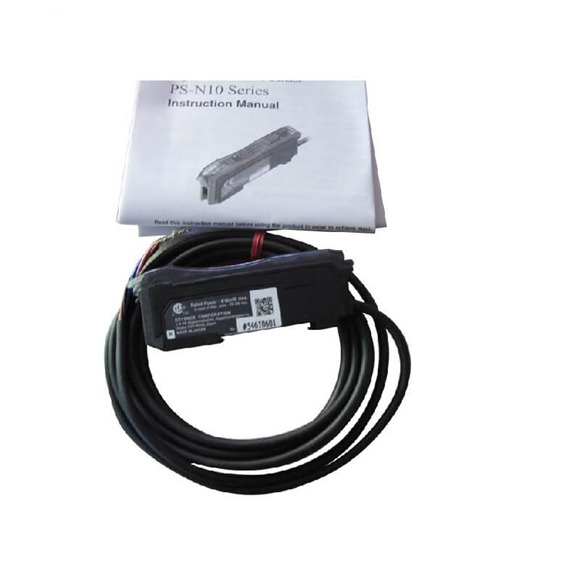

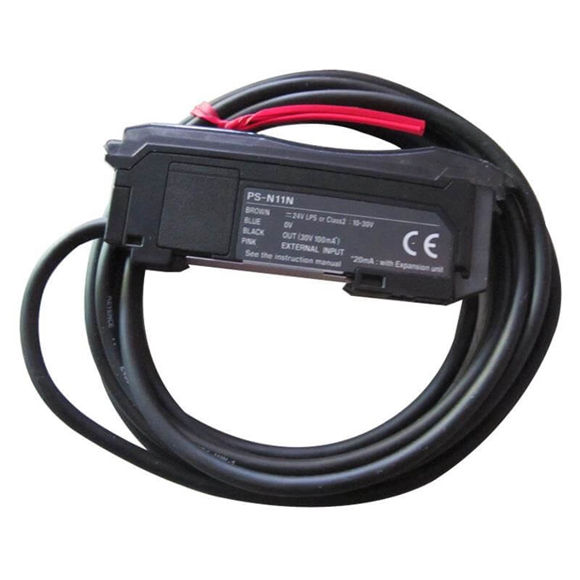

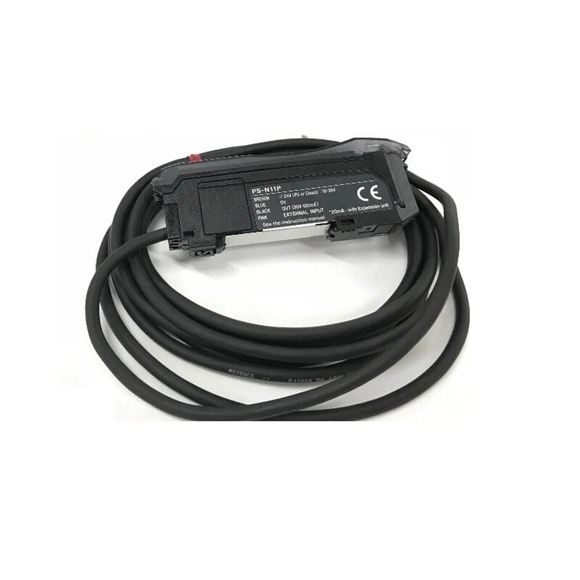

| Type | Cable | M8 connector | Zero line |
| Main/Expansion unit | Main unit | Expansion unit | Main unit | Expansion unit | Expansion unit |
| NPN | PS-N11N | PS-N12N | PS-N11CN | PS-N12CN | PS-N10 |
| PNP | PS-N11P | PS-N12P | PS-N11CP | PS-N12CP |
| Control outputs | 1 output | 1 output | None*1 |
| External input | 1 input | None | 1 input | 1 input | None |
| Response time | 500 μs (TURBO)/1 ms (SUPER)/4 ms (ULTRA)/16 ms (MEGA) |
| Output selection | LIGHT-ON/DARK-ON |
| Timer function | Timer OFF/OFF-delay timer/ON-delay timer/One-shot timer, Timer duration selectable: 1 ms to 9999 ms, Maximum error against the setting value: ±10% max. |
| NPN output | NPN open collector 30 V, (without expansion) 100 mA max., (with expansion) 20 mA max,
residual voltage 1 V max. (when the out current is 10 mA or less)/2 V max. (when the output current is 10 to 100 mA) |
| PNP output | PNP open collector 30 V, (without expansion) 100 mA max., (with expansion) 20 mA max,
residual voltage 1.2 V max. (when the output current is 10 mA or less)/2.2 V max. (when the output current is 10 to 100 mA) |
| External input | Input time 2 ms (ON)/20 ms (OFF) or more*2 |
| Expansion units | Up to 16 units (Up to 17 units including 1 main unit can be connected in total.) |
| Protection circuit | Reverse polarity protection, Over-current protection, Surge absorber |
| Number of interference prevention units | 4 for TURBO/SUPER/ULTRA/MEGA (When set to DOUBLE, the number of interference-prevention units will be doubled) |
| Power voltage | 24 VDC (operating voltage 10-30 VDC (with ripple)), ripple (P-P) 10% or less, Class 2 or LPS |
| Power consumption NPN | Normal: 810 mW or less (28 mA max. at 24 V, 34 mA max. at 12 V)
Eco on mode: 700 mW or less (24 mA max. at 24 V, 27 mA max. at 12 V) Eco Full mode: 490 mW or less (17 mA max. at 24 V, 20 mA max. at 12 V) |
|
PNP | Normal: 860 mW or less (30 mA max. at 24 V, 35 mA max. at 12 V)
Eco on mode (ALL): 750 mW or less (26 mA max. at 24 V, 28 mA max. at 12 V) Eco Full mode: 540 mW or less (19 mA max. at 24 V, 21 mA max. at 12 V) |
— |
|
Ambient temperature | -20°C to +55°C (-4°F to +131°F) (No freezing)*3 |
| Relative humidity | 35 to 85% RH, (No condensation) |
| Vibration resistance | 10 to 55 Hz, double amplitude: 1.5 mm 0.06′, 2 hours each in the X, Y and Z axis |
| Shock resistance | 500 m/s2 3 times for each of X,Y and Z axis |
| Material Case | Main unit and cover material: Polycarbonate |
| Cable | PVC |
| Case size | H 32.6 mm 1.28″× W 9.8 mm 0.39″ × L 78.7 mm 3.1″ |
| Weight | Approx. 75 g | Approx. 65 g | Approx. 20 g | Approx. 20 g | Approx. 20 g |
