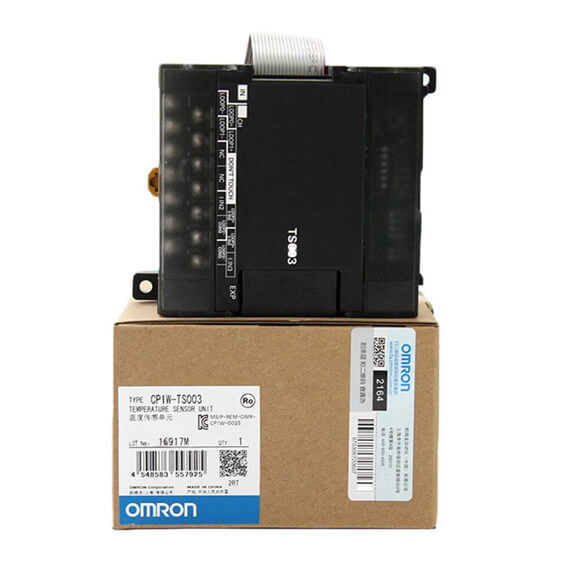

Omron PLC Module Temperature Sensor CP1W-TS003/TS004



Series#: Omron PLC



  • Omron PLC Module Temperature Sensor CP1W-TS003/TS004
  • Omron PLC Controller Module CP-series
  • We can Supply Omron automation parts,such as Omron PLC,Omron Servo Motor,Omron HMI,Omron VFD and Omron Relay and Omron Sensor and ect.
  • 100% Original and new,In stock by Omron Automation
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Availability:
Inquire

Specification

Series#: Omron PLC

  • Omron PLC Module Temperature Sensor CP1W-TS003/TS004

  • Omron PLC Controller Module CP-series

  • At Coberry we can provide you with a brand Factory new covered by the Original Manufacturers Warranty.

  • Buying a Used Parts can offer great savings over brand new

  • Buying a refurbished can offer great savings over brand new


Download A Munual


Item CP1W-TS003


Temperature sensors

 Thermocouples or analog input *1

Switchable between K and J, but same type must be used for all inputs.
Number of inputs Thermocouples inputs :4 , Analog inputs :2


Two analog inputs can be shared with thermocouples inputs.
Open-circuit detection function Supported
Averaging function Unsupported
Conversion time 250 ms for 4 input points
Converted temperature data 16-bit binary data (4-digit hexadecimal)
Converted AD data 16-bit binary data (4-digit hexadecimal)
Isolation Photocouplers between all temperature and analog input signals
Current consumption 5 VDC: 70 mA max., 24 VDC: 30 mA max.

Item CP1W-TS004


Temperature sensors

 Thermocouples

Switchable between K and J, but same type must be used for all inputs.
Number of inputs 12


Accuracy 25°C

 (The larger of ±0.5% of converted value or ±2°C) ±1 digit max. *1
0 to 55°C (The larger of ±1% of converted value or ±4°C) ±1 digit max. *2
Conversion time 500 ms for 12 input points
Converted temperature data 16-bit binary data (4-digit hexadecimal)
Isolation Photocouplers between all temperature and analog input signals
Current consumption 5 VDC: 80 mA max., 24 VDC: 50 mA max.


Relevant documents
download Omron-CP1H-Datasheet.pdf

Related Products

Mitsubishi iQ-R Power supply Module R61P R63P
Mitsubishi iQ-R Power supply Module R61P R63P
Mitsubishi CC Link Module AJ65SBTB1-8D AJ65SBTB3-8D
Mitsubishi CC Link Module AJ65SBTB1-8D AJ65SBTB3-8D
Mitsubishi MELSEC iQ-R Series PLC Module R04CPU R08CPU
Mitsubishi MELSEC iQ-R Series PLC Module R04CPU R08CPU
Mitsubishi iQ-R CPU PLC Main base Module R35B R38B R312B
Mitsubishi iQ-R CPU PLC Main base Module R35B R38B R312B
Mitsubishi CC Link Module AJ65SBTB2-8T AJ65SBTB2-16T
Mitsubishi CC Link Module AJ65SBTB2-8T AJ65SBTB2-16T
Mitsubishi CC Link PLC Module AJ65SBTB2N-8S AJ65SBTB2N-16S
Mitsubishi CC Link PLC Module AJ65SBTB2N-8S AJ65SBTB2N-16S
Mitsubishi CC Link Module AJ65SBTB2N-8R AJ65SBTB2N-16R
Mitsubishi CC Link Module AJ65SBTB2N-8R AJ65SBTB2N-16R
Omron PLC CP-series Output Unit Module CP1W-32ER CP1W-32ET CP1W-32ET1
Omron PLC CP-series Output Unit Module CP1W-32ER CP1W-32ET CP1W-32ET1
Omron PLC CS1D-H CPU Unit (For Duplex CPU Systems) CS1D-CPU68HA/CPU67HA
Omron PLC CS1D-H CPU Unit (For Duplex CPU Systems) CS1D-CPU68HA/CPU67HA
Mitsubishi CC Link Module AJ65SBTB1-16D AJ65SBTB1-16D1
Mitsubishi CC Link Module AJ65SBTB1-16D AJ65SBTB1-16D1
Mitsubishi CC Link PLC Module AJ65SBTB1-16DT AJ65SBTB1-16DT1 AJ65SBTB1-32DT1
Mitsubishi CC Link PLC Module AJ65SBTB1-16DT AJ65SBTB1-16DT1 AJ65SBTB1-32DT1

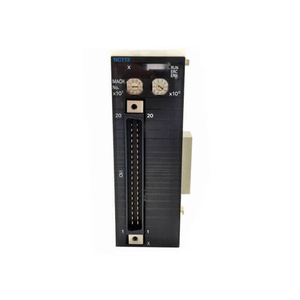

Omron PLC Position Control Units Module CJ1W-NC113 CJ1W-NC213 CJ1W-NC413
Omron PLC Position Control Units Module CJ1W-NC113 CJ1W-NC213 CJ1W-NC413

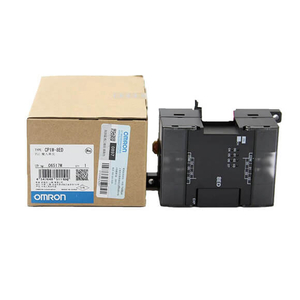

Omron PLC CP-series Input Unit Module CP1W-8ED
Omron PLC CP-series Input Unit Module CP1W-8ED

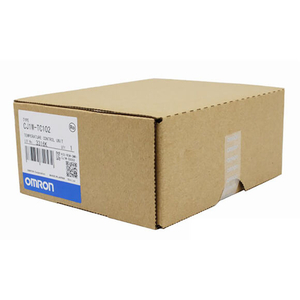

Omron PLC Temperature Control Units CJ1W-TC101 CJ1W-TC102/TC103/TC104
