Panasonic Servo Motor MINAS A5 5KW MDME502GCH/MDME502GCHM



Series#: Panasonic Servomotor



  • Panasonic Servo Motor MINAS A5 5KW MDME502GCH/MDME502GCHM
  • We can Supply Panasonic electric automation parts,such as Panasonic PLC,Panasonic Servo Motor&Panasonic servo drive,Panasonic VFD,Panasonic Relay and Panasonic Sensor.
  • 100% Original and new,In stock by Panasonic Electric
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs



Availability:
Inquire

Product Description



Series#: Panasonic Servomotor


  • Panasonic Servo Motor MINAS A5 5KW MDME502GCH/MDME502GCHM

  • We can Supply Panasonic electric automation parts,such as Panasonic PLC,Panasonic Servo Motor&Panasonic servo drive,Panasonic VFD,Panasonic Relay and Panasonic Sensor.


Download A Munual


Panasonic Servo Motor MINAS A5 5KW MDME AC200 V
Motor model ＊1 IP65 MDME502GC□ MDME502SC□
IP67 MDME502G1□ MDME502S1□
A5Ⅱ, A5 series MFD◇TB3A2
A5ⅡE, A5E series MFD◇TB3A2E –
Frame symbol F-frame
Power supply capacity (kVA) 7.5
Rated output (W) 5000
Rated torque (N•m) 23.9
Momentary Max. peak torque (N•m) 71.6
Rated current (A(rms)) 25.9
Max. current (A(o-p)) 110
Regenerative brake frequency (times/min) Note)1


Without option

 120
 DV0P4285×2 No limit Note)2
Rated rotational speed (r/min) 2000
Max. rotational speed (r/min) 3000
Moment of inertia


of rotor (×10−4 kg•m2)

Without brake

 48.0
With brake 53.3
Recommended moment of inertia ratio of the load and the rotor Note)3 10 times or less
Rotary encoder specifications Note)5 20-bit Incremental 17-bit Absolute
Resolution per single turn 1048576 131072


Relevant documents
download Panasonic-minas-a5-servomotor-datasheet.pdf

Related Products

Panasonic Servo Motor MINAS A6 400w MSMF042L1U2M
Panasonic Servo Motor MINAS A6 400w MSMF042L1U2M
Panasonic Servo Motor MINAS A5 3kW3 MSME302GCG/MSME302GCGM
Panasonic Servo Motor MINAS A5 3kW3 MSME302GCG/MSME302GCGM

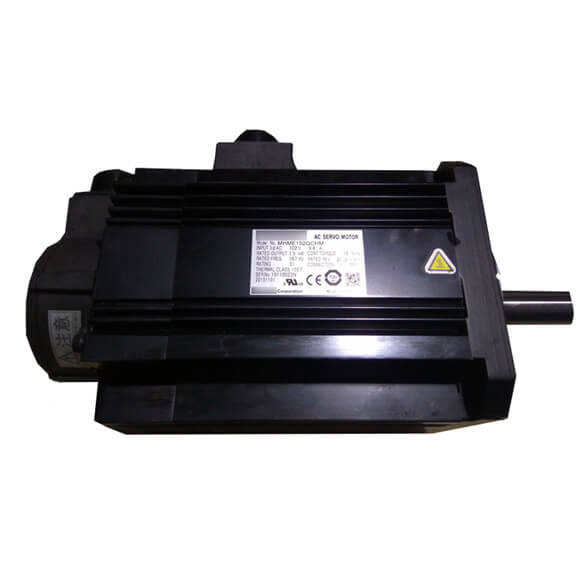

Panasonic Servo Motor MINAS A5 1.5kW Break MHME152GCHM/MHME152GCH/G1H/GCDM
