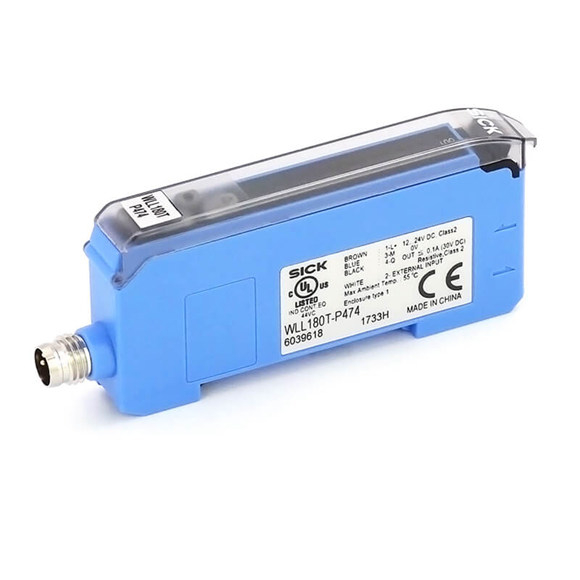

Sick Fiber-optic sensors WLL180T-N474 WLL180T-N473 WLL180T-N432

Sick Fiber-optic sensors WLL180T-N474 WLL180T-N473 WLL180T-N432
We can Supply all kinds of Sick sensor parts,such as Sick Capacitive Proximity Sensors,Sick Contrast Sensors,Sick Fork Sensors,Sick Magnetic Proximity Sensors,Sick Photoelectric Sensors,Sick Distance Sensors and Sick Fiber Sensors.
All parts are 100% Original and new in stock by Sick and fast delivery time within 1 day
100% after sale service and technology Support
MOQ: 1pcs

Product Description

Type	Stand-alone
Dimensions (W x H x D)	10.5 mm x 34.6 mm x 71.9 mm
Housing design (light emission)	Rectangular
Sensing range max.	0 mm … 1,000 mm, Through-beam system 1) 2)
Sensing range	0 mm … 400 mm, Proximity system 3) 4) 0 m … 850 mm, Through-beam system 1) 2)
Focus	5)
Type of light	Infrared light
Light source	LED 6)
Angle of dispersion	Approx. 65° 5)
Wave length	1,450 nm
Adjustment	Menu-controlled Single teach-in button Cable
Delay time	Programmable, 0 ms … 9,999 ms
Time functions	Without time delay Off delay On delay ON and OFF delay One shot
Indication	Display
Display	LED status display / 2x 4-character digital dual displays, Set value (green indicator) and actual value (red indicator) are displayed simultaneously, display of parameters
Special features	Glass fibers necessary

Supply voltage	12 V DC … 24 V DC 1)
Ripple	≤ 10 % 2)
Power consumption	50 mA 3)
Switching output	NPN
Number of switching outputs	1
Switching mode	Light/dark switching
Switching mode selector	Manually selectable
Output current Imax.	≤ 100 mA
Response time	≤ 16 µs, ≤ 70 µs, ≤ 250 µs, ≤ 2,000 µs, ≤ 8,000 µs 4)
Switching frequency	31.2 kHz 7.1 kHz 2 kHz 250 Hz 62.5 Hz
Time functions	Without time delay Off delay On delay ON and OFF delay One shot
Delay time	Programmable, 0 ms … 9,999 ms
Input	Multifunctional input MF
Connection type	Male connector M8, 4-pin
Circuit protection	A 5) B 6) C 7) D 8)
Protection class	III
Weight	20 g
Housing material	Plastic, ABS/PC
Enclosure rating	IP50 9)
Items supplied	BEF-WLL180 mounting bracket
Ambient operating temperature	–25 °C … +55 °C
Ambient storage temperature	–40 °C … +70 °C
UL File No.	NRKH.E300503 & NRKH7.E300503
