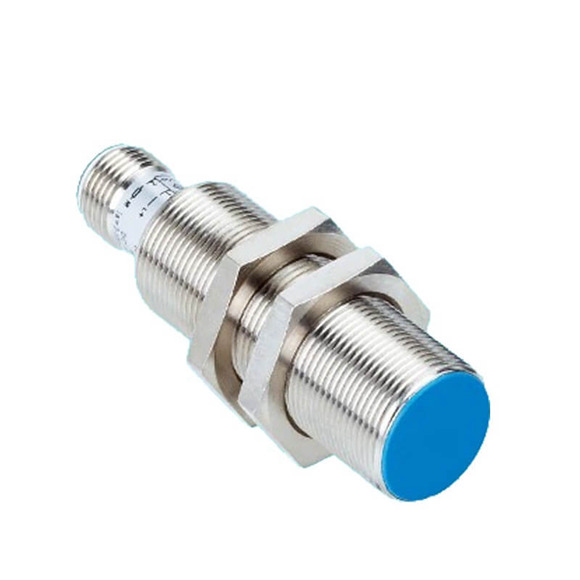

Sick Magnetic proximity sensors IM30-15NDS-ZC1/-ZW1 IM30-15NPS-ZW1/-ZC1

Series#: Sick Magnetic proximity sensors

Sick Magnetic proximity sensors IM30-15NDS-ZC1/-ZW1 IM30-15NPS-ZW1/-ZC1
We can Supply all kinds of Sick sensor parts,such as Sick Capacitive Proximity Sensors,Sick Contrast Sensors,Sick Fork Sensors,Sick Magnetic Proximity Sensors,Sick Photoelectric Sensors,Sick Distance Sensors and Sick Fiber Sensors.
All parts are 100% Original and new in stock by Sick and fast delivery time within 1 day
100% after sale service and technology Support
MOQ: 1pcs

Availability:



Inquire

Product Description

Series#: Sick Magnetic proximity sensors

Sick Magnetic proximity sensors IM30-15NDS-ZC1/-ZW1 IM30-15NPS-ZW1/-ZC1
We can Supply all kinds of Sick sensor parts,such as Sick Capacitive Proximity Sensors,Sick Contrast Sensors,Sick Fork Sensors,Sick Magnetic Proximity Sensors,Sick Photoelectric Sensors,Sick Distance Sensors and Sick Fiber Sensors.

Download a Munual

Housing	Cylindrical thread design
Housing	Standard
Thread size	M30 x 1.5
Diameter	Ø 30 mm
Sensing range Sn	15 mm
Safe sensing range Sa	12.15 mm
Installation type	Non-flush
Switching frequency	150 Hz
Connection type	Male connector M12, 4-pin
Output function	NO
Electrical wiring	DC 2-wire
Enclosure rating	IP67 1)

Supply voltage	10 V DC … 30 V DC
Ripple	≤ 10 %
Voltage drop	≤ 2.8 V 1)
Time delay before availability	≤ 50 ms
Hysteresis	2 % … 10 %
Reproducibility	≤ 2 % 2) 3)
Temperature drift (of Sr)	± 10 %
EMC	According to EN 60947-5-2
Continuous current Ia	≤ 100 mA
Off-state current	≤ 0.8 mA
Minimum load current	≥ 3 mA
Short-circuit protection	✔
Reverse polarity protection	✔
Shock and vibration resistance	30 g, 11 ms / 10 … 55 Hz, 1 mm
Ambient operating temperature	–25 °C … +70 °C
Housing material	Brass, Nickel-plated brass
Sensing face material	Plastic
Housing length	76 mm
Thread length	38 mm
Tightening torque, max.	60 Nm

Relevant documents

dataSheet_IM30-15NDS-ZC1_6020332_en.pdf
