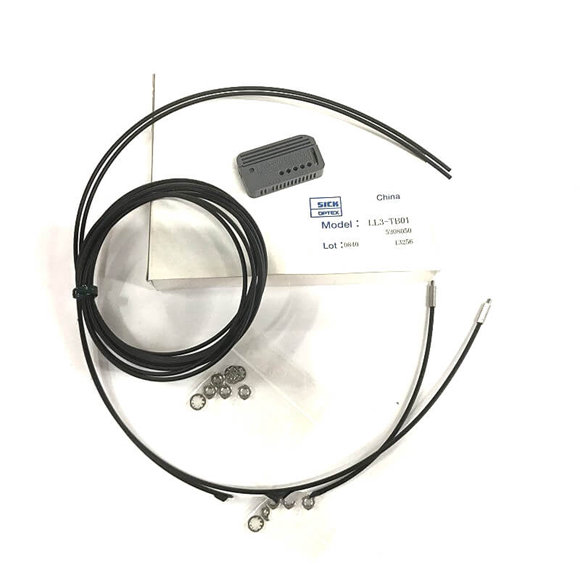

| Device type | Fibers |
| Detection principle | Through-beam system (consisting of a sender and a receiver) |
| For fiber-optic sensor | GLL170(T), WLL180T, WLL24 Ex |
| Fiber length | 2,000 mm |
| Fiber material | Polymethylmethacrylat (PMMA) |
| Jacket material | Polyethylen (PE) |
| Fiber head material | Stainless steel 1) |
| Outer diameter, fiber-optic cable connection | 2.2 mm |
| Fiber-optic cable cuttable | ✔ 2) |
| Thread size | M4 |
| Fiber-optic head design | Threaded sleeve |
| Fiber arrangement | Monofiber |
| Core structure | Ø 1.5 mm Monofiber |
| Bend radius, fibre-optic cable | 30 mm |
| Angle of dispersion < 60° | No |
| Compatibility with infrared light (1,450 nm) | No |
| Ambient operating temperature | –40 °C … +70 °C |
| Diameter/thread size from 2 mm taper | ≥ 2.6 mm |
| Length of taper | ≥ 3 mm |
| Highly flexible/elastic fibers (bend radius 1–4 mm) | No |
| Adapter end sleeves required | No |
| Angle of dispersion | 60° |
| Integrated lens | No |
| Minimal object diameter | 0.5 mm 3) |
| Included with delivery | Mounting, 4 x M4 hexagon nut, 4 x washer, FC fiber cutter (5304141) |
| Compatibility tip adapters | Yes |
| Special features | Standard, compact end sleeve, large sensing range |
