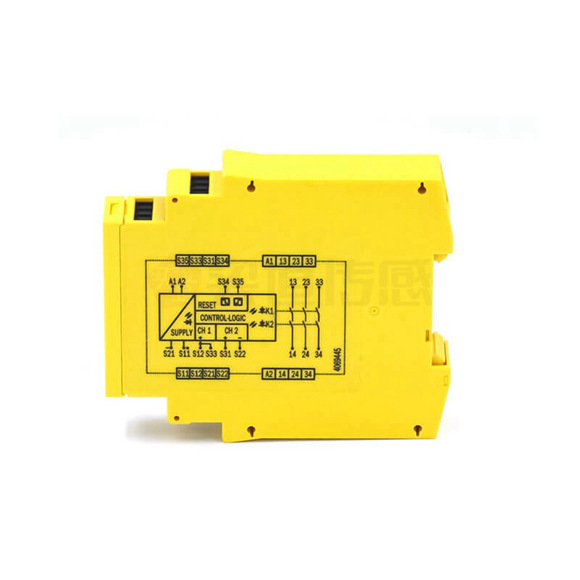

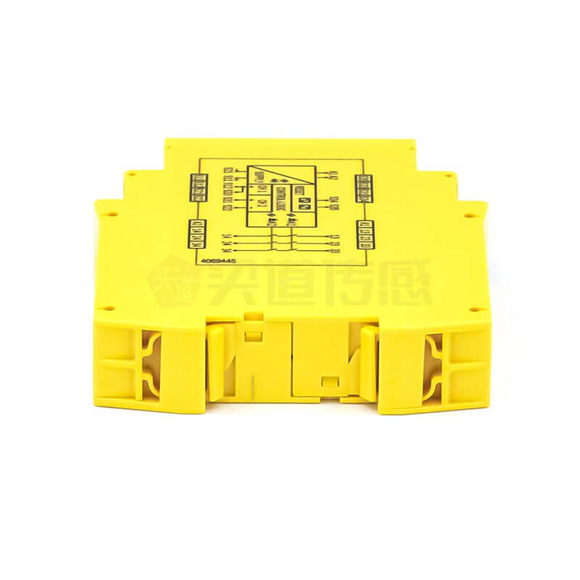

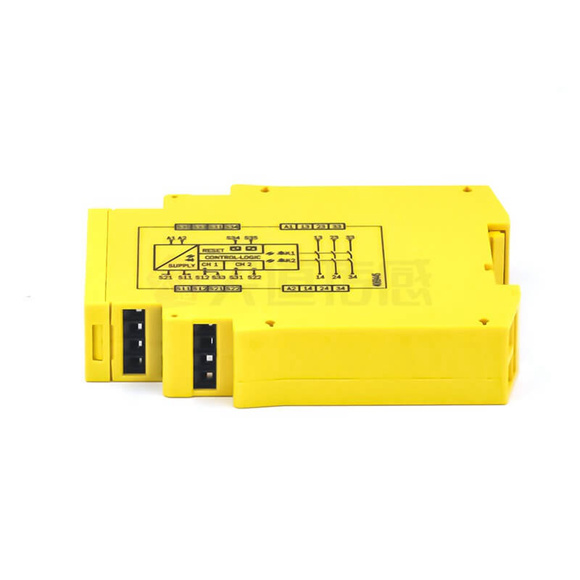

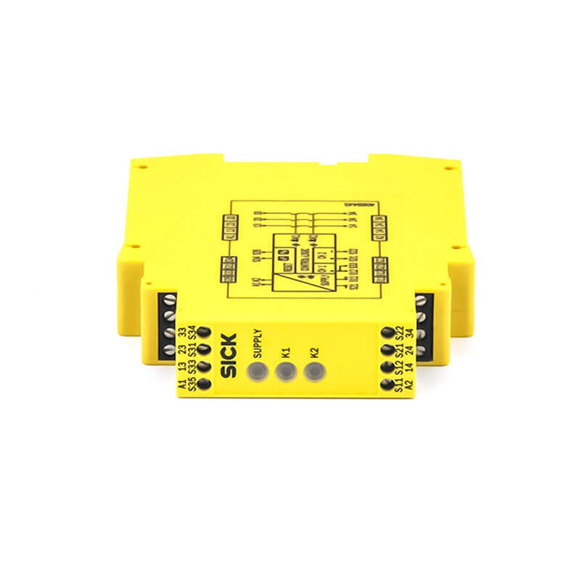

Sick Safety Relays UE48-2OS2D2/2OS3D2/3OS2D2/3OS3D2



Series#: Sick Safety Relays



Availability:
Inquire

Product Description


Series#: Sick Safety Relays



Download A Munual







Safety integrity level SIL3 (IEC 61508)


SILCL3 (EN 62061)
Category Category 4 (EN ISO 13849)
Performance level PL e (EN ISO 13849)
B10d parameter 1.26 x 106 switching cycles (AC-15, 230 V, I = 1.5 A)


5.9 x 106 switching cycles (AC-15, 230 V, I = 0.75 A)

4.35 x 105 switching cycles (DC-13, 24 V, I = 2.5 A)

1 x 107 switching cycles (DC-13, 24 V, I = 0.63 A)
PFHD (mean probability of a dangerous failure per hour) 3.0 x 10-8 (EN ISO 13849)
TM (mission time) 20 years (EN ISO 13849)
Stop category 0 (EN 60204-1)



Connection type Fixed screw terminals
Number of enabling current paths (N/O) 2, relevant for safety



Residual ripple ≤ 2.4 Vpp 1)
Power consumption (≤ 4.6 VA (AC))


(≤ 2.1 W (DC))
Overvoltage category II
Rated insulation voltage Ui 300 V AC
Rated impulse withstand voltage Uimp 4 kV
Test voltage 2 kV (50 Hz) (EN 60439-1)
Control voltage 22 V DC (≥ 17.4 V DC)
Control current 40 mA … 100 mA
Short-circuit current ≤ 300 mA, between S33 / S11 and S21
Short-circuit protection Electronic fuse
Galvanized decoupling – (between A1, A2 and S11, S21, S33)





Relevant documents
download dataSheet_UE48-2OS2D2_6024915_en.pdf
